Wastewater/Activity/PacpInspection/1.0Sep 6, 2016, 09:51 AM
01 0168A_01 0168_06092016_025144.mp4
- Date
- 09/06/2016
- W/O
- 585995
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00202
- PipeID
- P01195
- Time
- 2:51 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3579
- Sewer Name
- 01 COMPTON AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_585995_TV01012_AUG2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 01 0168A
- Downstream MH
- 01 0168
- Dir. of Survey
- Downstream
- Length Surveyed
- 90.6 ft.
- Total Length
- 90.6 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

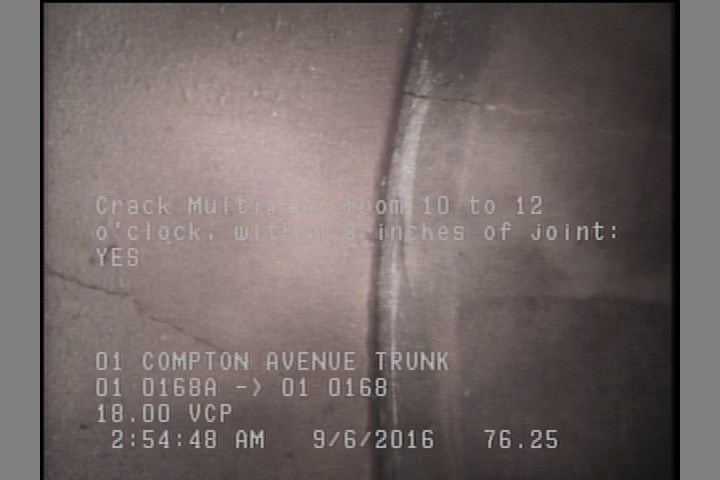

76.3 ft. - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES

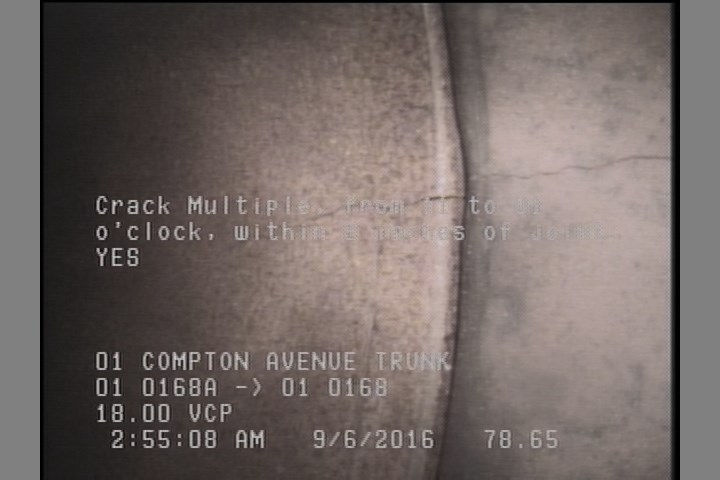

78.7 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

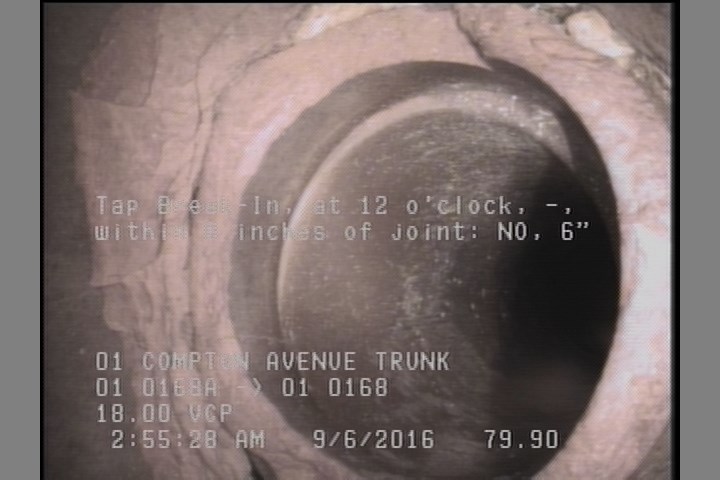

79.9 ft. - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

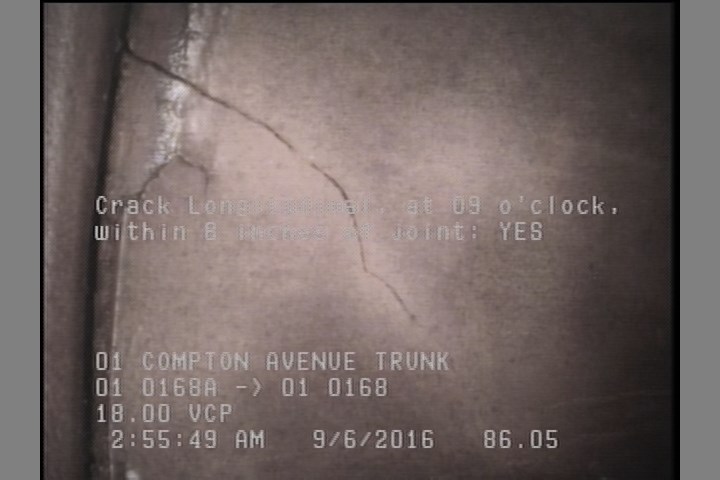

86.1 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 01 0168A |
| 76.3 | CM | — |
| 79.9 | TB | — |
| 0 | MWM | — |
| 90.6 | MGO | LATERAL AT MH 9 OCLOCK |
| 86.1 | CL | — |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 90.6 | AMH | 01 0168 |
| 9.5 | TF | — |
| 4.9 | TFC | — |
| 72.4 | TFC | — |
| 0 | MWL | — |
| 59.7 | TFC | — |
| 78.7 | CM | — |
Properties (4)
- additional_info
- SC306169
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-09-06T02:51:08-07:00
