Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 29, 2016, 09:22 AM

  • 01 0203_01 0202_29082016_022329.mp4

Date
08/29/2016
W/O
585995
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00202
PipeID
P01245
Time
2:22 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3574
Sewer Name
01 COMPTON AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
WO_585995_TV01012_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0203
Downstream MH
01 0202
Dir. of Survey
Downstream
Length Surveyed
330.7 ft.
Total Length
330.7 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
198
O&M Index
2
O&M Quick
412L
O&M Rating
130
Overall Index
3
Overall Quick
—
Overall Rating
328
Pipe schematic from manhole 01 0203 to 01 0202
MH: 01 0203MH: 01 0202downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 02030 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0.1 ft. MWM - Water Mark, 50 %of cross sectional area3.1 ft. CM - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start11.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start112.3 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"116.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"127.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6", 6"163.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"181.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"226.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"239.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"245.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"299.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"328.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish328.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish328.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"330.7 ft. AMH - Downstream Manhole, Survey Ends - 01 0202

Observation photos (4)

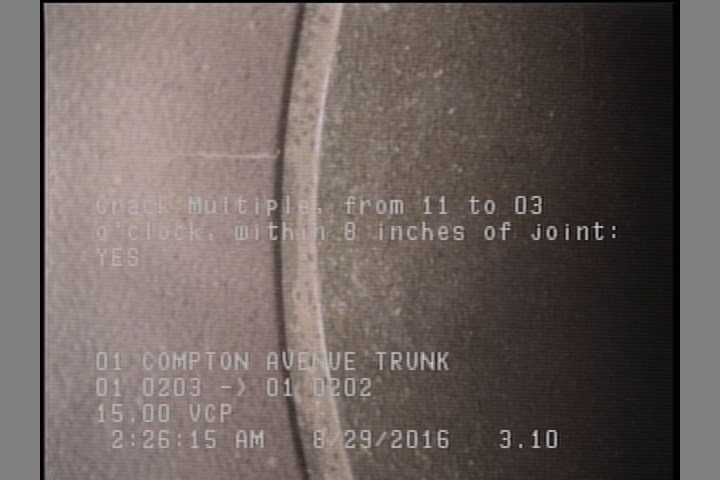

  • Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

    3.1 ft. - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

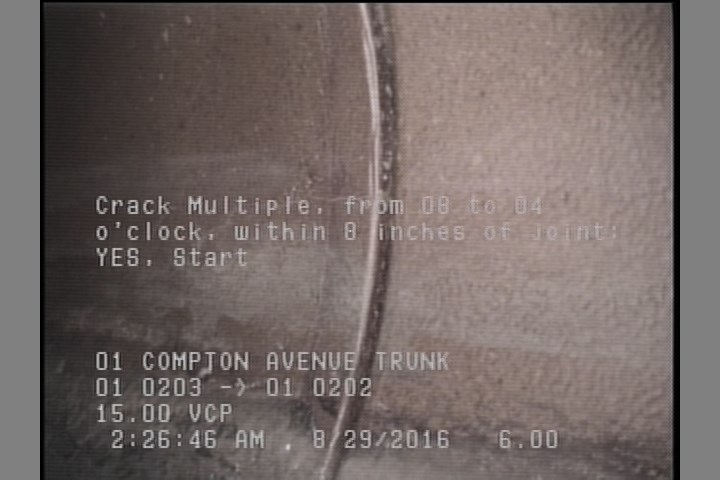

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

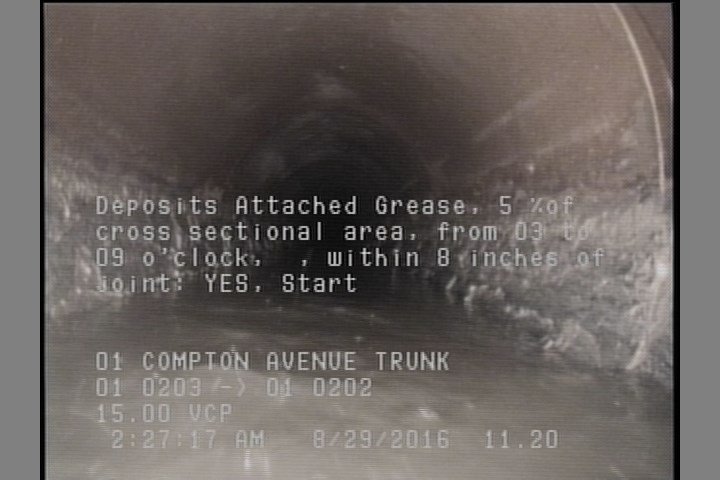

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    11.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

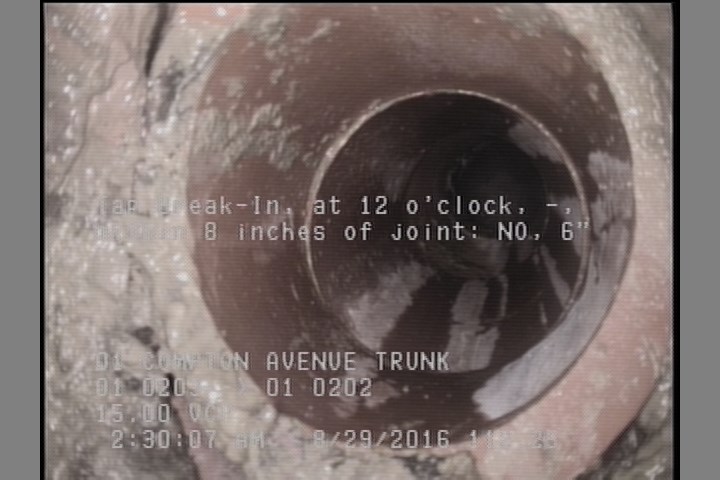

  • Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    112.3 ft. - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P01245Work order 585995

Observations (20)

DistanceCodeObservation
163.6TF—
328.6DAGS—
328.6CM—
299.4TFC—
226.2TFC—
330.7AMH01 0202
112.3TB—
328.6TF—
0MWL—
127.6TFC—
0.1MWM—
116.4TFC—
245.5TF—
11.2DAGS—
0AMH01 0203
0MGOLATERAL AT MH 9 OCLOCK
6CM—
239.9TF—
3.1CM—
181.4TF—

Properties (4)

additional_info
SC306162
custom_field_two
3
customer
LACSD
datetime
2016-08-29T02:22:53-07:00
