  • 01 0994_01 0993_12092016_233523.mp4

Date
09/12/2016
W/O
585982
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00221
PipeID
P01834
Time
11:35 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3581
Sewer Name
01 VERNON EXTENSION TRUNK
City
HUNTINGTON PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
04
Purpose
Routine Assessment
Project
WO_585982_TV01065_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 0994
Downstream MH
01 0993
Dir. of Survey
Downstream
Length Surveyed
339 ft.
Total Length
339 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 01 0994 to 01 0993
MH: 01 0994MH: 01 0993downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 09943.6 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES313.5 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES339 ft. AMH - Downstream Manhole, Survey Ends - 01 0993

Observation photos (2)

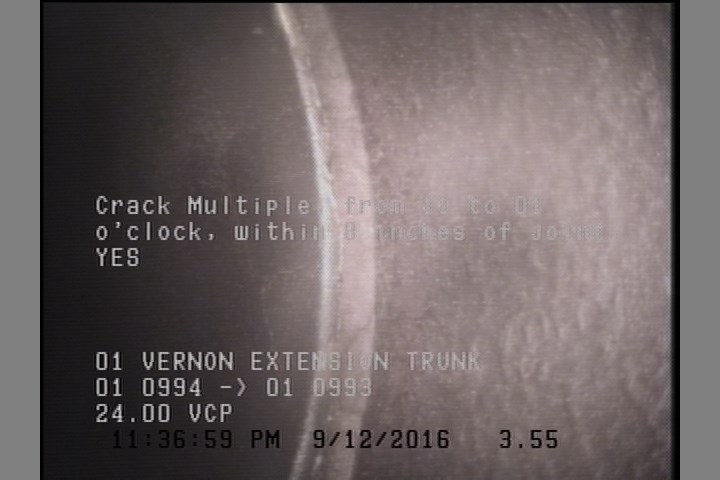

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    3.6 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

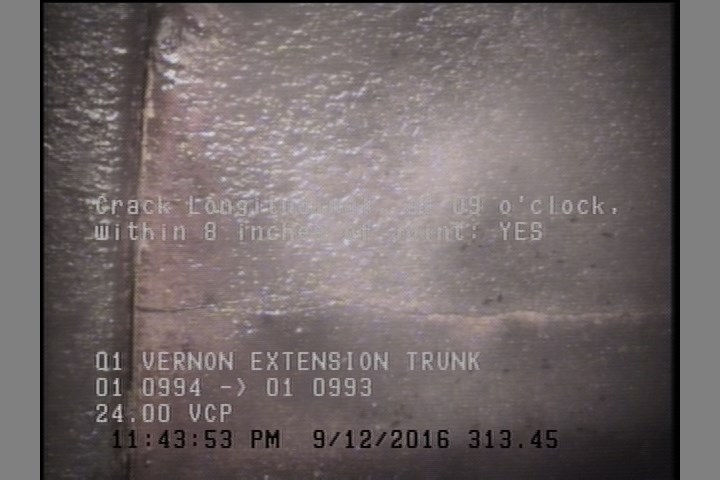

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    313.5 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P01834Work order 585982

Observations (6)

DistanceCodeObservation
0MWM—
339AMH01 0993
0MWL—
313.5CL—
0AMH01 0994
3.6CM—

Properties (4)

additional_info
SC306174
custom_field_two
4
customer
LACSD
datetime
2016-09-12T23:35:14-07:00
