Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 7, 2016, 05:58 AM

  • 01 1007_01 1006_06092016_225822.mp4

Date
09/06/2016
W/O
585982
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00221
PipeID
P01853
Time
10:58 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3580
Sewer Name
01 VERNON EXTENSION TRUNK
City
VERNON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
04
Purpose
Routine Assessment
Project
WO_585982_TV01065_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 1007
Downstream MH
01 1006
Dir. of Survey
Downstream
Length Surveyed
321.4 ft.
Total Length
321.4 ft.
Structural Index
2
Structural Quick
2I00
Structural Rating
98
O&M Index
2
O&M Quick
2B00
O&M Rating
32
Overall Index
2
Overall Quick
—
Overall Rating
130
Pipe schematic from manhole 01 1007 to 01 1006
MH: 01 1007MH: 01 1006downstream0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 100712.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"15.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"20 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start24.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start72.9 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish106.5 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"113.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"115.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"213.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"216 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"219.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish236.4 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO262.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start272.8 ft. TBC - Tap Break-In Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"280.2 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"301.5 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start310.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish313.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"316.8 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Finish316.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"321.4 ft. AMH - Downstream Manhole, Survey Ends - 01 1006

Observation photos (5)

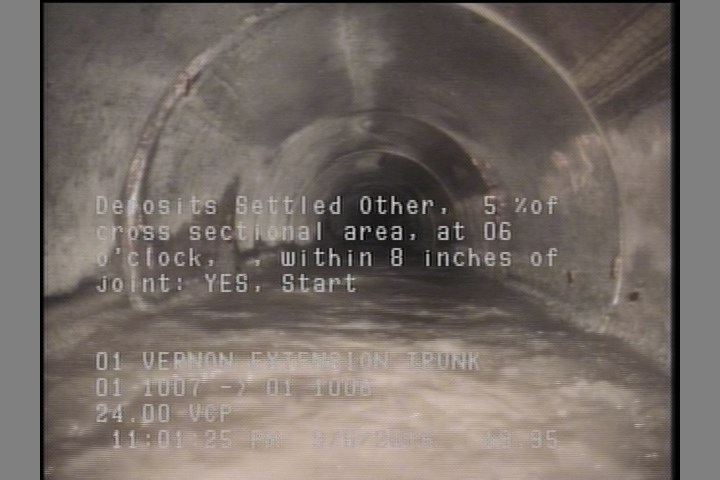

  • Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    20 ft. - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

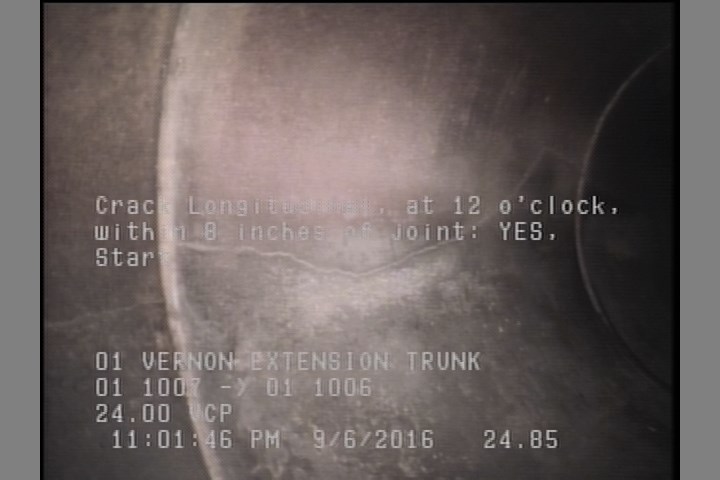

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    24.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

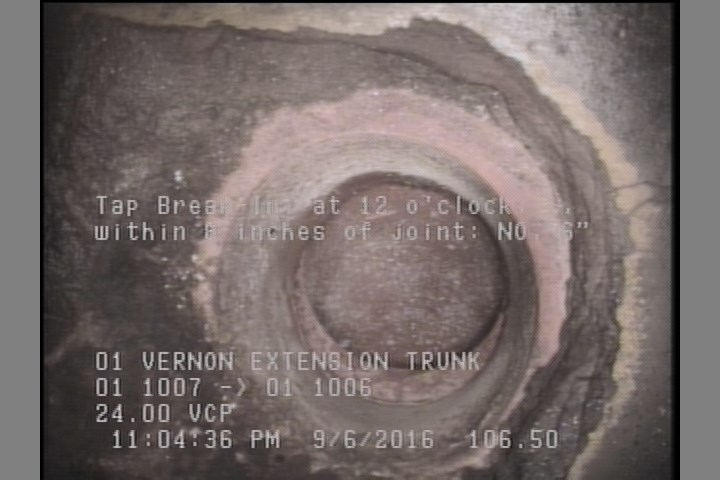

  • Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    106.5 ft. - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

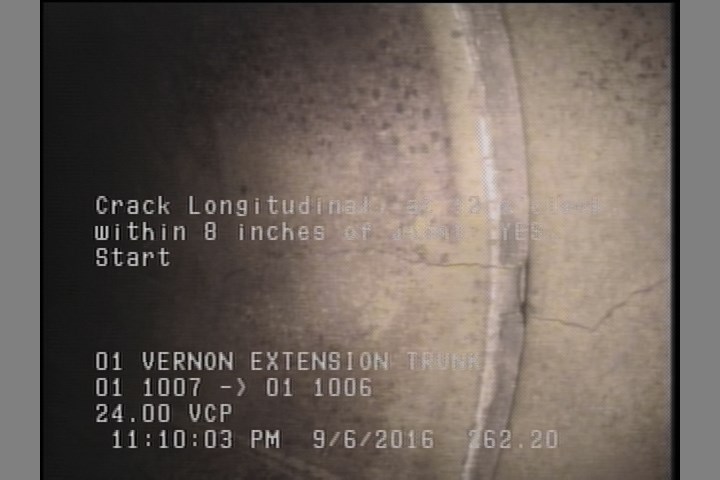

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    262.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

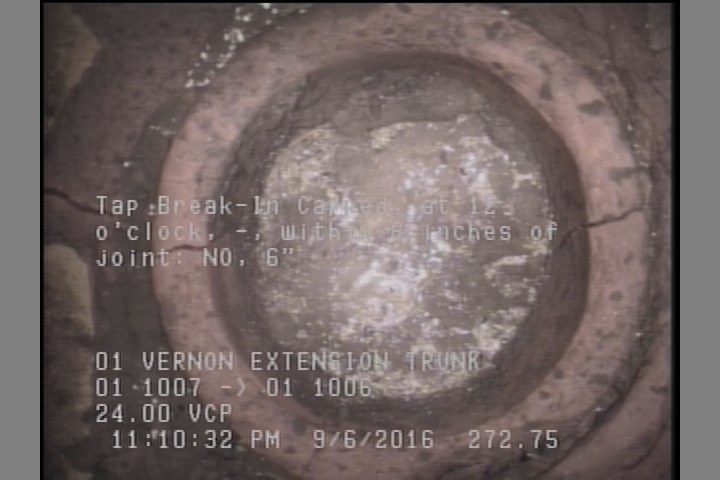

  • Tap Break-In Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    272.8 ft. - Tap Break-In Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P01853Work order 585982

Observations (25)

DistanceCodeObservation
313.6TFC—
0MGOLATERAL AT MH 9 OCLOCK
219.4CL—
15.6TFC—
236.4DSZ—
20DSZ—
113.3TFC—
106.5TB—
72.9DSZ—
115.3TFC—
321.4AMH01 1006
0MWL—
310.7CL—
316.8DSZ—
213.7TF—
280.2TB—
0MWM—
216TFC—
12.9TFC—
262.2CL—
301.5DSZ—
24.9CL—
272.8TBC—
316.8TFC—
0AMH01 1007

Properties (4)

additional_info
SC306170
custom_field_two
3
customer
LACSD
datetime
2016-09-06T22:58:12-07:00
