Wastewater/Activity/PacpInspection/1.0Jul 27, 2016, 10:02 AM
02 1837_02 1424_20160727_045740.mp4
- Date
- 07/27/2016
- W/O
- 568720
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00349
- PipeID
- P02996
- Time
- 3:02 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3664
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- COMMERCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_568720_TV02317_JUNE2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Width
- 60 in.
- Upstream MH
- 02 1837
- Downstream MH
- 02 1424
- Dir. of Survey
- Downstream
- Length Surveyed
- 985 ft.
- Total Length
- 985 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

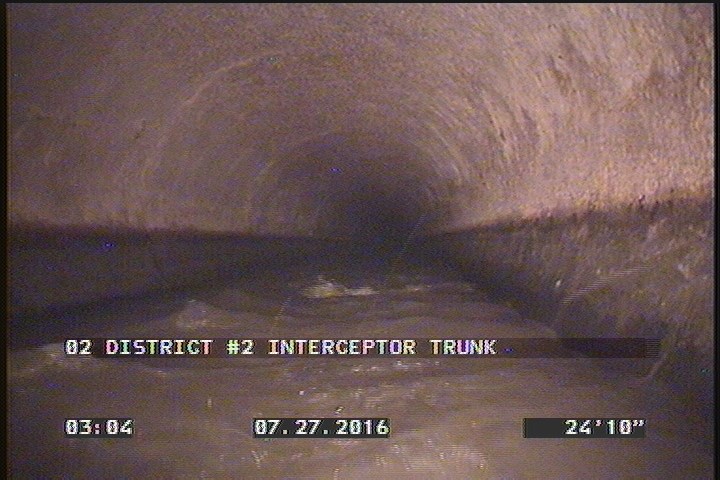

24.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 02 1837 |
| 0 | MGO | CONNECTION AT THE MH 9 O'CLOCK ACTIVE |
| 985 | AMH | 02 1424 |
| 978.2 | DAGS | — |
| 2 | MGO | MAG.H.C. START 90% |
| 0 | MWM | — |
| 985 | MGO | CONNECTION AT THE MH 9 O'CLOCK ACTIVE |
| 980.1 | MGO | MAG.H.C. FINISH |
| 24.9 | DAGS | — |
Properties (4)
- additional_info
- SC305543
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-07-27T03:02:00-07:00
