Wastewater/Activity/PacpInspection/1.0Aug 9, 2017, 05:42 PM
H 0296_H 0295_892017_105001.mp4
- Date
- 08/09/2017
- W/O
- 0646246
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00174
- PipeID
- P10751
- Time
- 10:42 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7487
- Sewer Name
- H JOINT OUTFALL H - UNIT 3
- City
- PICO RIVERA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 21
- Purpose
- Capital Improvement Program Assesment
- Project
- 20170809SHO_JOINT_OUTFALL_H_UNIT_3
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Upstream MH
- H 0295
- Downstream MH
- H 0296
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (3)

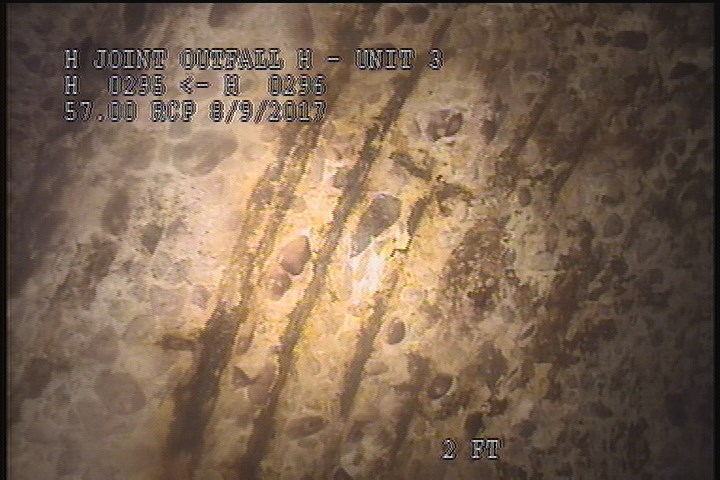

2 ft. - Surface Reinforcement Corroded, from 11 to 01 o'clock, within 8 inches of joint: NO

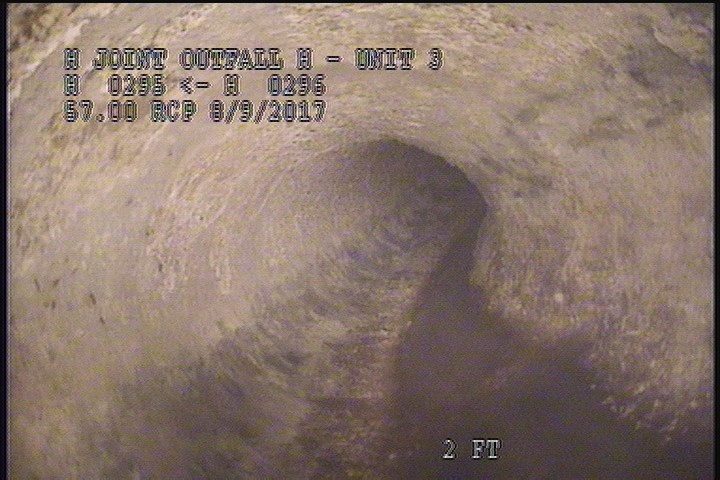

2 ft. - Alignment Right, 30 %

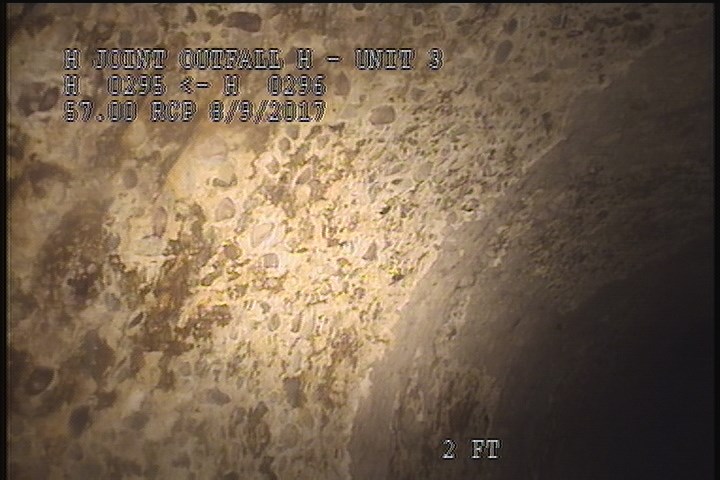

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO - THROUGHOUT THE REACH
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | SRC | — |
| 2 | LR | — |
| 0 | MWL | DRY LINE |
| 0 | AMH | 1050 |
| 2 | MSA | ZOOMED IN U/S TOWARDS H 0296 |
| 2 | SAP | THROUGHOUT THE REACH |
Properties (5)
- additional_info
- CAN'T TRACTOR DUE TO DEBRIS, ZOOMING AS FAR AS WE CAN
- custom_field_three
- AGGREGATE THROUGHOUT & CORRODED REBAR
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-08-09T10:42:56-07:00
