Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 17, 2018, 06:52 AM

  • 05 2420_05 2419 _17082018_001045.mp4

Date
08/16/2018
W/O
718209
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00458
PipeID
P07532
Time
11:52 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5905
Sewer Name
05 INGLEWOOD DIVERSION TRUNK
City
INGLEWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
04
Purpose
Routine Assessment
Project
WO_718209_TV05039_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
05 2420
Downstream MH
05 2419
Dir. of Survey
Downstream
Length Surveyed
362.6 ft.
Total Length
362.6 ft.
Structural Index
3
Structural Quick
413M
Structural Rating
208
O&M Index
2
O&M Quick
413A
O&M Rating
437
Overall Index
2
Overall Quick
—
Overall Rating
645
Pipe schematic from manhole 05 2420 to 05 2419
MH: 05 2420MH: 05 2419downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 24200 ft. MWL - Water Level, 50 %of cross sectional area0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 4 AND 8 O'CLOCK2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start7.9 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS23.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start61 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish81.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS124.9 ft. MWL - Water Level, 15 %of cross sectional area130.3 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 8"182.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 8"234.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 8"284.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 8"357.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES362.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish362.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish362.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK362.6 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish362.6 ft. AMH - Downstream Manhole, Survey Ends - 05 2419362.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (4)

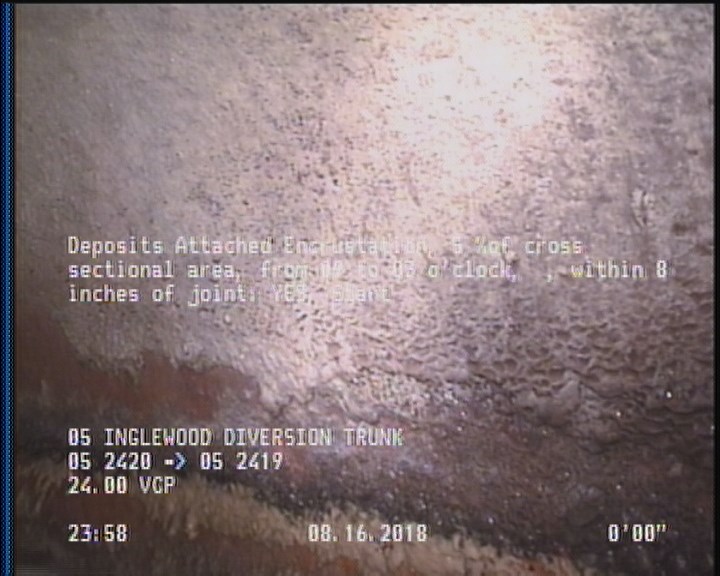

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

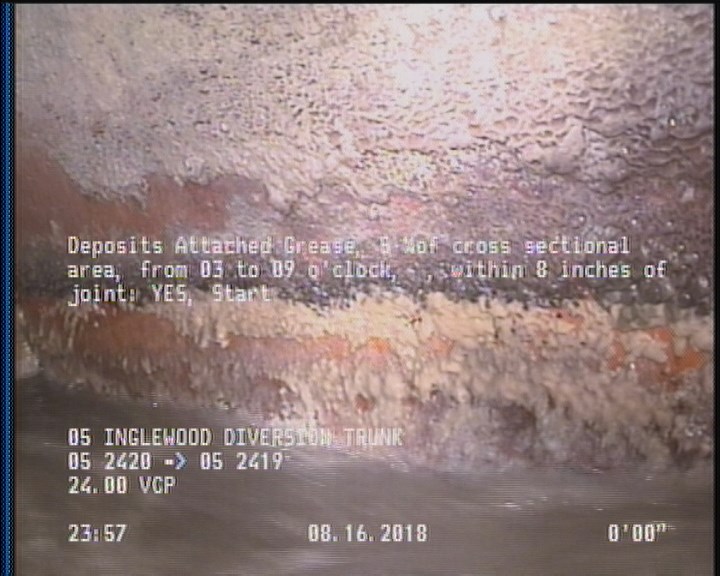

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

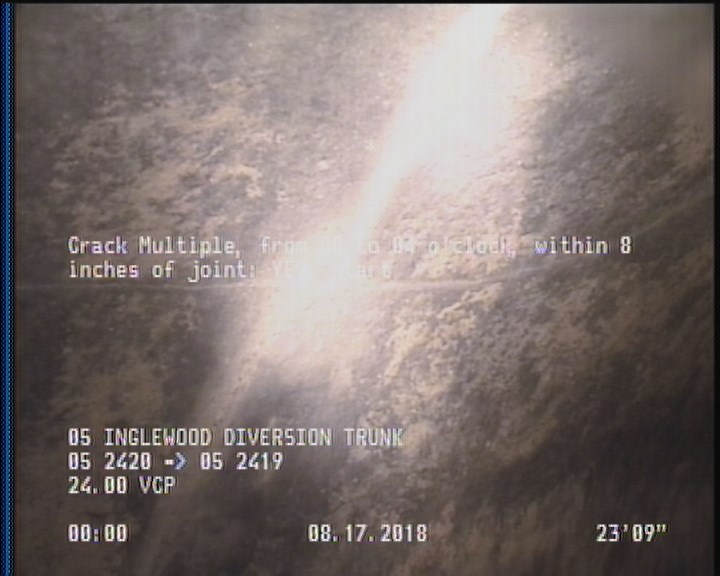

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    23.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

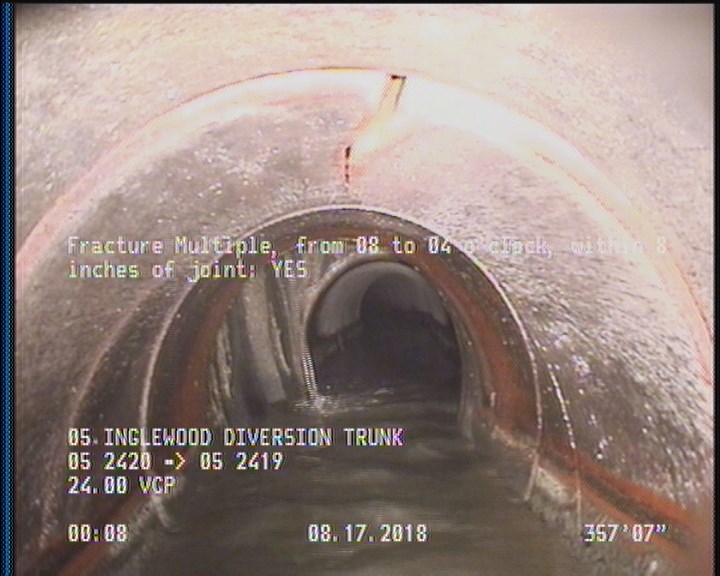

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    357.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P07532Work order 718209

Observations (22)

DistanceCodeObservation
7.9DSZDEBRIS
0AMH05 2420
362.6DSZ—
362.6CM—
284.4TFA—
23.8CM—
362.6MGOACTIVE CONNECTION AT MH 9 O'CLOCK
234.4TFA—
182.9TFA—
362.6DAE—
2DAE—
362.6AMH05 2419
61DSZ—
130.3TFA—
0MWL—
0MWM—
357.6FM—
0MGOACTIVE CONNECTION AT MH 4 AND 8 O'CLOCK
81.2DSZDEBRIS
362.6DAGS—
124.9MWL—
2DAGS—

Properties (5)

additional_info
SC364775
custom_field_two
3
customer
LACSD
datetime
2018-08-16T23:52:18-07:00
year_laid
33163
