Wastewater/Activity/PacpInspection/1.0Aug 16, 2018, 09:57 AM
05 0783_05 0782 _16082018_030910.mp4
- Date
- 08/16/2018
- W/O
- 717874
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00553
- PipeID
- P06011
- Time
- 2:57 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5903
- Sewer Name
- 05 MANCHESTER-VERMONT DIVERSION EXTENSION TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_717874_TV05202_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0783
- Downstream MH
- 05 0782
- Dir. of Survey
- Downstream
- Length Surveyed
- 408.3 ft.
- Total Length
- 408.3 ft.
- Structural Index
- 4
- Structural Quick
- 4O33
- Structural Rating
- 329
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 162
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 491
Observation photos (3)

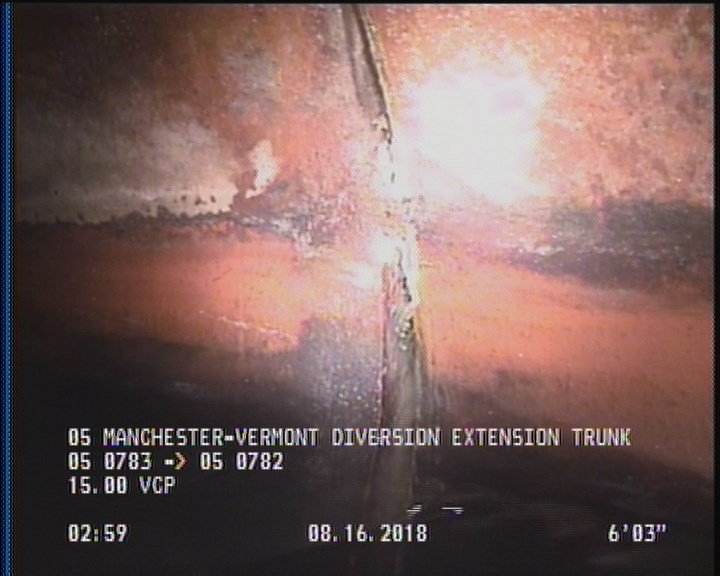

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

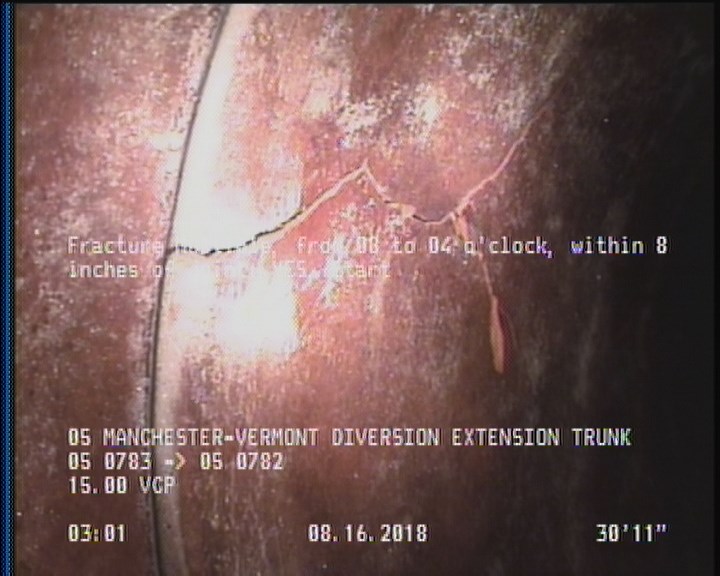

6.3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

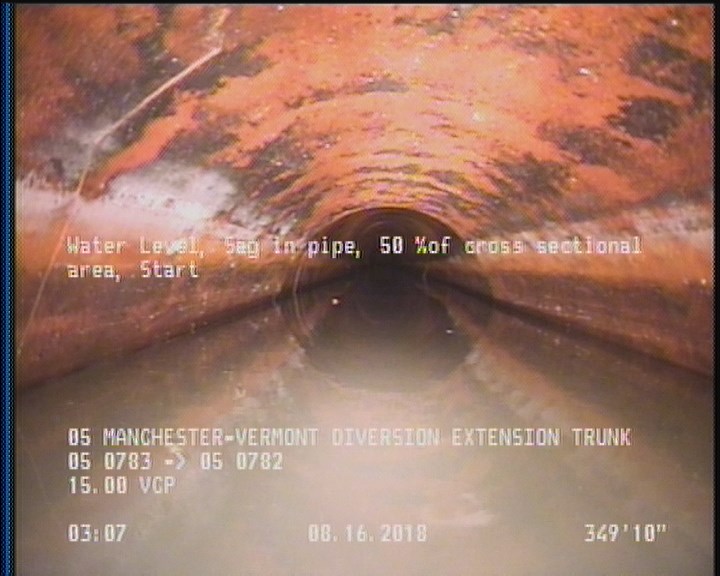

349.8 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 365.2 | MWLS | — |
| 407.9 | DAGS | — |
| 0 | AMH | 05 0783 |
| 349.8 | MWLS | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 6.3 | FM | — |
| 408.3 | AMH | 05 0782 |
| 405.1 | FM | — |
Properties (4)
- additional_info
- SC364773
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-16T02:57:58-07:00
