Date
08/13/2018
W/O
717851
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00019
PipeID
P00543
Time
2:24 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5982
Sewer Name
08 SEPULVEDA-FIGUEROA STREET CONNECTING TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
13
Purpose
Routine Assessment
Project
WO_717851_TV08165_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0485
Downstream MH
08 0484
Dir. of Survey
Downstream
Length Surveyed
222.1 ft.
Total Length
222.1 ft.
Structural Index
3
Structural Quick
423G
Structural Rating
134
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
134
Pipe schematic from manhole 08 0485 to 08 0484
MH: 08 0485MH: 08 0484downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 04850 ft. MWM - Water Mark, 10 %of cross sectional area2.1 ft. MGO - General Observation - point repair4.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES8.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start161.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"198.3 ft. FM - Fracture Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES214.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"220 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish222.1 ft. AMH - Downstream Manhole, Survey Ends - 08 0484

Observation photos (4)

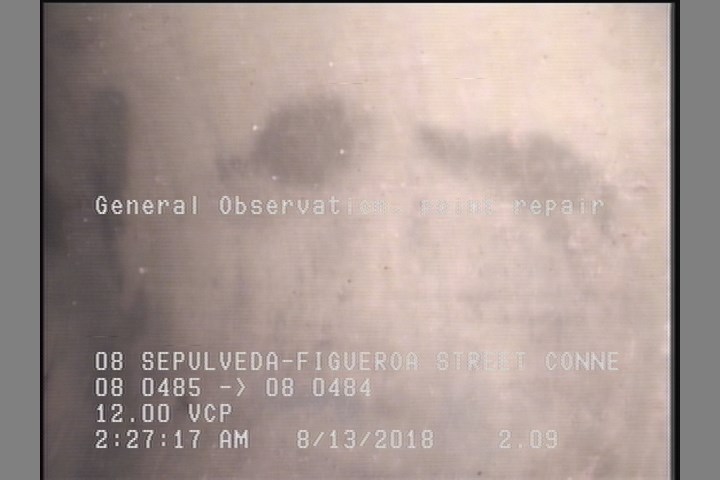

  • General Observation - point repair

    2.1 ft. - General Observation - point repair

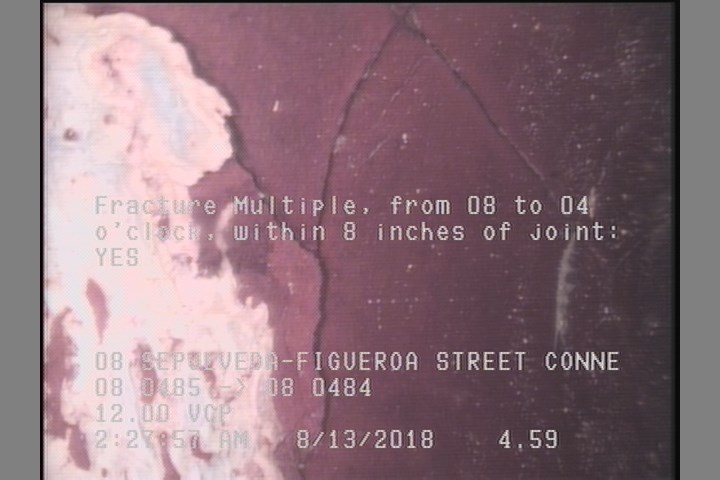

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    4.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

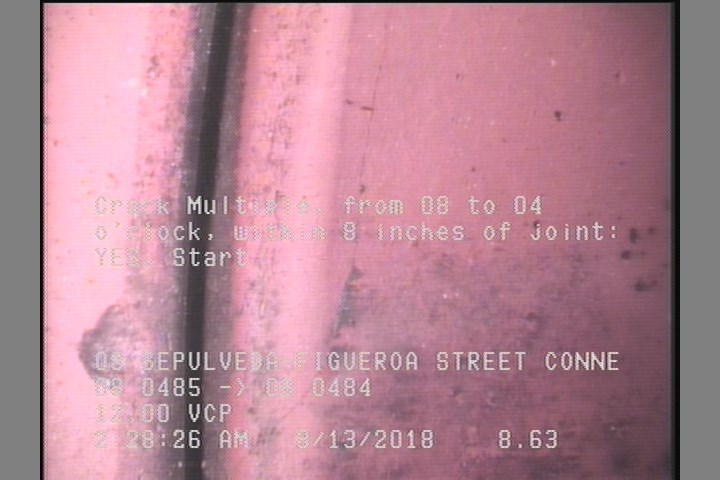

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

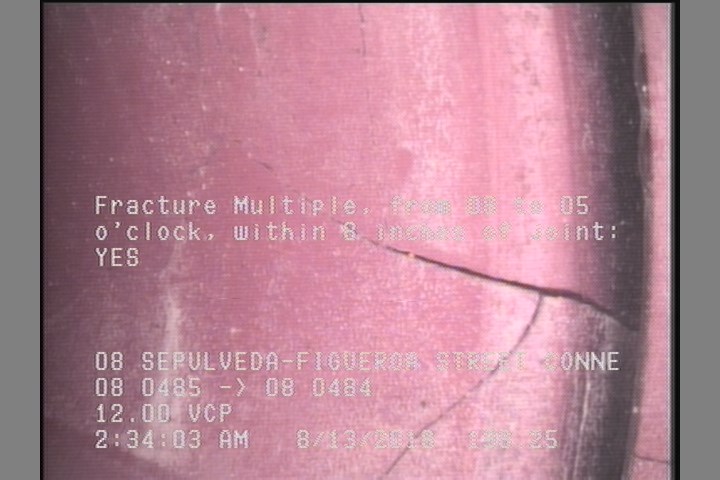

  • Fracture Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES

    198.3 ft. - Fracture Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES

All inspections of P00543Work order 717851

Observations (11)

DistanceCodeObservation
161.9TFC—
222.1AMH08 0484
2.1MGOpoint repair
220CM—
198.3FM—
4.6FM—
8.6CM—
214.5TFC—
0MWL—
0AMH08 0485
0MWM—

Properties (4)

additional_info
SC364746
custom_field_two
3
customer
LACSD
datetime
2018-08-13T02:24:44-07:00
