Wastewater/Activity/PacpInspection/1.0Aug 13, 2018, 10:23 AM
22 0945_22 0944 _13082018_033636.mp4
- Date
- 08/13/2018
- W/O
- 717970
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00790
- PipeID
- P17315
- Time
- 3:23 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5899
- Sewer Name
- 22 BASE LINE TRUNK
- City
- AZUSA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_717970_TV22170_AUG2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 22 0945
- Downstream MH
- 22 0944
- Dir. of Survey
- Downstream
- Length Surveyed
- 395.1 ft.
- Total Length
- 395.1 ft.
- Structural Index
- 3
- Structural Quick
- 3O2O
- Structural Rating
- 390
- O&M Index
- 2
- O&M Quick
- 412O
- O&M Rating
- 160
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 550
Observation photos (3)

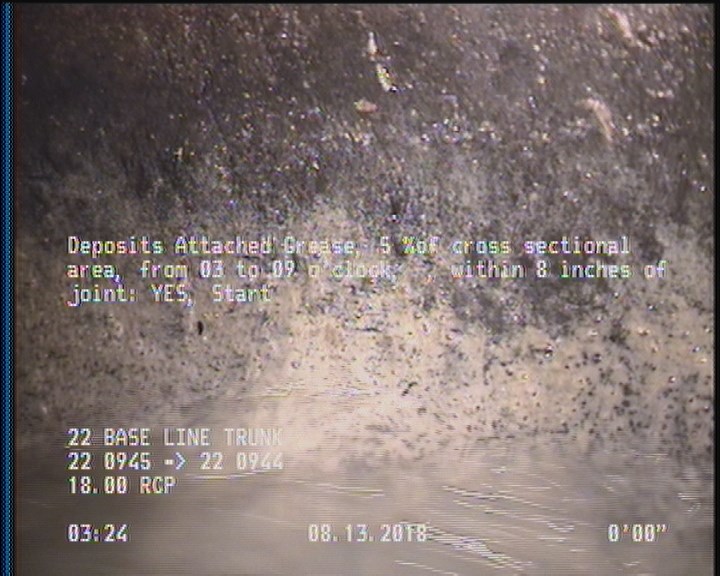

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

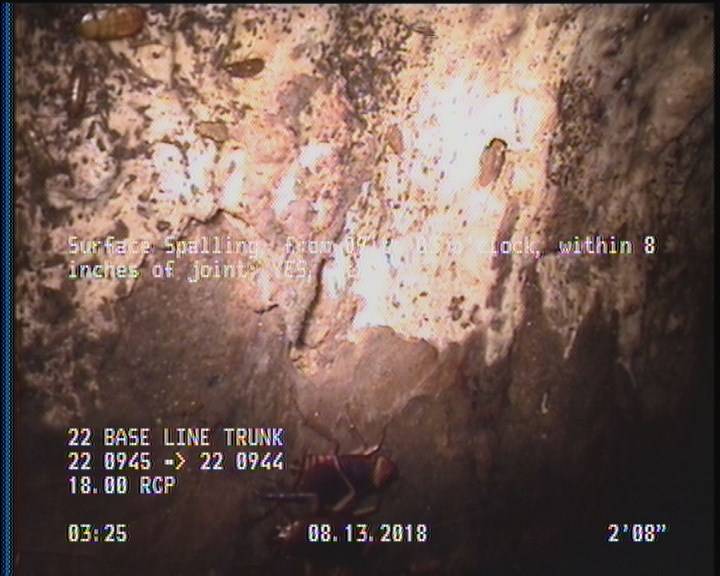

2.7 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

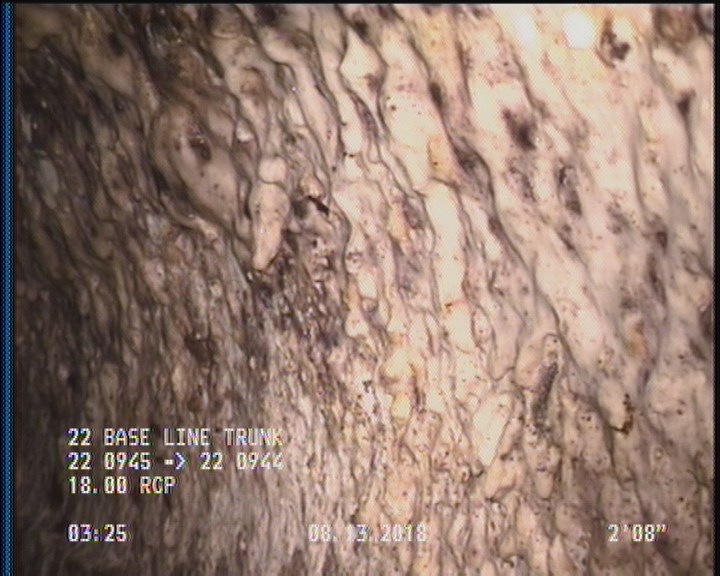

2.7 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 393.2 | SAP | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 2.7 | SSS | — |
| 0 | MWM | — |
| 2.7 | SAP | — |
| 393.2 | SSS | — |
| 393.2 | DAGS | — |
| 0 | AMH | 22 0945 |
| 395.1 | AMH | 22 0944 |
Properties (4)
- additional_info
- SC364768
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-13T03:23:13-07:00
