Wastewater/Activity/PacpInspection/1.0Aug 15, 2018, 09:41 AM
22 0965_22 0964_15082018_024805.mp4
- Date
- 08/15/2018
- W/O
- 717737
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00790
- PipeID
- P17335
- Time
- 2:41 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5901
- Sewer Name
- 22 BASE LINE TRUNK
- City
- GLENDOR
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_717737_TV22002_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0965
- Downstream MH
- 22 0964
- Dir. of Survey
- Downstream
- Length Surveyed
- 71.9 ft.
- Total Length
- 71.9 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 42
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 28
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 70
Observation photos (2)

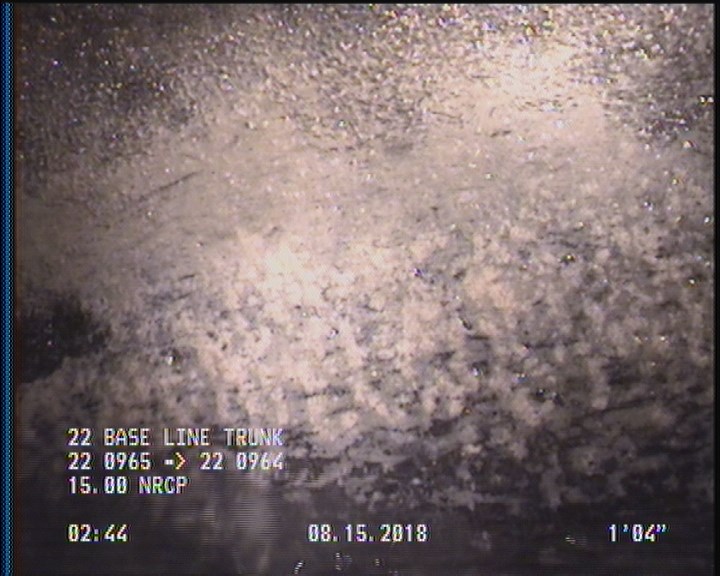

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

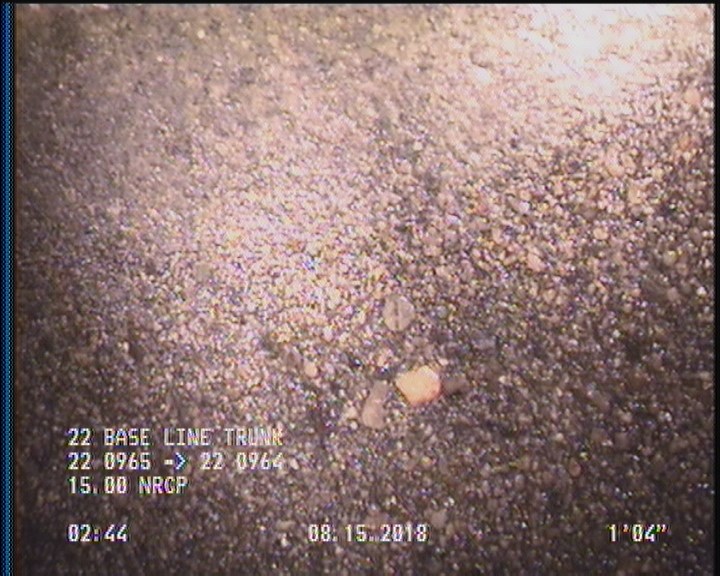

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 70.9 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 22 0965 |
| 2 | SAV | — |
| 3.8 | MGO | MAG COATING THROUGHOUT 60% |
| 71.9 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 71.9 | AMH | 22 0964 |
| 70.9 | SAV | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 70.9 | DAGS | — |
Properties (4)
- additional_info
- SC364770
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-08-15T02:41:31-07:00
