Wastewater/Activity/PacpInspection/1.0Aug 15, 2018, 07:19 AM
22 0970_22 0969_15082018_003241.mp4
- Date
- 08/15/2018
- W/O
- 717737
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00790
- PipeID
- P17340
- Time
- 12:19 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5901
- Sewer Name
- 22 BASE LINE TRUNK
- City
- GLENDORA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_717737_TV22002_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0970
- Downstream MH
- 22 0969
- Dir. of Survey
- Downstream
- Length Surveyed
- 325.2 ft.
- Total Length
- 325.2 ft.
- Structural Index
- 3
- Structural Quick
- 3L2L
- Structural Rating
- 320
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 128
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 448
Observation photos (3)

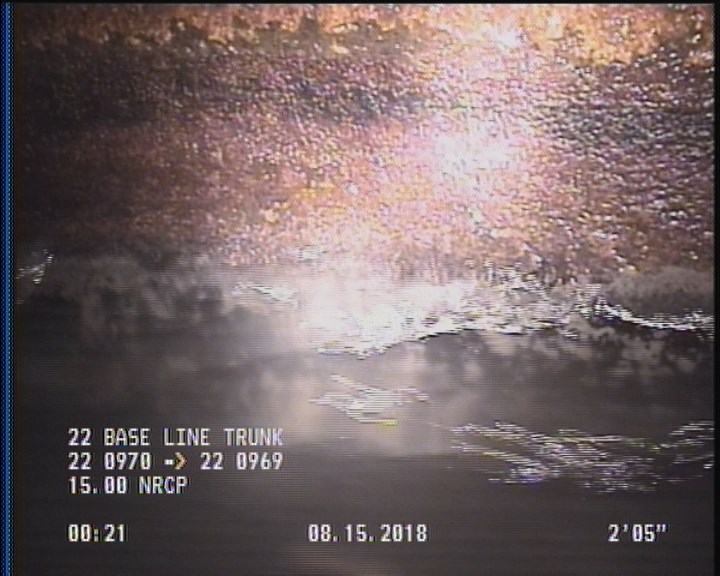

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
2.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

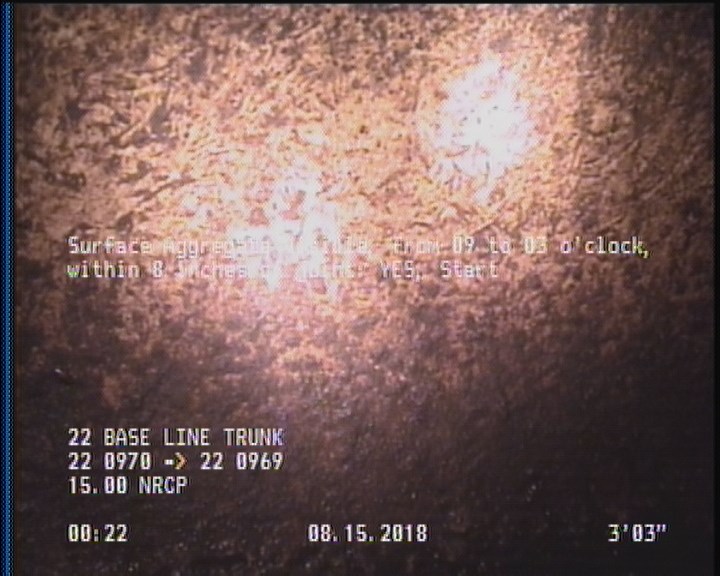

3.3 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 296.6 | TFC | — |
| 323.9 | DAGS | — |
| 244.2 | TFC | — |
| 325.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 323.9 | SSS | — |
| 200.4 | TFC | — |
| 0 | AMH | 22 0970 |
| 47.4 | TFC | — |
| 325.2 | AMH | 22 0969 |
| 95.4 | TFC | — |
| 323.9 | MGO | COCKROACHES IN MANHOLE |
| 3.3 | SAV | — |
| 0 | MGO | MAG COATING THROUGHOUT 60% |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 2.4 | SSS | — |
| 2 | DAGS | — |
| 323.9 | SAV | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC364770
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-08-15T00:19:35-07:00
