Wastewater/Activity/PacpInspection/1.0Sep 12, 2018, 06:00 PM
D 0067_D 0066_9122018_121307.mp4
- Date
- 09/12/2018
- W/O
- 0726352
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00154
- PipeID
- P09967
- Time
- 11:00 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7807
- Sewer Name
- D JOINT OUTFALL D - UNIT 4
- City
- HAWTHORNE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 20
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180906DF_JOINT_OUTFALL_D_UNIT_4
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- D 0067
- Downstream MH
- D 0066
- Dir. of Survey
- Downstream
- Length Surveyed
- 472 ft.
- Total Length
- 472 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

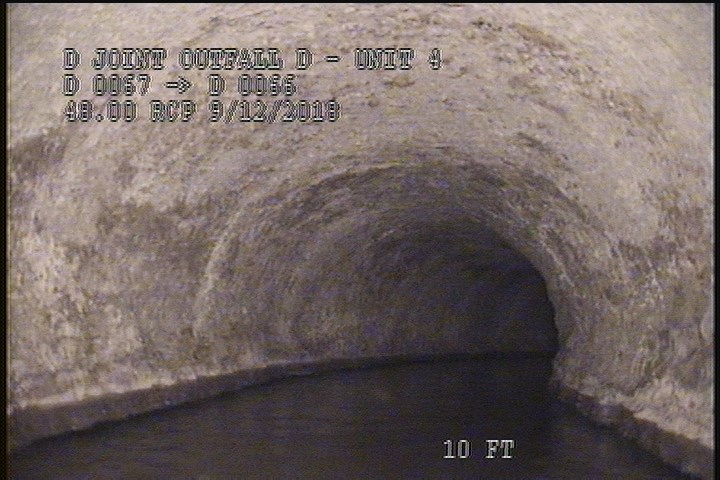

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG
2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

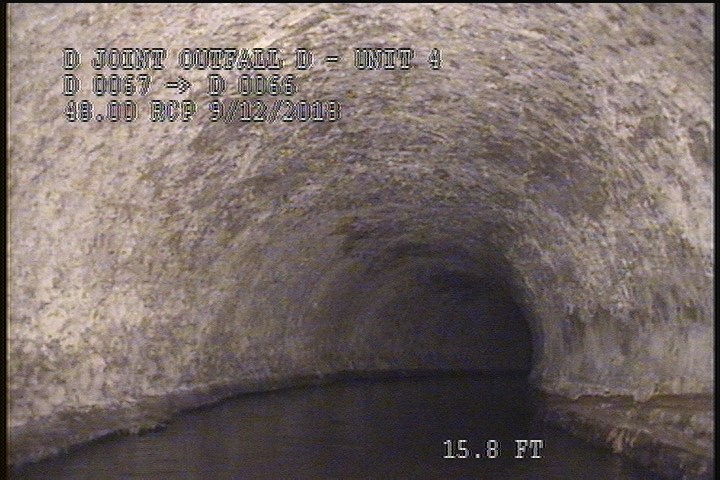

15.8 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

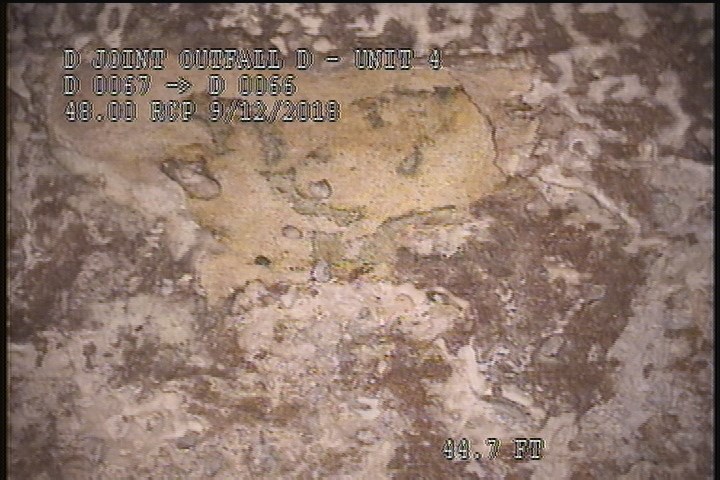

44.7 ft. - General Photograph
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 471.2 | SAV | — |
| 471.2 | SZ | 70% MAG |
| 472 | AMH | 12:45 PM |
| 0 | AMH | 11:02 AM |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 2 | SZ | 70% MAG |
| 2 | SAV | — |
| 471.2 | SRV | — |
| 44.7 | MGP | — |
| 472 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 132.7 | MGP | — |
| 0 | MWL | — |
| 472 | MGO | Peeling & Flaking Throughout The Reach |
| 0 | MWM | — |
| 15.8 | SRV | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-12T11:00:07-07:00
