Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 10, 2018, 03:23 PM

  • D 0078_D 0077_9102018_093422.mp4

  • D 0078_D 0077_9102018_094150.mp4

Date
09/10/2018
W/O
0726351
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00154
PipeID
P09978
Time
8:23 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7805
Sewer Name
D JOINT OUTFALL D - UNIT 4
City
HAWTHORNE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20180906DF_JOINT_OUTFALL_D_UNIT_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
D 0078
Downstream MH
D 0077
Dir. of Survey
Downstream
Length Surveyed
363.1 ft.
Total Length
363.1 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole D 0078 to D 0077
MH: D 0078MH: D 0077downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 8:28 AM0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start28.4 ft. SRVC - Surface Reinforcement Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start90.1 ft. MGP - General Photograph162.2 ft. MGP - General Photograph - PEELING AND FLAKING234.8 ft. MGP - General Photograph277.4 ft. MGP - General Photograph355.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish355.9 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 85% MAG355.9 ft. SRVC - Surface Reinforcement Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish361.9 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach362 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active362.1 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)363.1 ft. AMH - Downstream Manhole, Survey Ends - 10:02 AM

Observation photos (7)

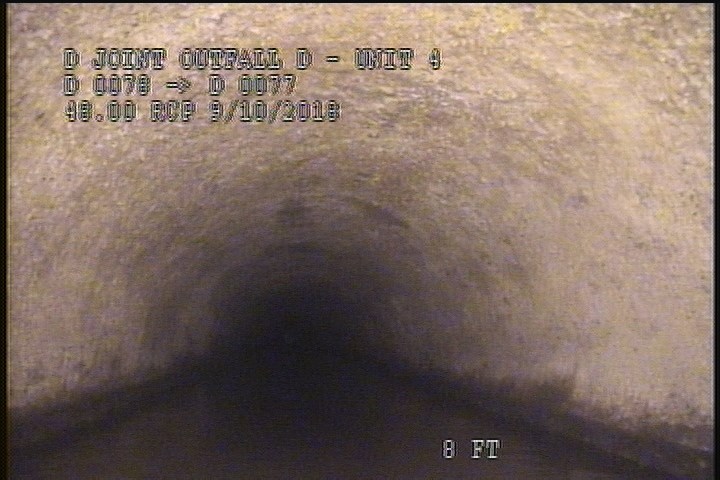

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

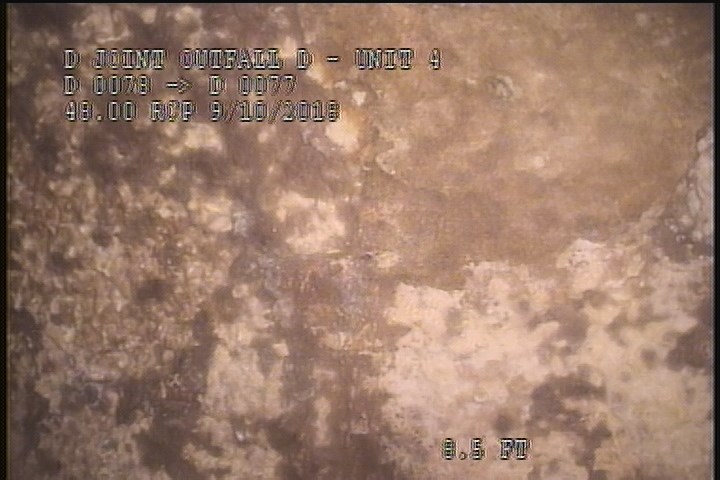

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

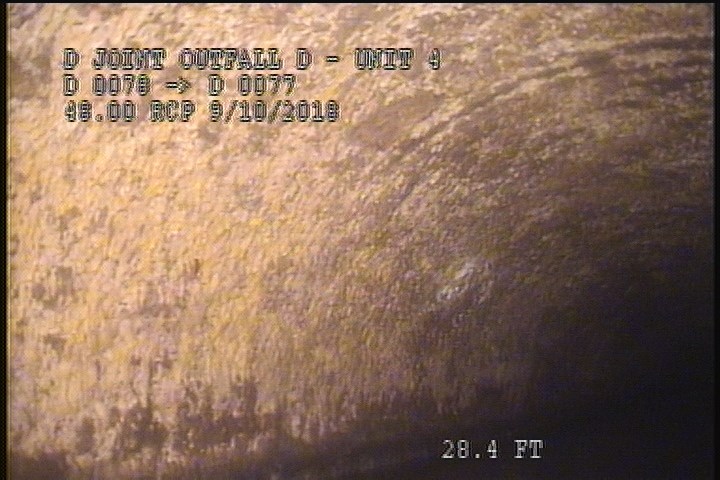

  • Surface Reinforcement Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    28.4 ft. - Surface Reinforcement Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

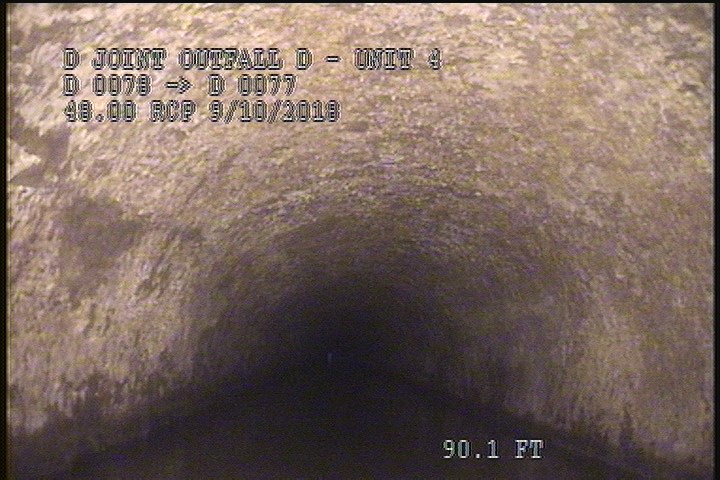

  • General Photograph

    90.1 ft. - General Photograph

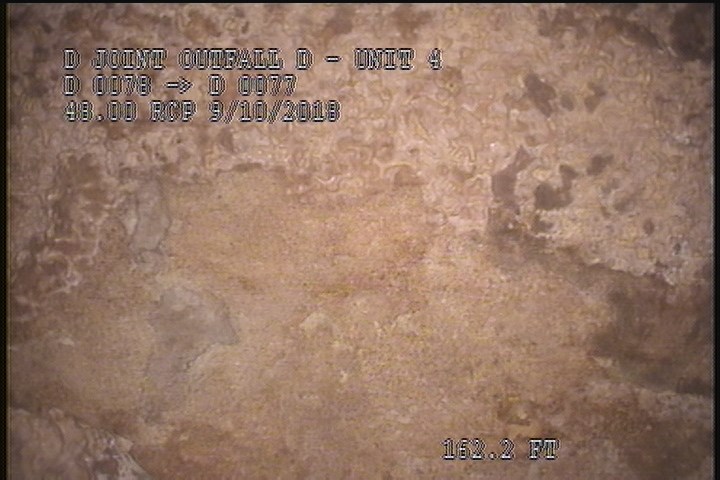

  • General Photograph - PEELING AND FLAKING

    162.2 ft. - General Photograph - PEELING AND FLAKING

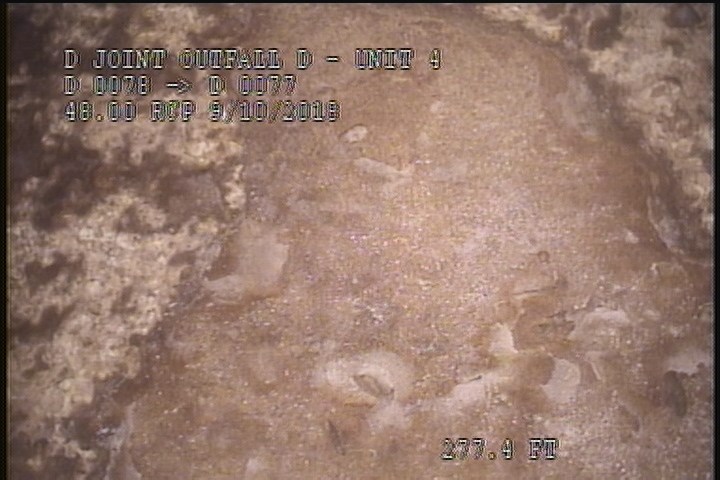

  • General Photograph

    234.8 ft. - General Photograph

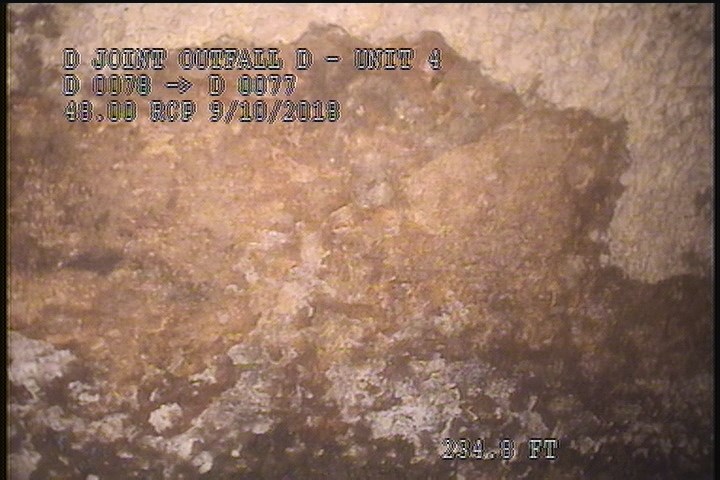

  • General Photograph

    277.4 ft. - General Photograph

All inspections of P09978Work order 0726351

Observations (17)

DistanceCodeObservation
362.1MGOGREASE THROUGHOUT THE REACH (5%)
362MGOConn. @ Mh, 3 O' Clock. Active
355.9SAV—
277.4MGP—
234.8MGP—
0MWM—
162.2MGPPEELING AND FLAKING
355.9SZ85% MAG
2SZ85% MAG
28.4SRVC—
355.9SRVC—
361.9MGOPeeling & Flaking Throughout The Reach
90.1MGP—
0AMH8:28 AM
2SAV—
363.1AMH10:02 AM
0MWL—

Properties (4)

additional_info
ON SCREEN TAPE NUMBER IS NOT CORRECT. CORREC TAPE NUMBER IS G7805
custom_field_two
3
customer
LACSD
datetime
2018-09-10T08:23:48-07:00
