Wastewater/Activity/PacpInspection/1.0Sep 6, 2018, 08:07 PM
D 0079_D 0078_962018_130957.mp4
- Date
- 09/06/2018
- W/O
- 0726351
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00154
- PipeID
- P09979
- Time
- 1:07 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7802
- Sewer Name
- D JOINT OUTFALL D - UNIT 4
- City
- HAWTHORNE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 20
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180906DF_JOINT_OUTFALL_D_UNIT_4
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- D 0079
- Downstream MH
- D 0078
- Dir. of Survey
- Downstream
- Length Surveyed
- 355.8 ft.
- Total Length
- 355.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (4)

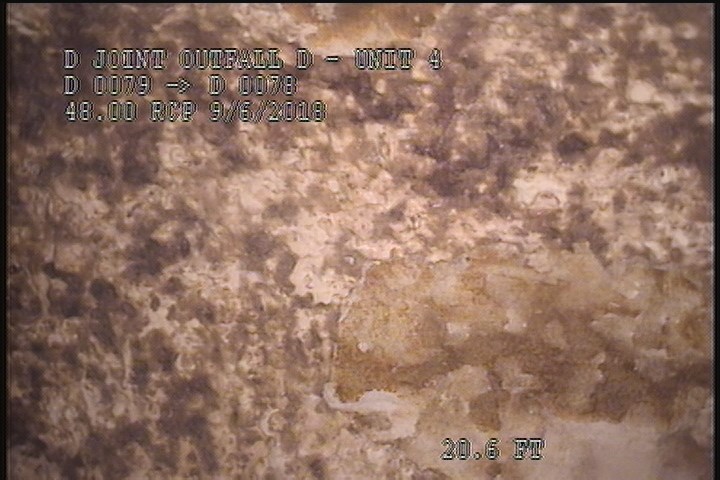

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

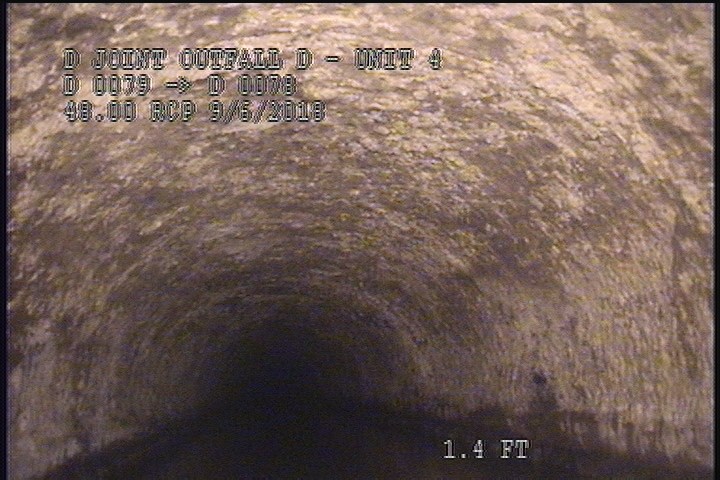

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

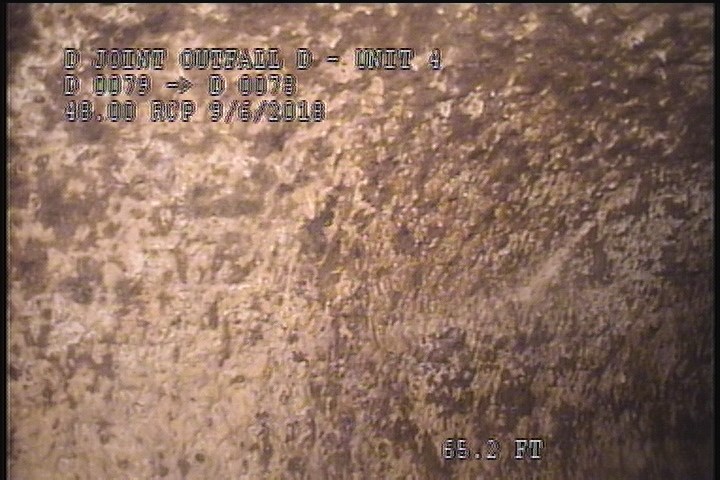

65.2 ft. - General Photograph

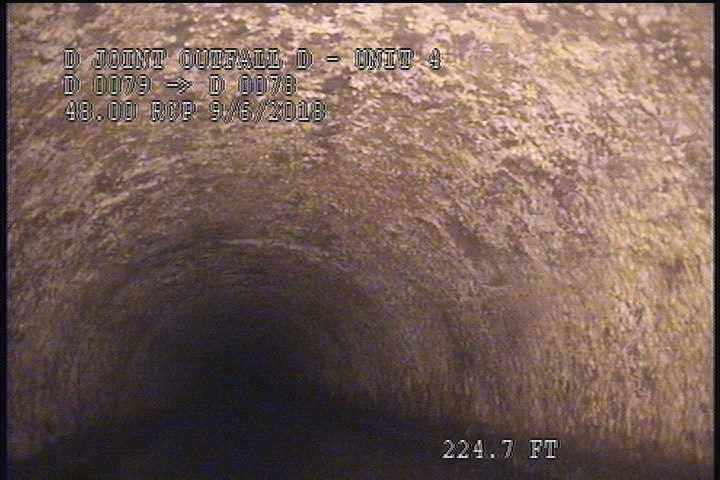

224.7 ft. - General Photograph
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 354 | MGO | Grease Throughout The Reach (5%) |
| 224.7 | MGP | — |
| 2 | SAV | — |
| 0 | MWL | — |
| 65.2 | MGP | — |
| 0 | AMH | 1:07 PM |
| 355.8 | MGO | Peeling & Flaking Throughout The Reach |
| 2 | SZ | 65% MAG |
| 355.8 | AMH | 1:33 PM |
| 354.9 | SZ | 65% MAG |
| 354.9 | SAV | — |
| 0 | MWM | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-06T13:07:08-07:00
