Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 8, 2018, 07:39 AM

  • B 0473_B 0472 _08062018_005511.mp4

  • B 0473_B 0472 _08062018_005511.mp4

Date
06/08/2018
W/O
706864
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00094
PipeID
P08997
Time
12:39 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5692
Sewer Name
B JOINT OUTFALL B - UNIT 5D
City
PASADENA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
07
Purpose
Routine Assessment
Project
WO_706864_TV16080_JUN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
B 0473
Downstream MH
B 0472
Dir. of Survey
Downstream
Length Surveyed
333.8 ft.
Total Length
333.8 ft.
Structural Index
3
Structural Quick
4B3L
Structural Rating
263
O&M Index
1
O&M Quick
311L
O&M Rating
66
Overall Index
2
Overall Quick
—
Overall Rating
329
Pipe schematic from manhole B 0473 to B 0472
MH: B 0473MH: B 0472downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH0 ft. AMH - Upstream Manhole, Survey Begins - B 04730 ft. MWL - Water Level, 15 %of cross sectional area2.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start13.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES27.1 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES39 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start51.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"57.4 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES57.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start93.3 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish118 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"165 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES165.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"166.1 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start201.1 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish227.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"227.2 ft. RFL - Roots Fine Lateral, at 12 o'clock227.2 ft. RFC - Roots Fine Connection, at 12 o'clock273.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES275.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"275.2 ft. RML - Roots Medium Lateral, at 12 o'clock, 30 %, within 8 inches of joint: NO308.9 ft. RFC - Roots Fine Connection, from 08 to 10 o'clock308.9 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"333.8 ft. AMH - Downstream Manhole, Survey Ends - B 0473333.8 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH333.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish333.8 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (8)

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

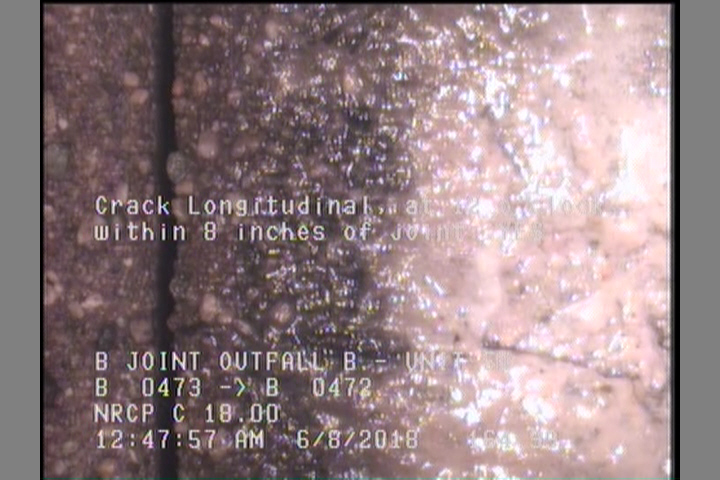

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    13.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    39 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    57.4 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    57.7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    165 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    166.1 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    273.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P08997Work order 706864

Observations (29)

DistanceCodeObservation
57.7FM—
13.5CL—
333.8AMHB 0473
0MWM—
2.2SAP—
308.9RFC—
27.1RFJ—
275.2TF—
227.2TF—
227.2RFL—
165CL—
39RFJ—
93.3FM—
0MGOCAPPED LATERAL 9 O'CLOCK @ MH
118TF—
227.2RFC—
201.1FM—
333.8MGOCAPPED LATERAL 9 O'CLOCK @ MH
0AMHB 0473
333.8SAP—
275.2RML—
51.5TF—
273.1CM—
333.8RFJ—
165.3TF—
0MWL—
57.4CL—
308.9TF—
166.1FM—

Properties (4)

additional_info
SC359512
custom_field_two
2
customer
LACSD
datetime
2018-06-08T00:39:17-07:00
