Wastewater/Activity/PacpInspection/1.0May 9, 2018, 10:40 AM
B 0617_B 0616 _09052018_035231.mp4
- Date
- 05/09/2018
- W/O
- 696325
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00106
- PipeID
- P09282
- Time
- 3:40 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5588
- Sewer Name
- B JOINT OUTFALL B - UNIT 8C
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_696325_TV15228_APR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- B 0617
- Downstream MH
- B 0616
- Dir. of Survey
- Downstream
- Length Surveyed
- 326.7 ft.
- Total Length
- 326.7 ft.
- Structural Index
- 2
- Structural Quick
- 3K2K
- Structural Rating
- 296
- O&M Index
- 2
- O&M Quick
- 412L
- O&M Rating
- 134
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 430
Observation photos (3)

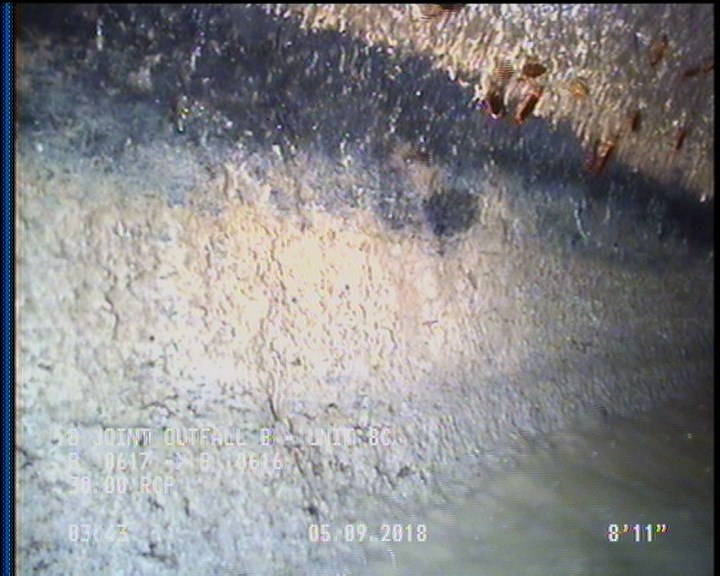

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

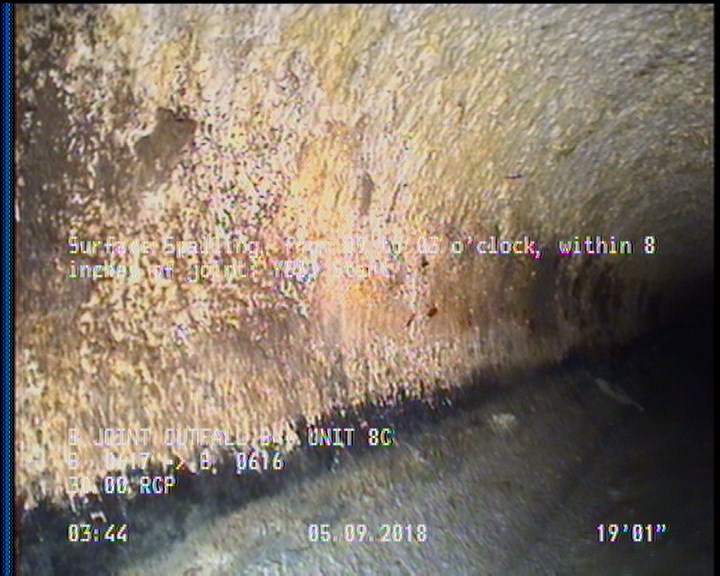

19.1 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

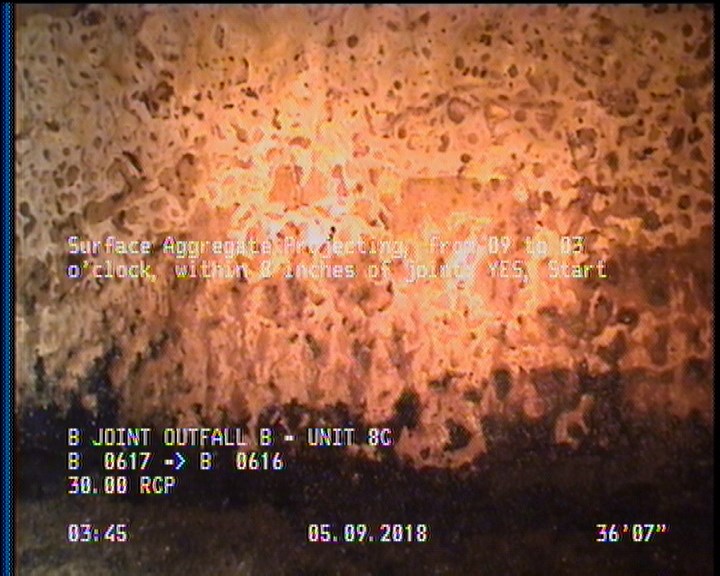

36.6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 0617 |
| 324.8 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 326.7 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MGO | MAG COATING 70% |
| 324.8 | SSS | — |
| 324.8 | SAP | — |
| 36.6 | SAP | — |
| 2 | DAGS | — |
| 326.7 | AMH | B 0616 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 324.8 | DAGS | — |
| 19.1 | SSS | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC359354
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-09T03:40:40-07:00
