Wastewater/Activity/PacpInspection/1.0Apr 22, 2016, 06:06 AM
22 0481_22 0480_20160422_001829.mp4
- Date
- 04/21/2016
- W/O
- 563425
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00800
- PipeID
- P16820
- Time
- 11:06 PM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K 3188
- Sewer Name
- 22 COVINA CONNECTION EXTENSION TRUNK
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_563425_TV22031_APRIL2016
- Sewer Type
- GRAVITY
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 22 0481
- Downstream MH
- 22 0480
- Dir. of Survey
- Downstream
- Length Surveyed
- 176.2 ft.
- Total Length
- 176.2 ft.
- Structural Index
- 3
- Structural Quick
- 4133
- Structural Rating
- 13
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

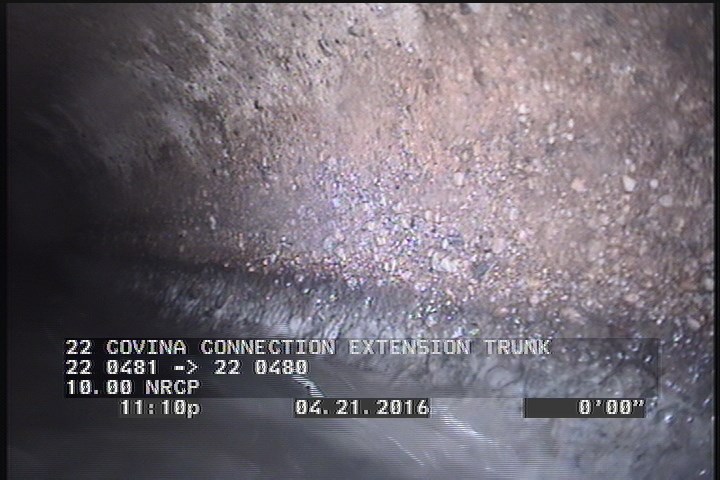

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

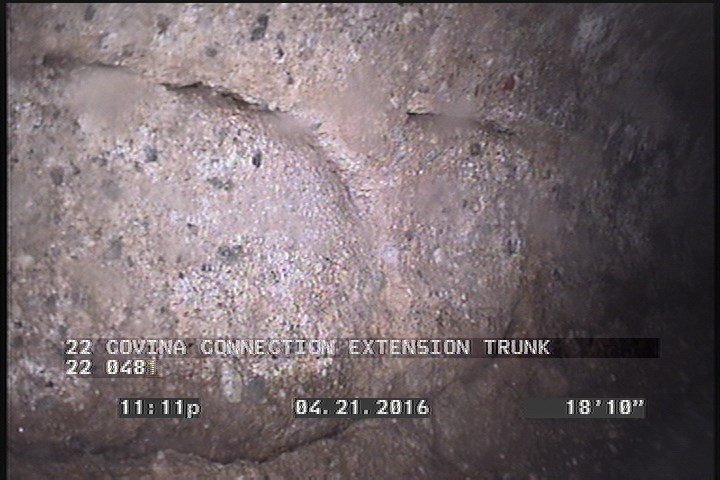

18.9 ft. - Fracture Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

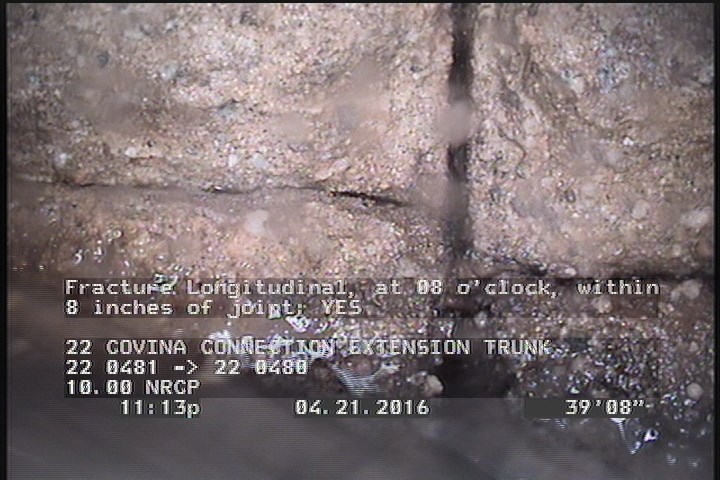

39.7 ft. - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES

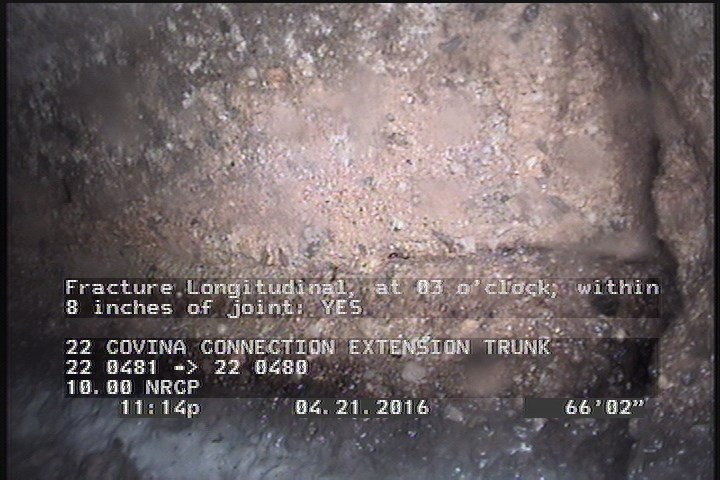

66.2 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | SAV | — |
| 0 | MGO | CONNECTION AT THE MH 3 OC'LOCK |
| 132.8 | TFC | — |
| 173.6 | SAV | — |
| 135.7 | TFC | — |
| 39.7 | FL | — |
| 66.2 | FL | — |
| 76.4 | TFC | — |
| 0 | MWM | — |
| 18.9 | FM | — |
| 176.2 | AMH | 22 0480 |
| 79.4 | TFC | — |
| 0 | AMH | 22 0481 |
| 28.5 | TFC | — |
| 31.6 | TFC | — |
Properties (4)
- additional_info
- SC226236
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-04-21T23:06:45-07:00
