Wastewater/Activity/PacpInspection/1.0Feb 24, 2017, 06:51 AM
F 0150_F 0149 _02232017_225136.mp4
- Date
- 02/23/2017
- W/O
- 626078
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00037
- PipeID
- P10182
- Time
- 10:51 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4253
- Sewer Name
- F JOINT OUTFALL F - UNIT 3B
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39A
- Purpose
- Routine Assessment
- Project
- WO_626078_DISTRICT02_MAR2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Width
- 63 in.
- Upstream MH
- F 0150
- Downstream MH
- F 0149
- Dir. of Survey
- Downstream
- Length Surveyed
- 604 ft.
- Total Length
- 604 ft.
- Structural Index
- 4
- Structural Quick
- 5J3W
- Structural Rating
- 635
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 635
Observation photos (3)

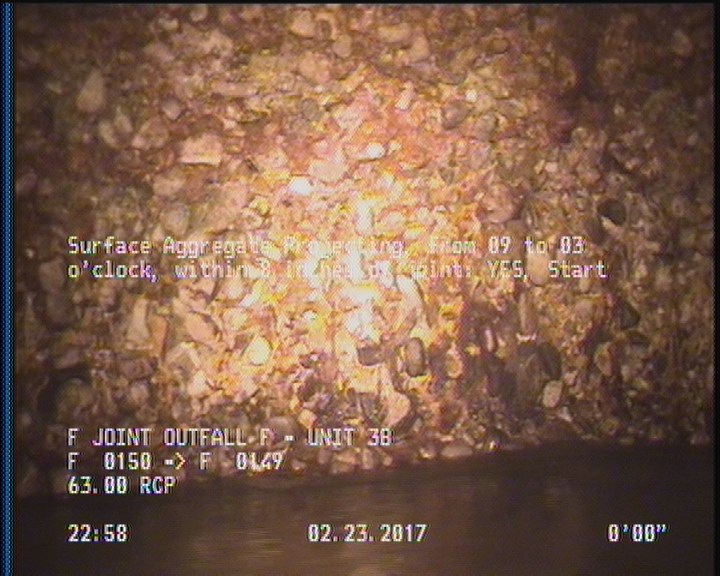

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

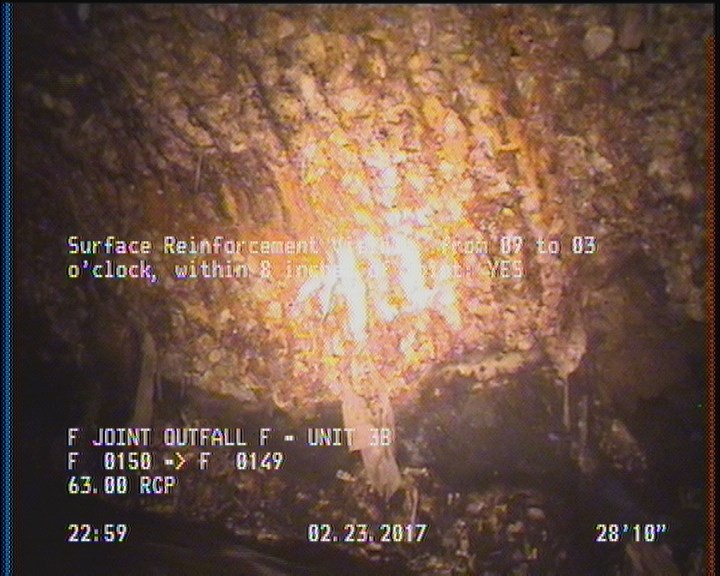

28.8 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

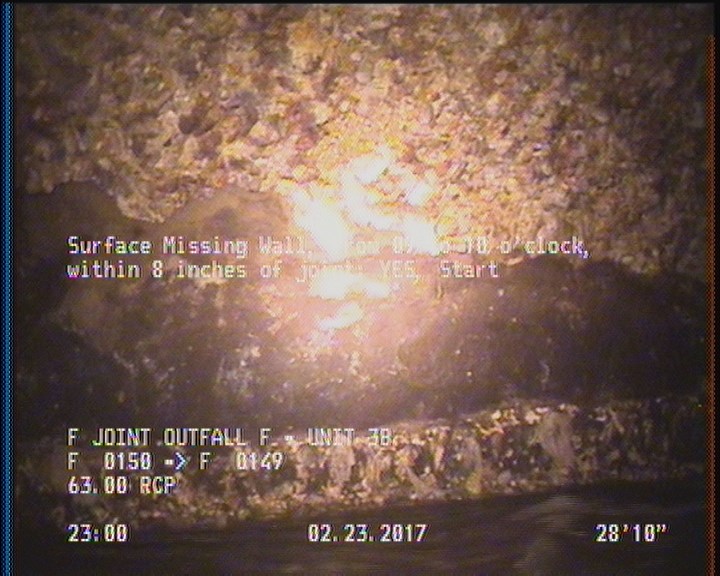

28.8 ft. - Surface Missing Wall, from 09 to 10 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 28.8 | SRV | — |
| 28.8 | SMW | — |
| 0 | MWL | — |
| 2 | SAP | — |
| 603.3 | SAP | — |
| 0 | AMH | F 0150 |
| 38.2 | SMW | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 6 O'CLOCK |
| 294 | SRV | — |
| 604 | AMH | F 0149 |
Properties (4)
- additional_info
- SC306956
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-02-23T22:51:17-08:00
