Wastewater/Activity/PacpInspection/1.0Feb 24, 2017, 08:03 AM
F 0153_F 0152_02242017_000431.mp4
- Date
- 02/24/2017
- W/O
- 626078
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00038
- PipeID
- P10185
- Time
- 12:03 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4253
- Sewer Name
- F JOINT OUTFALL F - UNIT 3C
- City
- NORWALK
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_626078_DISTRICT02_MAR2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Width
- 54 in.
- Upstream MH
- F 0153
- Downstream MH
- F 0152
- Dir. of Survey
- Downstream
- Length Surveyed
- 1326.4 ft.
- Total Length
- 1326.4 ft.
- Structural Index
- 3
- Structural Quick
- 533t
- Structural Rating
- 810
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 814
Observation photos (2)

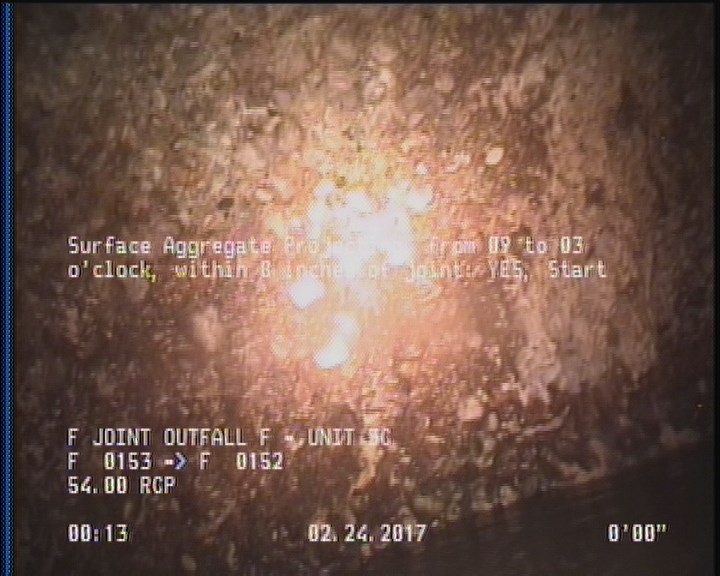

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

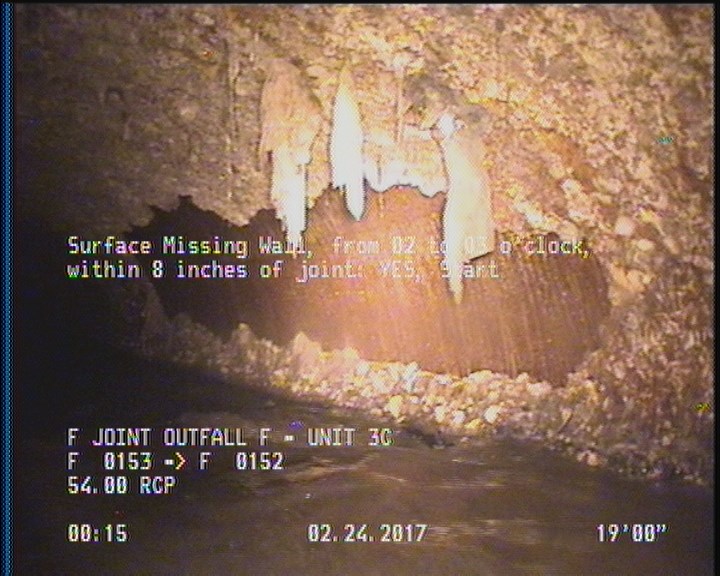

19 ft. - Surface Missing Wall, from 02 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 59.6 | MGO | MAG CCOATING |
| 811.8 | TBA | — |
| 1325.8 | SAP | — |
| 0 | MWL | — |
| 1326.4 | AMH | F 0152 |
| 0 | AMH | F 0153 |
| 34.4 | SMW | — |
| 2 | SAP | — |
| 19 | SMW | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
Properties (4)
- additional_info
- SC306956
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-02-24T00:03:08-08:00
