Wastewater/Activity/PacpInspection/1.0Jun 28, 2016, 07:07 AM
15 0970_15 0969 _28062016_002414.mp4
- Date
- 06/28/2016
- W/O
- 579948
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00592
- PipeID
- P12745
- Time
- 12:07 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3547
- Sewer Name
- 15 AMAR ROAD RELIEF TRUNK
- City
- LA PUENTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_579948_TV15138_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 15 0970
- Downstream MH
- 15 0969
- Dir. of Survey
- Downstream
- Length Surveyed
- 452.2 ft.
- Total Length
- 452.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412Q
- O&M Rating
- 184
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 184
Observation photos (3)

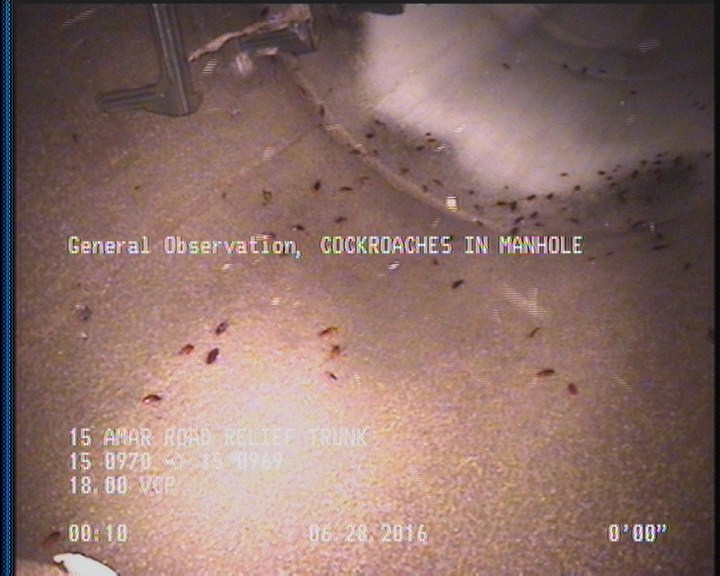

0 ft. - General Observation - COCKROACHES IN MANHOLE

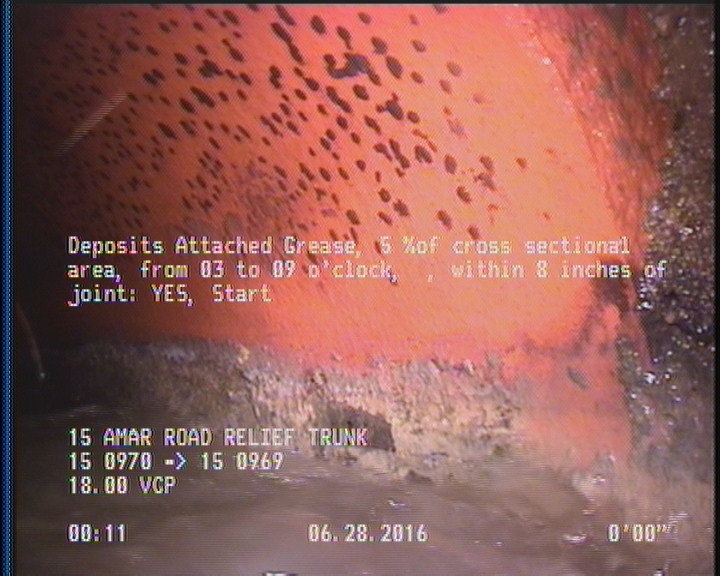

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

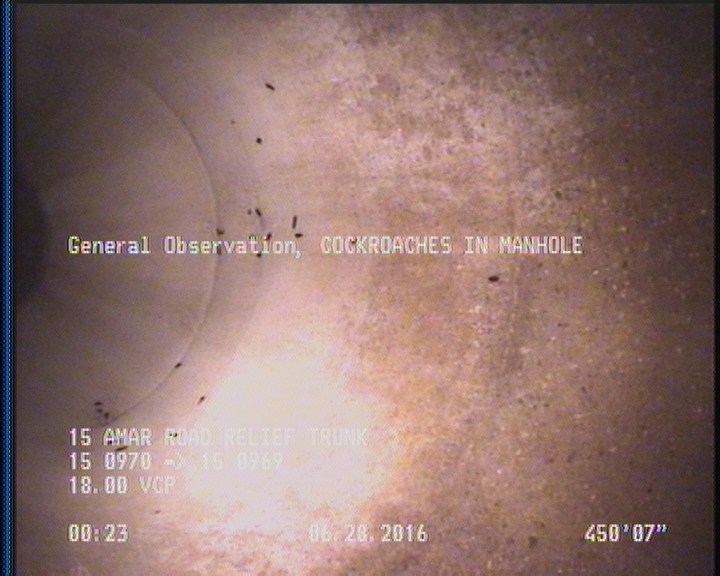

450.5 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 452.2 | AMH | 15 0969 |
| 450.5 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 15 0970 |
| 450.5 | MGO | COCKROACHES IN MANHOLE |
Properties (5)
- additional_info
- SC305777
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-06-28T00:07:19-07:00
- year_laid
- 30544
