Wastewater/Activity/PacpInspection/1.0Jul 11, 2017, 08:14 AM
02 0872_02 0868_11072017_022457.mp4
- Date
- 07/11/2017
- W/O
- 640957
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00297
- PipeID
- P03439
- Time
- 1:14 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3983
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD RELIEF TRUNK, SECTS 2&3
- City
- DOWNEY CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_640957_TV02188_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0872
- Downstream MH
- 02 0868
- Dir. of Survey
- Downstream
- Length Surveyed
- 295.1 ft.
- Total Length
- 295.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (1)

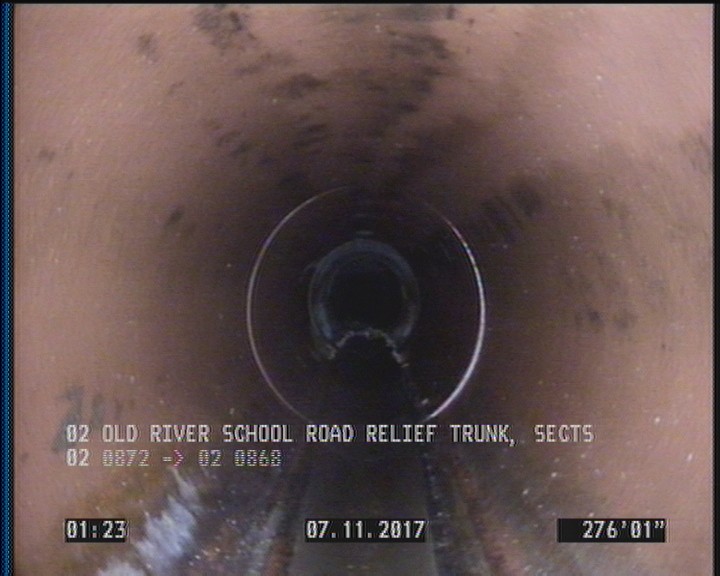

276.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 276.1 | DAGS | — |
| 0 | AMH | 02 0872 |
| 0 | MWL | — |
| 294.6 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 295.1 | AMH | 02 0868 |
| 0 | MWM | — |
| 292.4 | DAGS | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-07-11T01:14:11-07:00
