Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 25, 2017, 11:07 PM

  • 01 0268_01 0267_09062017_031014.mp4

Date
05/25/2017
W/O
640730
Weather
Dry
Operator/Surveyor
M MARTINEZ
Sewer ID
Z00218
PipeID
P01316
Time
4:07 PM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3968
Sewer Name
01 SOUTH PARK AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Routine Assessment
Project
WO_640730_TV01204_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 0268
Downstream MH
01 0267
Dir. of Survey
Downstream
Length Surveyed
331.6 ft.
Total Length
331.6 ft.
Structural Index
4
Structural Quick
4200
Structural Rating
8
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 01 0268 to 01 0267
MH: 01 0268MH: 01 0267downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 02680 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area6 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start8.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start85.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"148.1 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6"178.1 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6"208 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6"240.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"270.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"329 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish329 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish331 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK331.6 ft. AMH - Downstream Manhole, Survey Ends - 01 0267

Observation photos (3)

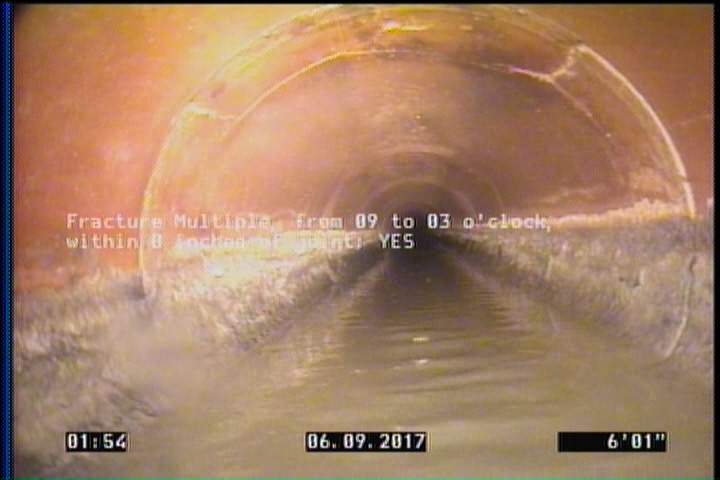

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

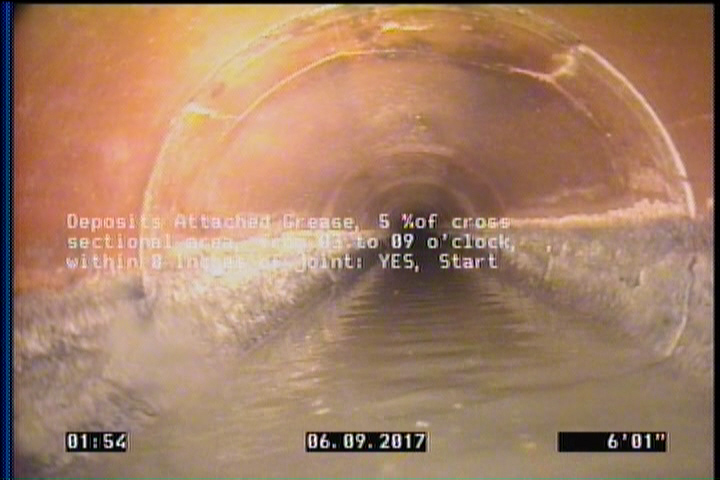

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

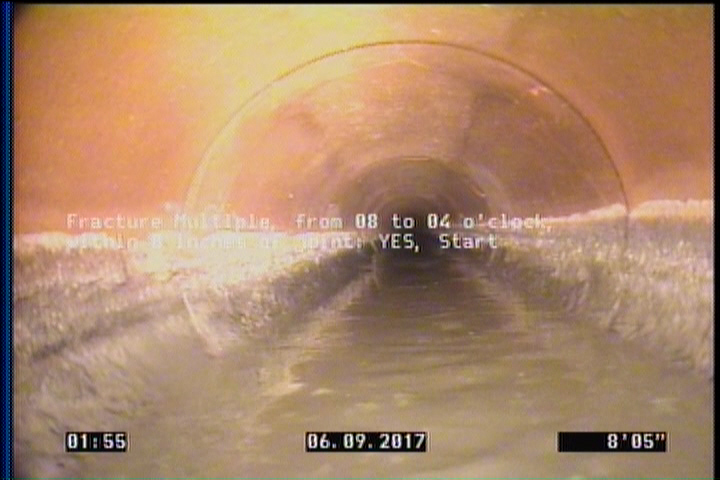

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01316Work order 640730

Observations (16)

DistanceCodeObservation
208TF—
0AMH01 0268
0MWM—
178.1TF—
8.1FM—
0MWL—
270.1TFC—
331.6AMH01 0267
6FM—
240.1TFC—
6DAGS—
85.1TFC—
331MGOCONNECTION AT THE MH 3 O'CLOCK
148.1TF—
329FM—
329DAGS—

Properties (4)

additional_info
SC342121
custom_field_two
2
customer
LACSD
datetime
2017-05-25T16:07:40-07:00
