02 0008_02 0007 _21062017_043250.mp4
- Date
- 06/21/2017
- W/O
- 640701
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00234
- PipeID
- P03034
- Time
- 3:11 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4623
- Sewer Name
- 02 ARTESIA EXTENSION TRUNK
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- WO_640701_TV02341_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0008
- Downstream MH
- 02 0007
- Dir. of Survey
- Downstream
- Length Surveyed
- 369.2 ft.
- Total Length
- 369.2 ft.
- Structural Index
- 4
- Structural Quick
- 4H3B
- Structural Rating
- 226
- O&M Index
- 1
- O&M Quick
- 3124
- O&M Rating
- 56
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 282
Observation photos (7)
3.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
15.4 ft. - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR
75.5 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

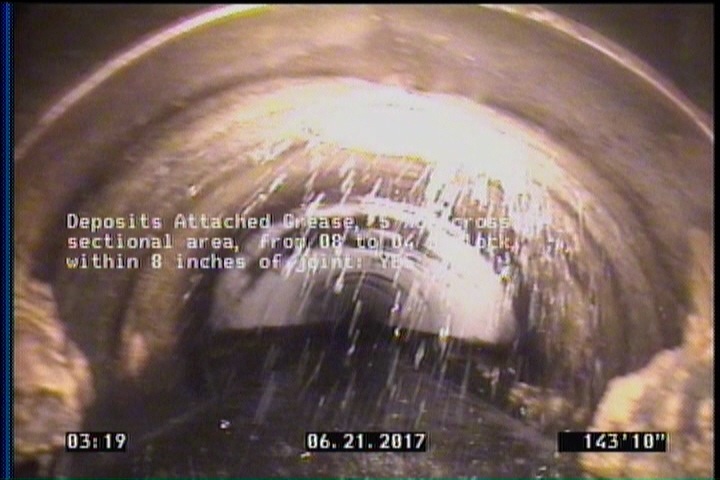

142.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

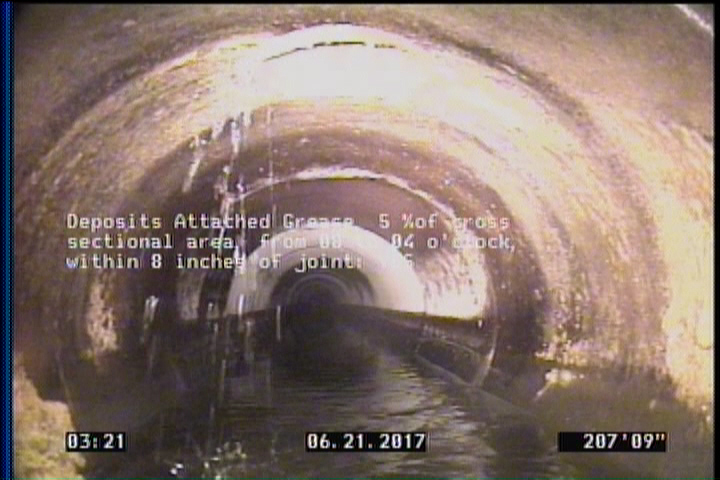

207.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

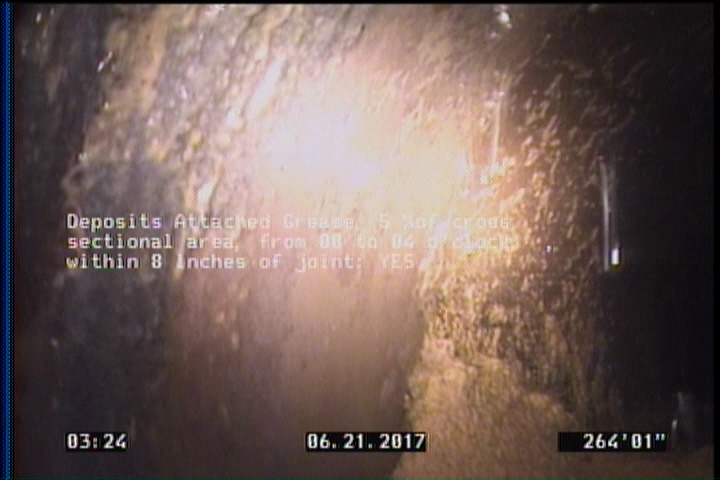

262.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

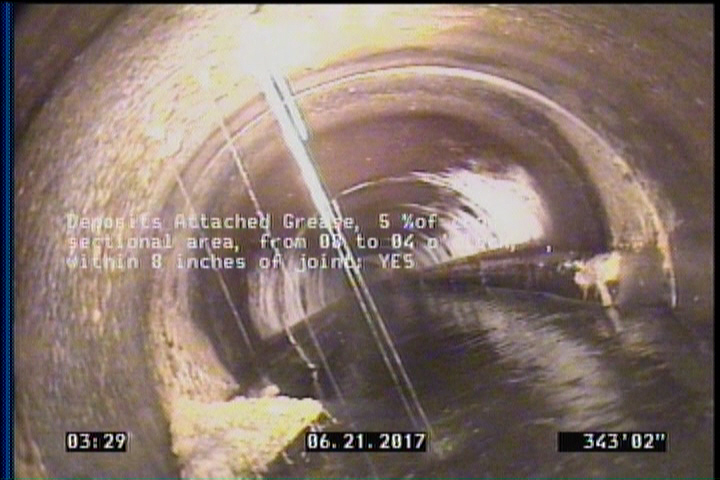

342.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES
Observations (23)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 02 0008 |
| 207.2 | DAGS | — |
| 369.2 | AMH | 02 0007 |
| 89.3 | RFJ | — |
| 145.1 | TFA | — |
| 262.7 | DAGS | — |
| 325.8 | TF | — |
| 75.5 | CM | — |
| 0 | MWM | — |
| 342.2 | DAGS | — |
| 344.5 | TF | — |
| 208.4 | TFA | — |
| 18.2 | TFA | — |
| 15.4 | RMJ | — |
| 264.2 | TFA | — |
| 311.3 | RFJ | — |
| 92.1 | TFA | — |
| 3.6 | CM | — |
| 92.1 | RFL | — |
| 306.6 | FM | — |
| 75.5 | FM | — |
| 142.9 | DAGS | — |
Properties (4)
- additional_info
- SC345338
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-21T03:11:31-07:00
