Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 6, 2017, 06:27 AM

  • 05 0897_05 0896 _05102017_232812.mp4

Date
10/05/2017
W/O
663034
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00512
PipeID
P06127
Time
11:27 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5008
Sewer Name
05 RAYMOND AVENUE TRUNK
City
HAWTHRONE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_663034_TV05096_OCT2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 0897
Downstream MH
05 0896
Dir. of Survey
Downstream
Length Surveyed
333.5 ft.
Total Length
333.6 ft.
Structural Index
3
Structural Quick
3L23
Structural Rating
195
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
195
Pipe schematic from manhole 05 0897 to 05 0896
MH: 05 0897MH: 05 0896downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK, ACTIVE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 08970 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK, ACTIVE4.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES6.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES9.9 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES11.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start69.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"71.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"119.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"121.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"169.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"172.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"187.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"223.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"274 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"284.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"326.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"327.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish333.6 ft. AMH - Downstream Manhole, Survey Ends - 05 0896

Observation photos (4)

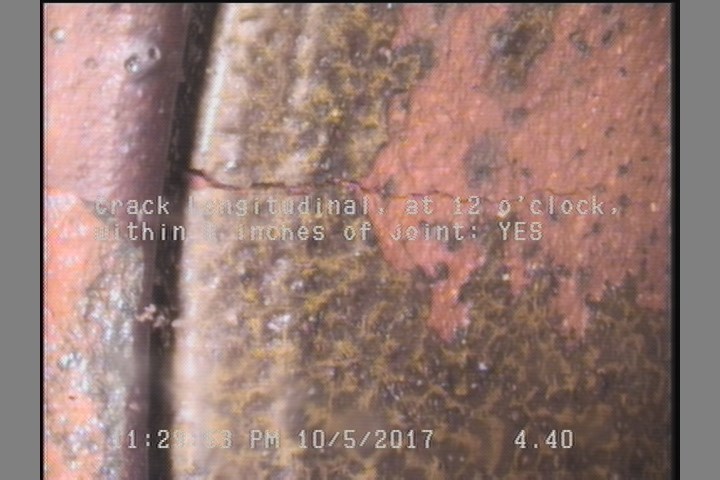

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    4.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

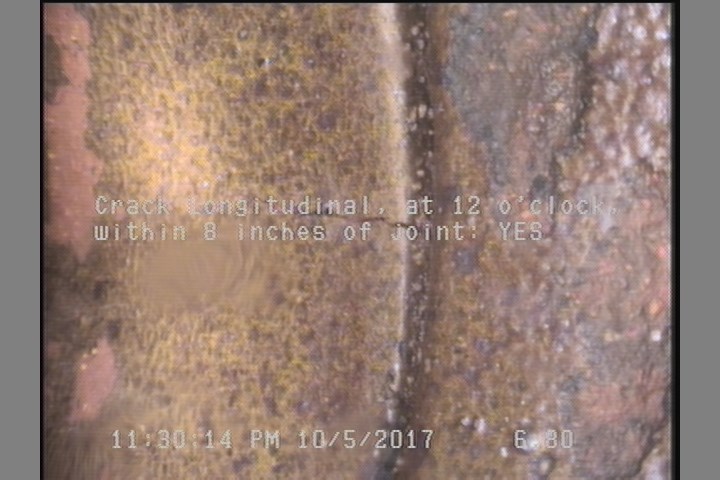

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    6.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

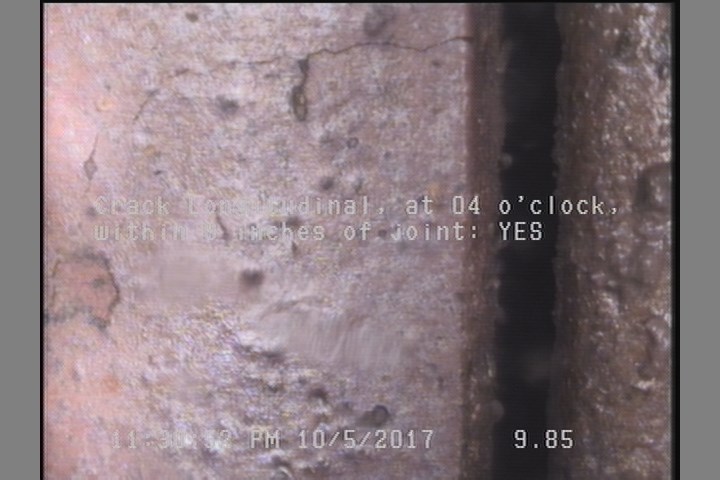

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    9.9 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

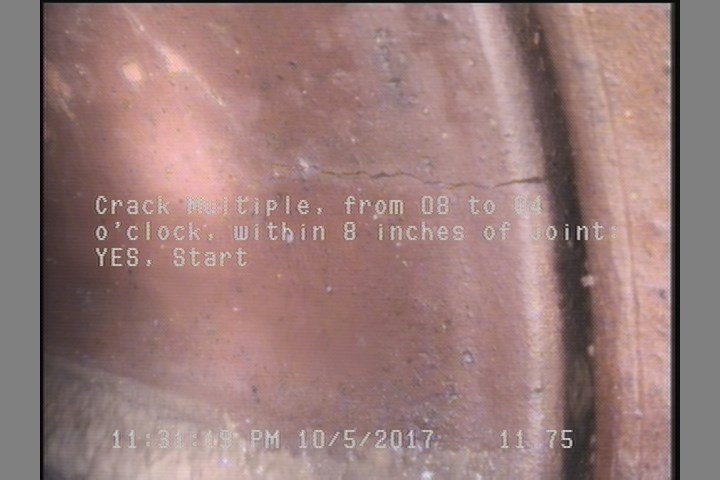

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    11.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06127Work order 663034

Observations (22)

DistanceCodeObservation
69.9TF—
274TF—
223.3TF—
11.8CM—
71.4TFC—
0MWL—
0MGOCONNECTION AT MH 9 O'CLOCK, ACTIVE
4.4CL—
0MWM—
172.7TF—
0AMH05 0897
327.9CM—
9.9CL—
121.9TF—
187.7TF—
333.6AMH05 0896
0MGOCONNECTION AT MH 3 O'CLOCK, ACTIVE
284.1TF—
119.7TF—
6.8CL—
169.9TF—
326.9TF—

Properties (4)

additional_info
SC346168
custom_field_two
3
customer
LACSD
datetime
2017-10-05T23:27:53-07:00
