Wastewater/Activity/PacpInspection/1.0Sep 28, 2017, 05:57 AM
16 0074_16 0073 _27092017_232942.mp4
- Date
- 09/27/2017
- W/O
- 658234
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00639
- PipeID
- P13088
- Time
- 10:57 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4986
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
- City
- SAN MARINO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_658234_TV16004_SEP2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 16 0074
- Downstream MH
- 16 0073
- Dir. of Survey
- Downstream
- Length Surveyed
- 328.9 ft.
- Total Length
- 328.9 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 195
- O&M Index
- 2
- O&M Quick
- 312L
- O&M Rating
- 134
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 329
Observation photos (3)

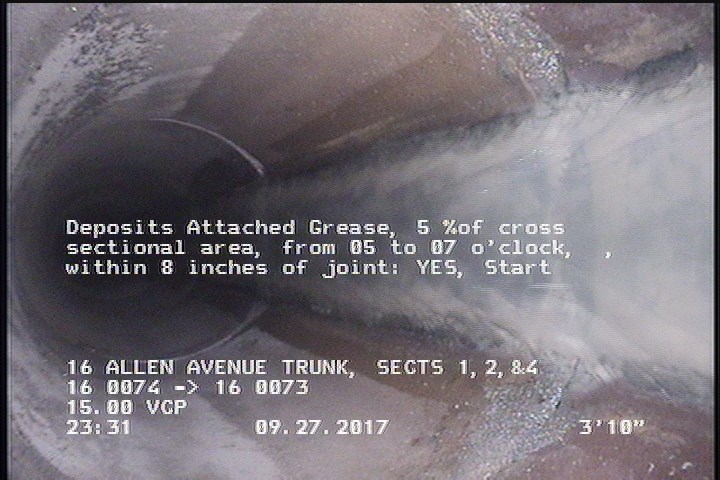

3.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

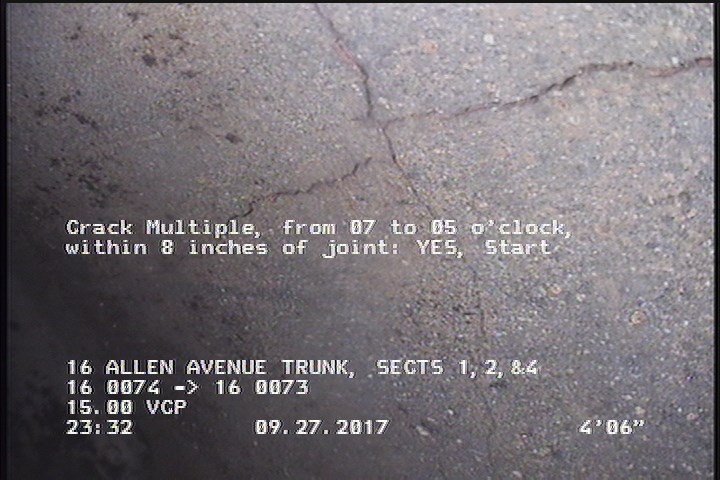

4.5 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

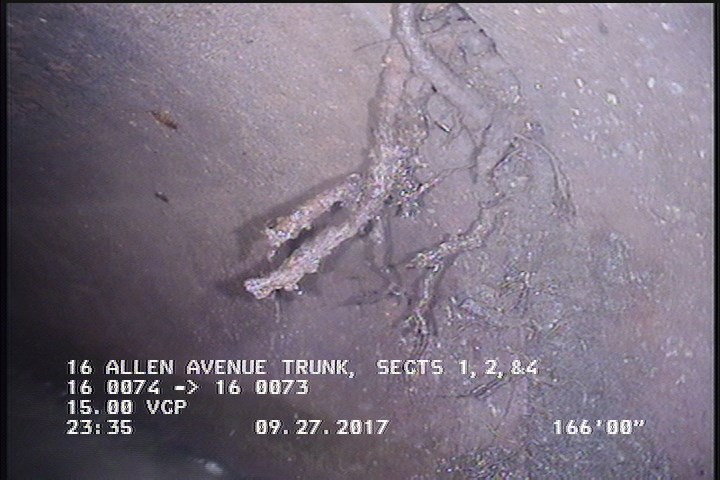

165.9 ft. - Roots Fine Joint, from 03 to 05 o'clock, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 4.5 | CM | — |
| 165.9 | RFJ | — |
| 266.4 | TBD | 80% GREASE/1 INCH PROTRUDING |
| 3.8 | DAGS | — |
| 328.9 | CM | — |
| 0 | MWM | — |
| 110.6 | TB | — |
| 0 | AMH | 16 0074 |
| 0 | MWL | — |
| 328.9 | DAGS | — |
| 51.5 | TB | — |
| 328.9 | AMH | 16 0073 |
| 325.5 | TBA | — |
| 192.7 | TB | — |
| 327 | MGO | SPALLING THROUGHOUT THE REACH |
Properties (4)
- additional_info
- SC345978
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-27T22:57:57-07:00
