Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 28, 2017, 05:06 AM

  • 16 0078_16 0077 _27092017_221734.mp4

Date
09/27/2017
W/O
658234
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00639
PipeID
P13092
Time
10:06 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4986
Sewer Name
16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
City
SAN MARINO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
18
Purpose
Routine Assessment
Project
WO_658234_TV16004_SEP2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Width
16 in.
Upstream MH
16 0078
Downstream MH
16 0077
Dir. of Survey
Downstream
Length Surveyed
249 ft.
Total Length
249 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
312I
O&M Rating
103
Overall Index
2
Overall Quick
—
Overall Rating
109
Pipe schematic from manhole 16 0078 to 16 0077
MH: 16 0078MH: 16 0077downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 00780 ft. MWL - Water Level, 15 %of cross sectional area3.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start8.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start40.2 ft. TBD - Tap Break-In Defective, at 02 o'clock, -, , within 8 inches of joint: NO, 4", 4" - BROKEN/1 INCH PROTRUDING54.6 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 4", 4" - 75% GREASE56.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"105.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"108.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"154.6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"155.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"206.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 43"206.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"247 ft. MGO - General Observation - SPALLING THROUGHOUT THE REACH248.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish248.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish249 ft. AMH - Downstream Manhole, Survey Ends - 16 0077

Observation photos (2)

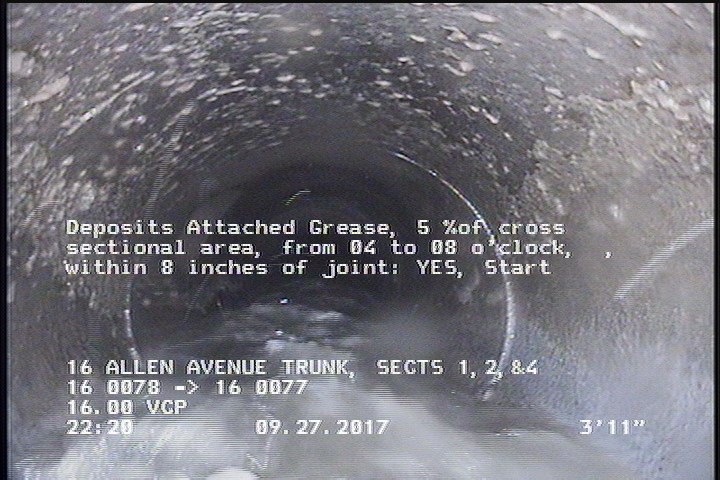

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

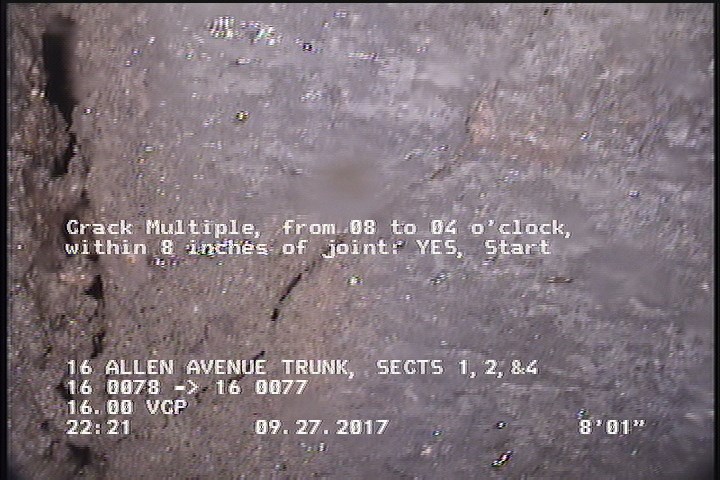

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P13092Work order 658234

Observations (18)

DistanceCodeObservation
105.5TF—
3.9DAGS—
206.9TFC—
108.4TFC—
154.6TFC—
247MGOSPALLING THROUGHOUT THE REACH
40.2TBDBROKEN/1 INCH PROTRUDING
206.7TFC—
54.6TFD75% GREASE
155.4TF—
0MWM—
248.9DAGS—
248.9CM—
56.7TFC—
0AMH16 0078
8.1CM—
249AMH16 0077
0MWL—

Properties (4)

additional_info
SC345978
custom_field_two
3
customer
LACSD
datetime
2017-09-27T22:06:39-07:00
