Wastewater/Activity/PacpInspection/1.0Sep 29, 2017, 08:00 AM
16 0055_16 0054 _29092017_011713.mp4
- Date
- 09/29/2017
- W/O
- 658234
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00639
- PipeID
- P13068
- Time
- 1:00 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4987
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
- City
- SAN MARINO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_658234_TV16004_SEP2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 16 0054
- Downstream MH
- 16 0055
- Dir. of Survey
- Upstream
- Length Surveyed
- 369.8 ft.
- Total Length
- 369.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (1)

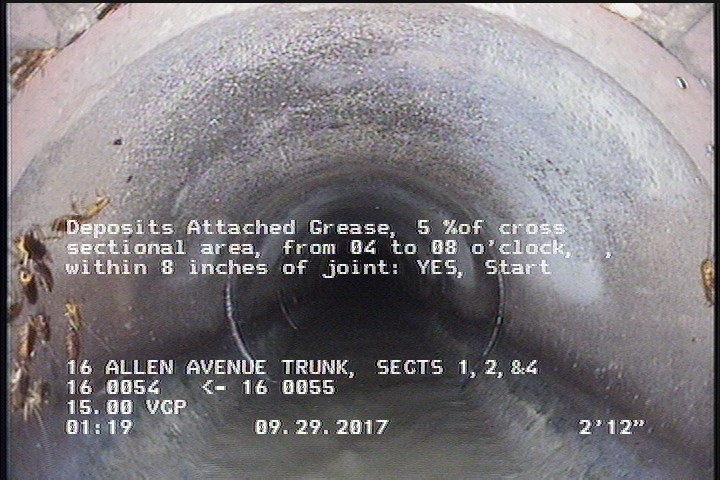

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 16 0054 |
| 369.8 | DAGS | — |
| 3 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 368 | MGO | SPALLING THROUGHOUT THE REACH |
| 369.8 | AMH | 16 0055 |
Properties (4)
- additional_info
- SC345979
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-29T01:00:44-07:00
