Wastewater/Activity/PacpInspection/1.0Oct 2, 2017, 09:39 AM
C 0246_C 0245 _02102017_023921.mp4
- Date
- 10/02/2017
- W/O
- 657902
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00928
- PipeID
- P20307
- Time
- 2:39 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4895
- Sewer Name
- C JOINT OUTFALL C - UNIT 6A
- City
- LONG BEACH
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_657902_TV03090_SEP2017
- Sewer Type
- Siphon
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- C 0246
- Downstream MH
- C 0245
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

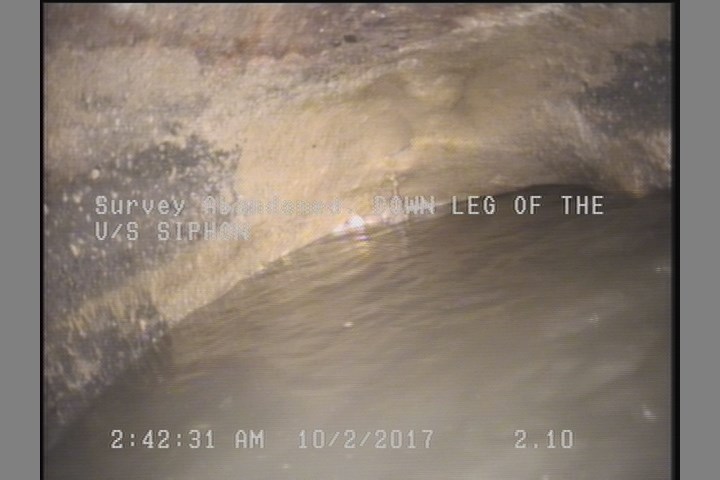

2.1 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON

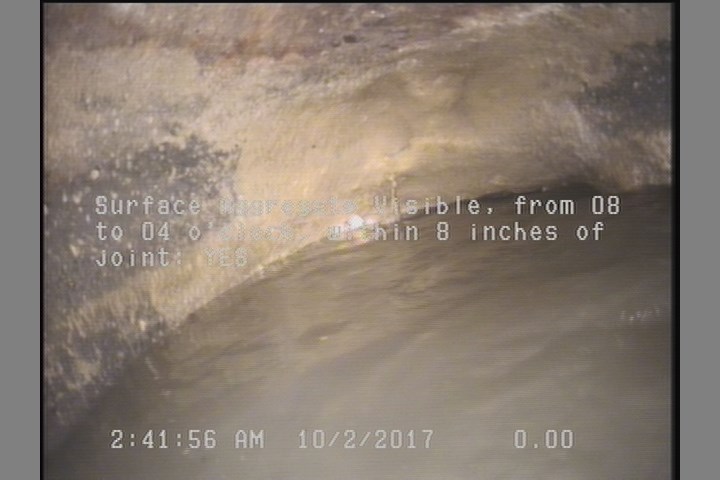

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | DOWN LEG OF THE U/S SIPHON |
| 0 | AMH | C 0246 NW |
| 2 | SRV | — |
| 0 | MWM | — |
| 2.1 | SAV | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC346155
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-02T02:39:12-07:00
- year_laid
- 19456
