Wastewater/Activity/PacpInspection/1.0Oct 3, 2017, 05:16 AM
B 0761_B 0760 _02102017_221717.mpg
- Date
- 10/02/2017
- W/O
- 657868
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00112
- PipeID
- P09227
- Time
- 10:16 PM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4950
- Sewer Name
- B JOINT OUTFALL B - UNIT 8J
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_657868_TV15210_SEP2017
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 0761
- Downstream MH
- B 0760
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

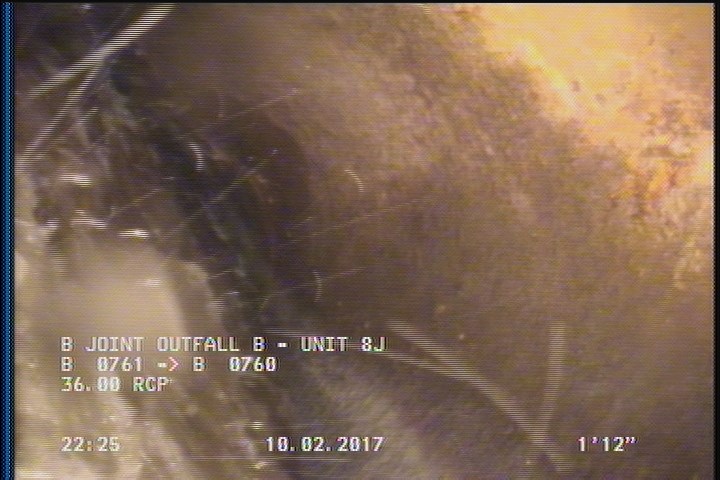

2 ft. - Survey Abandoned - VIEW OF THE D/S SIPHON FROM THE U/S MH

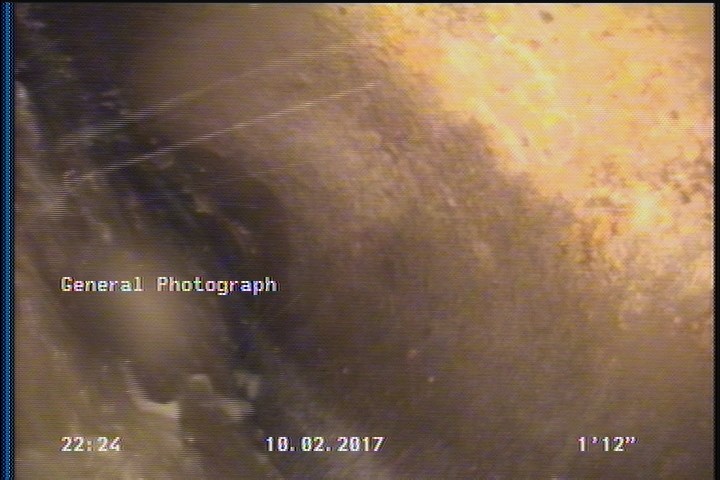

2 ft. - General Photograph

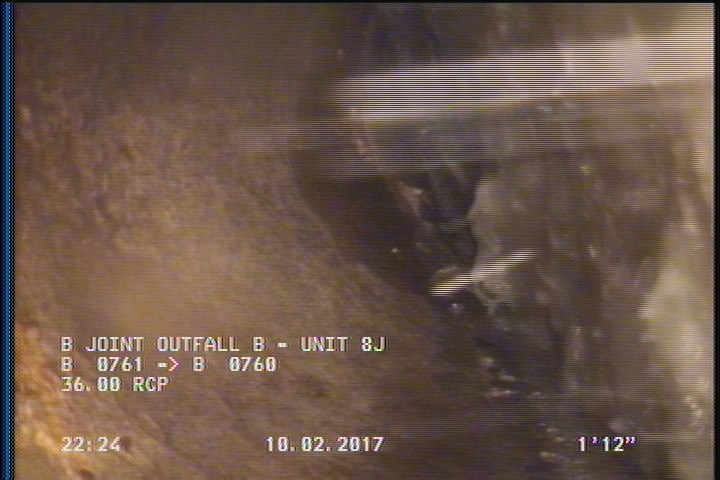

2 ft. - General Observation - VIEW OF THE D/S SIPHON FROM THE U/S MH
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | MSA | VIEW OF THE D/S SIPHON FROM THE U/S MH |
| 0 | MGO | SERVICE CONNECTION AT 12 O' CLOCK AT MH |
| 2 | MGP | — |
| 0 | MWL | — |
| 1.9 | MGO | SPALLING THROUGHOUT THE REACH |
| 2 | MGO | VIEW OF THE D/S SIPHON FROM THE U/S MH |
| 2 | SAV | — |
| 0 | MWM | — |
| 0 | AMH | B 0761 |
Properties (4)
- additional_info
- SC345858
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-02T22:16:12-07:00
