Wastewater/Activity/PacpInspection/1.0Aug 17, 2017, 07:58 AM
02 1197_02 1196_17082017_005929.mp4
- Date
- 08/17/2017
- W/O
- 652007
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00262
- PipeID
- P03708
- Time
- 12:58 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4787
- Sewer Name
- 02 GARFIELD AVENUE DIVERSION TRUNK
- City
- MONTEBELLO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_652007_TV02291_AUG2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1197
- Downstream MH
- 02 1196
- Dir. of Survey
- Downstream
- Length Surveyed
- 363 ft.
- Total Length
- 363 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

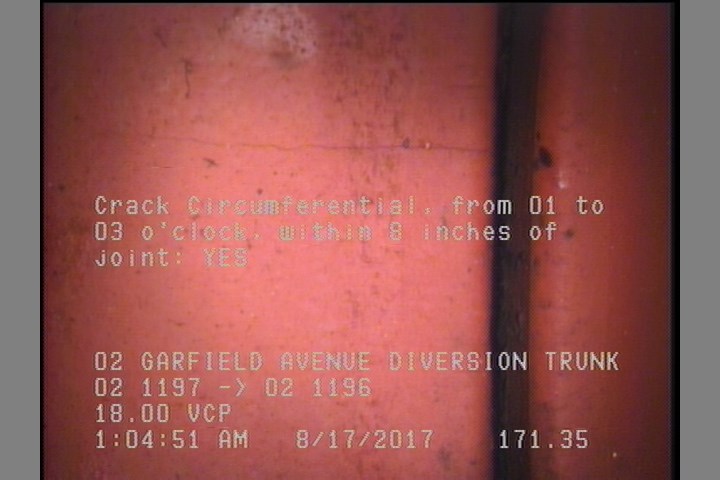

171.4 ft. - Crack Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES

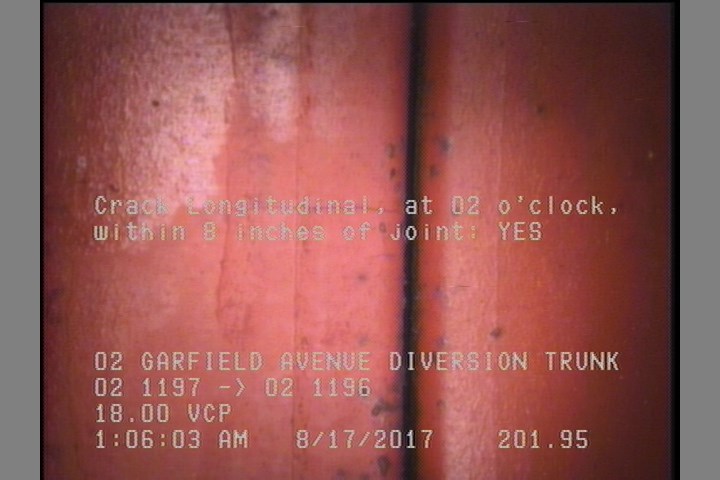

202 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 02 1197 |
| 171.4 | CC | — |
| 0 | MWL | — |
| 202 | CL | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 363 | AMH | 02 1196 |
Properties (4)
- additional_info
- SC345546
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-17T00:58:25-07:00
