Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 18, 2017, 07:12 AM

  • 02 2316_02 1187_18082017_001232.mpg

Date
08/18/2017
W/O
652007
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00262
PipeID
P08495
Time
12:12 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4788
Sewer Name
02 GARFIELD AVENUE DIVERSION TRUNK
City
MONTEBELLO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Routine Assessment
Project
WO_652007_TV02291_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 2316
Downstream MH
02 1187
Dir. of Survey
Downstream
Length Surveyed
14.1 ft.
Total Length
14.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 02 2316 to 02 1187
MH: 02 2316MH: 02 1187downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 23160 ft. MWM - Water Mark, 20 %of cross sectional area14.1 ft. AMH - Downstream Manhole, Survey Ends - 02 118714.1 ft. DSF - Deposits Settled Fine, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

Observation photos (1)

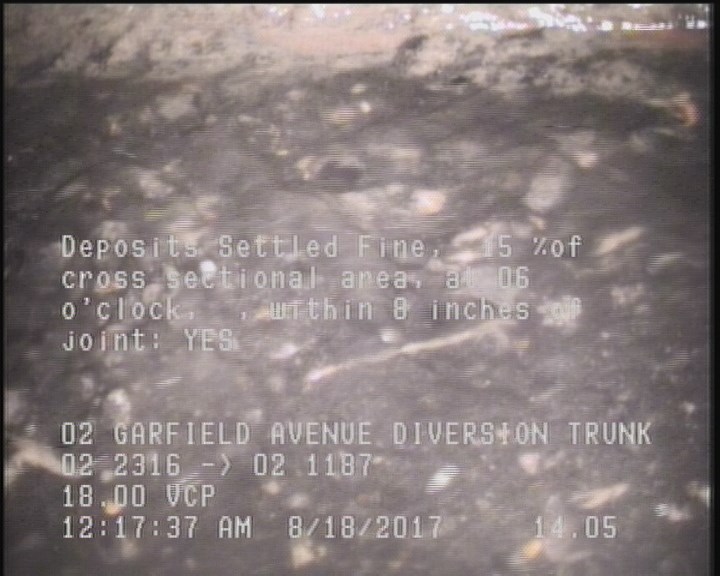

  • Deposits Settled Fine, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

    14.1 ft. - Deposits Settled Fine, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

All inspections of P08495Work order 652007

Observations (7)

DistanceCodeObservation
0MGOCONNECTION AT MH 3 O'CLOCK
0MGOCONNECTION AT MH 6 O'CLOCK
0MWL—
14.1AMH02 1187
14.1DSF—
0AMH02 2316
0MWM—

Properties (4)

additional_info
SC345547
custom_field_two
4
customer
LACSD
datetime
2017-08-18T00:12:00-07:00
