Wastewater/Activity/PacpInspection/1.0Aug 18, 2017, 06:10 AM
02 1193_02 1192_17082017_231044.mpg
- Date
- 08/17/2017
- W/O
- 652007
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00262
- PipeID
- P03703
- Time
- 11:10 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4788
- Sewer Name
- 02 GARFIELD AVENUE DIVERSION TRUNK
- City
- MONTEBELLO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_652007_TV02291_AUG2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1192
- Downstream MH
- 02 1193
- Dir. of Survey
- Upstream
- Length Surveyed
- 353.5 ft.
- Total Length
- 353.5 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

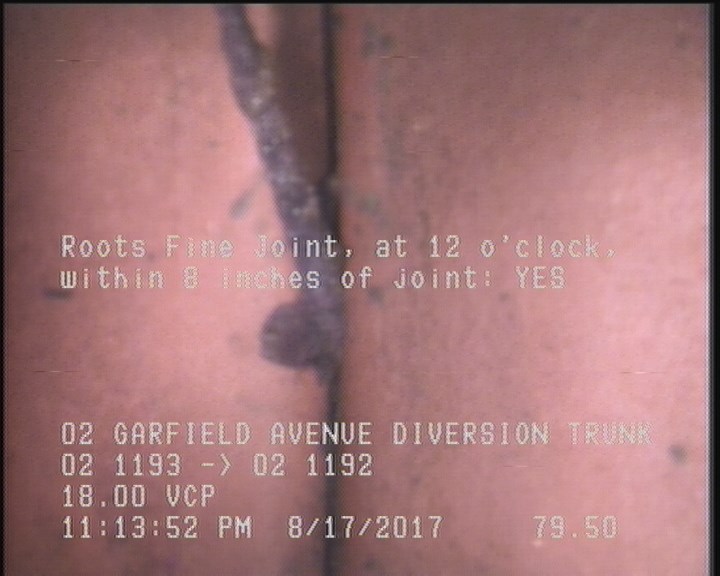

79.5 ft. - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: YES

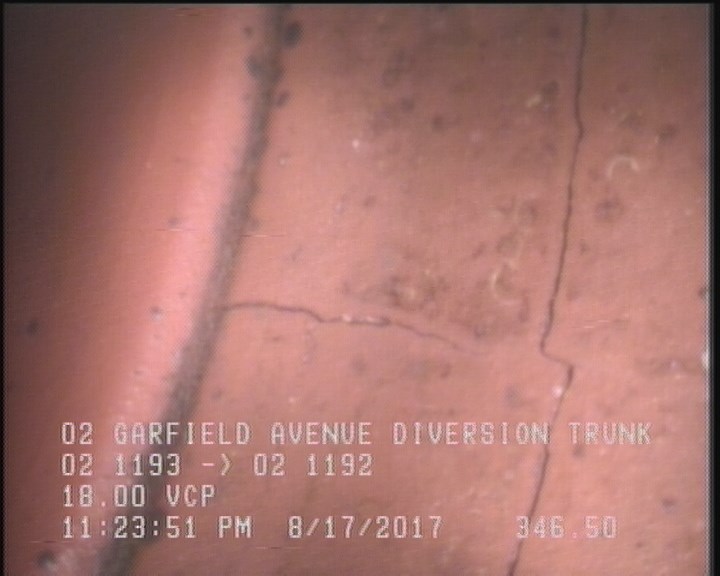

346.5 ft. - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 79.5 | RFJ | — |
| 0 | MWM | — |
| 353.5 | AMH | 02 1193 |
| 346.5 | CM | — |
| 0 | MWL | — |
| 0 | AMH | 02 1192 |
Properties (4)
- additional_info
- SC345547
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-17T23:10:09-07:00
