Wastewater/Activity/PacpInspection/1.0Jul 20, 2017, 09:46 AM
22 1082A_22 1082 _21072017_031114.mp4
- Date
- 07/20/2017
- W/O
- 646476
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00812
- PipeID
- P17456
- Time
- 2:46 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4665
- Sewer Name
- 22 IRWINDALE TRUNK, SECTS 2,3,4,&5
- City
- IRWINDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_646476_TV22042_JUL2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 1082A
- Downstream MH
- 22 1082
- Dir. of Survey
- Downstream
- Length Surveyed
- 314.8 ft.
- Total Length
- 314.8 ft.
- Structural Index
- 3
- Structural Quick
- 4132
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)

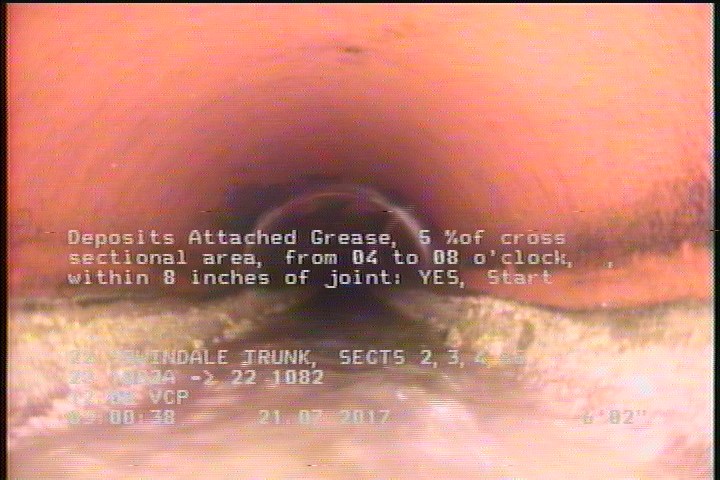

6.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

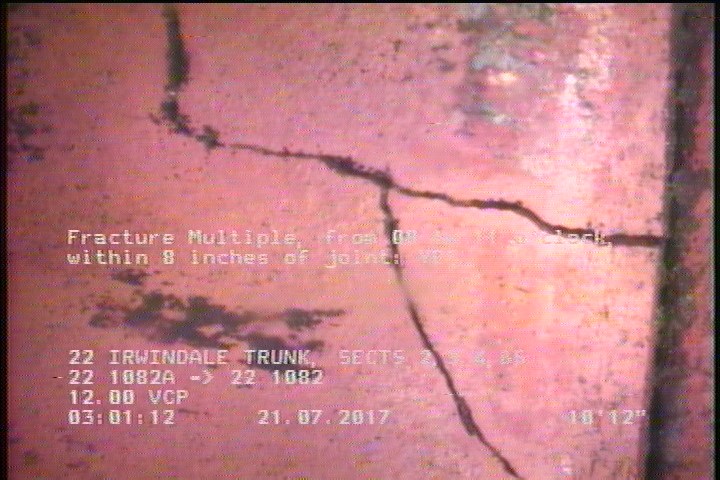

11 ft. - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

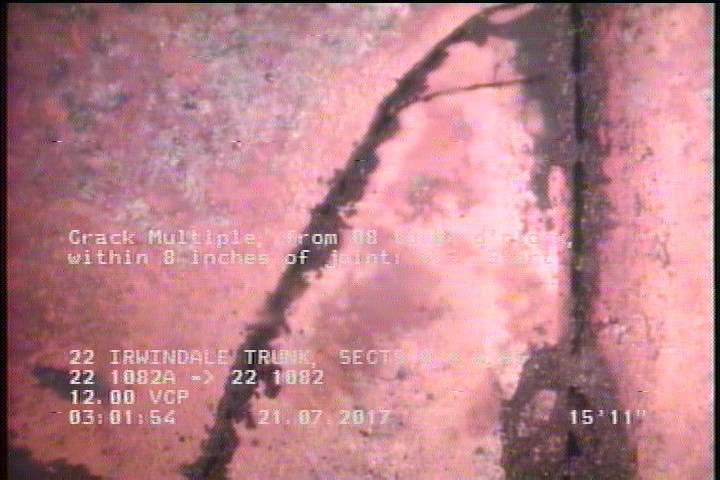

16 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
52.1 ft. - Fracture Spiral, from 03 to 06 o'clock, within 8 inches of joint: YES
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 314.8 | CM | — |
| 0 | MGO | CONNECTION AT 3, 9 OC |
| 0 | AMH | 22 1082A |
| 58 | TB | — |
| 314.8 | DAGS | — |
| 201.1 | TFC | — |
| 183.2 | TFC | — |
| 11 | FM | — |
| 314.8 | AMH | 22 1082 |
| 16 | CM | — |
| 134.6 | TFC | — |
| 52.1 | FS | — |
| 259.2 | TB | — |
| 6.2 | DAGS | — |
| 88.7 | TFC | — |
| 287.6 | TFC | — |
| 111.7 | TFC | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC345603
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-20T02:46:02-07:00
