Wastewater/Activity/PacpInspection/1.0Jun 1, 2016, 05:59 PM
02 0340_02 0339_25052016_000420.mp4
- Date
- 06/01/2016
- W/O
- 574757
- Weather
- Dry
- Operator/Surveyor
- N. ZAHREDDINE
- Sewer ID
- Z00259
- PipeID
- P02651
- Time
- 10:59 AM
- Certificate
- N/A
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3205
- Sewer Name
- 02 EAST COMPTON BOULEVARD RELIEF TRUNK
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_574757_TV02059_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0339
- Downstream MH
- 02 0340
- Dir. of Survey
- Upstream
- Length Surveyed
- 329.8 ft.
- Total Length
- 329.8 ft.
- Structural Index
- 3
- Structural Quick
- 4231
- Structural Rating
- 17
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (6)

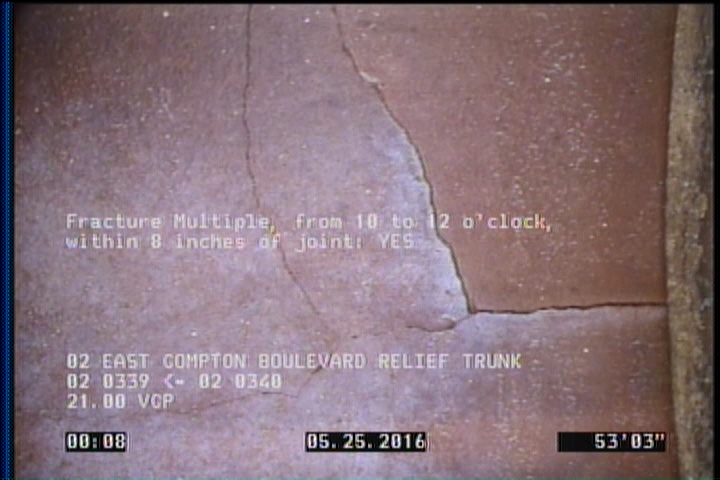

53 ft. - Fracture Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES

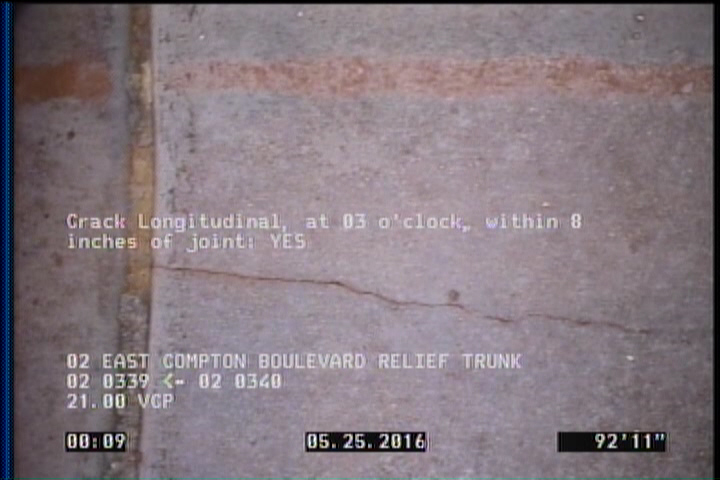

92.1 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

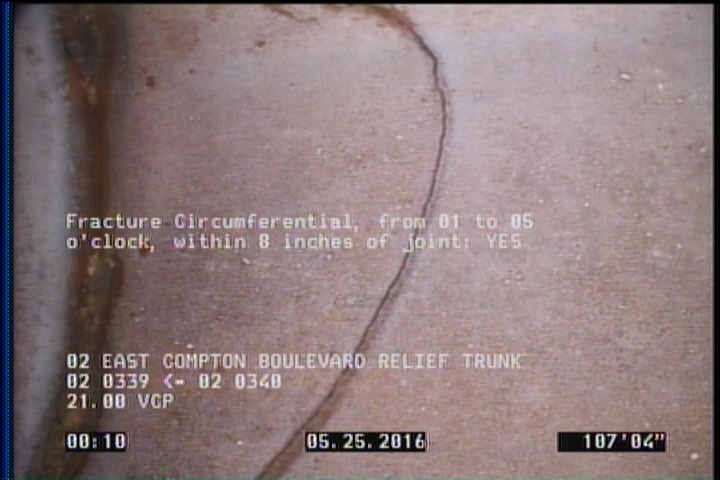

107 ft. - Fracture Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES

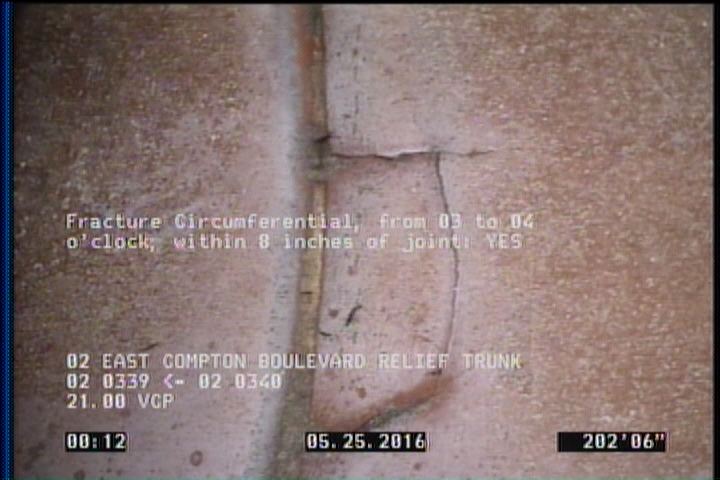

202.1 ft. - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES

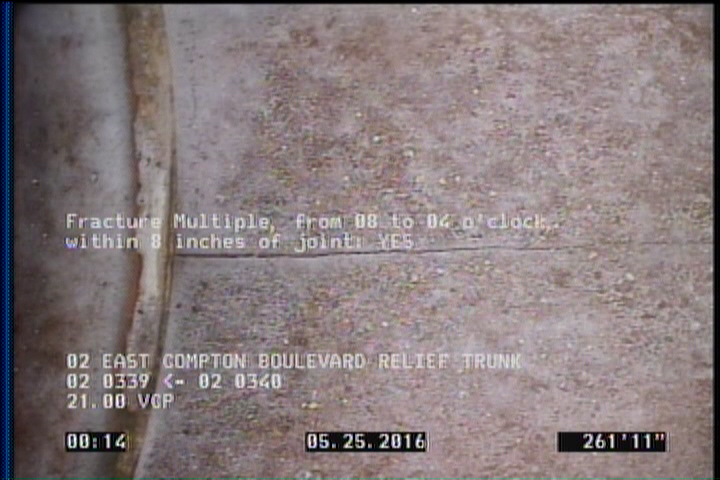

261.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

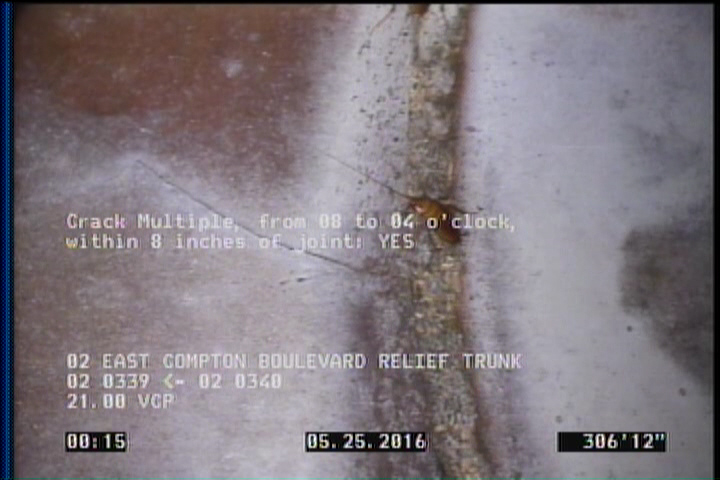

306.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 329.1 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 202.1 | FC | — |
| 107 | FC | — |
| 329.8 | AMH | 02 0340 |
| 53 | FM | — |
| 92.1 | CL | — |
| 261.1 | FM | — |
| 0 | AMH | 02 0339 |
| 0 | MWM | — |
| 306.1 | CM | — |
Properties (4)
- additional_info
- SC300664
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-01T10:59:20-07:00
