Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 23, 2018, 04:45 AM

  • 02 0716A_02 0716_22082018_220351.mp4

Date
08/22/2018
W/O
723869
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00294
PipeID
P03268
Time
9:45 PM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6056
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
Downey
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Routine Assessment
Project
WO_723869_TV02264_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0716A
Downstream MH
02 0716
Dir. of Survey
Downstream
Length Surveyed
192.2 ft.
Total Length
192.2 ft.
Structural Index
3
Structural Quick
4234
Structural Rating
20
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 02 0716A to 02 0716
MH: 02 0716AMH: 02 0716downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 0716A0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 40 %of cross sectional area15 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"18.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"128.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"131 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"169.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES170.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start173.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start173.8 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish192.2 ft. AMH - Downstream Manhole, Survey Ends - 02 0716192.2 ft. MGO - General Observation - ROACHES IN MH192.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

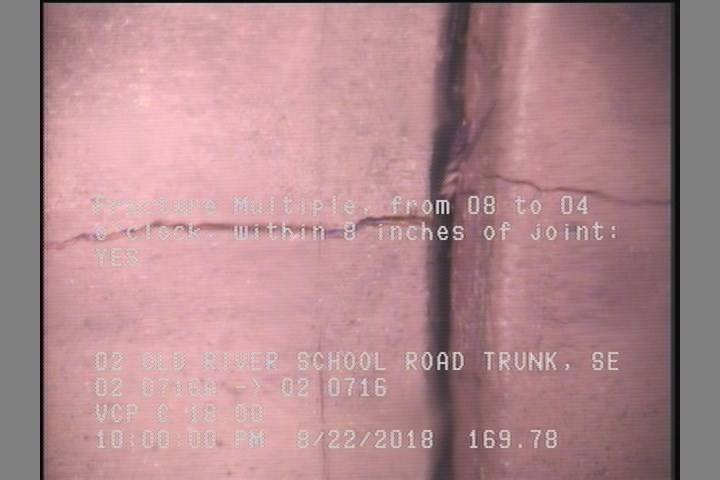

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    169.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

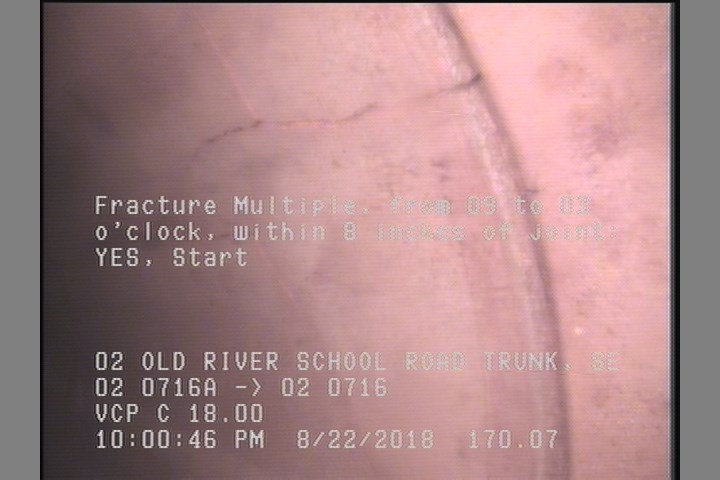

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    170.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

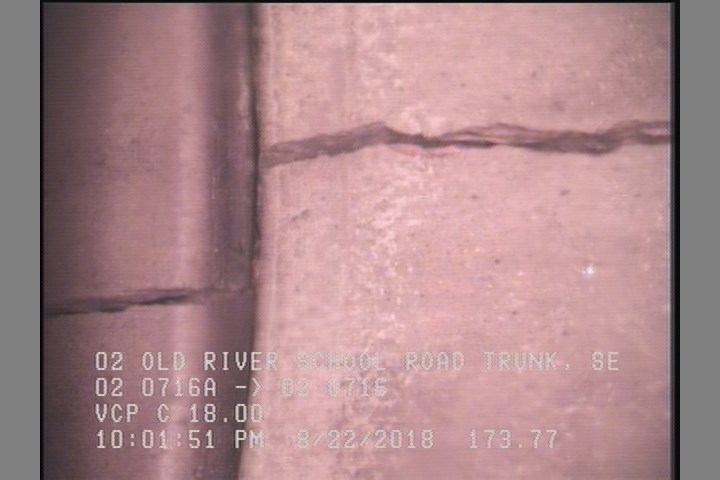

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    173.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P03268Work order 723869

Observations (15)

DistanceCodeObservation
173.8FL—
0AMH02 0716A
192.2AMH02 0716
0MWL—
192.2MGOROACHES IN MH
192.2FL—
128.6TFC—
173.8FM—
169.8FM—
15TFC—
131TFC—
0MGOCONNECTION AT MH 9 O'CLOCK
0MWM—
170.1FM—
18.3TFC—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2018-08-22T21:45:55-07:00
