Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 22, 2018, 09:09 PM

  • 02 0716_02 0715_22082018_222944.mp4

Date
08/22/2018
W/O
723869
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00294
PipeID
P03267
Time
2:09 PM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6056
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
Downey
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Routine Assessment
Project
WO_723869_TV02264_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0716
Downstream MH
02 0715
Dir. of Survey
Downstream
Length Surveyed
234.7 ft.
Total Length
234.7 ft.
Structural Index
3
Structural Quick
3B00
Structural Rating
48
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
52
Pipe schematic from manhole 02 0716 to 02 0715
MH: 02 0716MH: 02 0715downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - ROACHES IN MH0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 02 071633.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"36.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"46.7 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES49.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Start88.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Finish112.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Start145.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Finish151.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"154.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"234.7 ft. MGO - General Observation - CAPPED LATERAL12 O'CLOCK @ MH234.7 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK234.7 ft. AMH - Downstream Manhole, Survey Ends - 02 0715234.7 ft. MGO - General Observation - ROACHES IN MH

Observation photos (3)

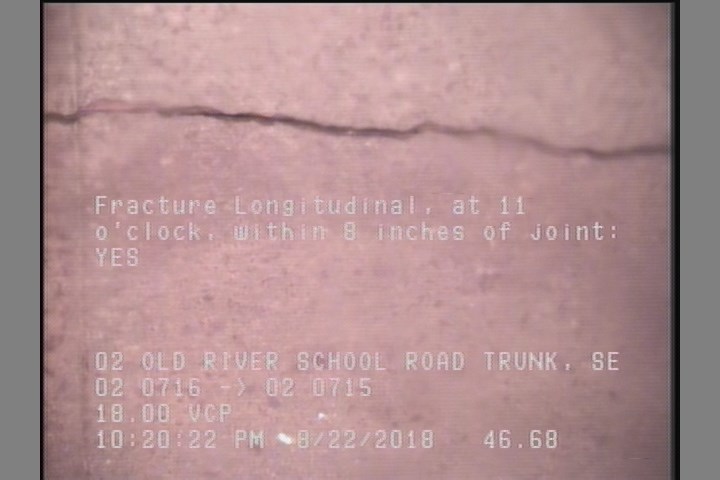

  • Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    46.7 ft. - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES

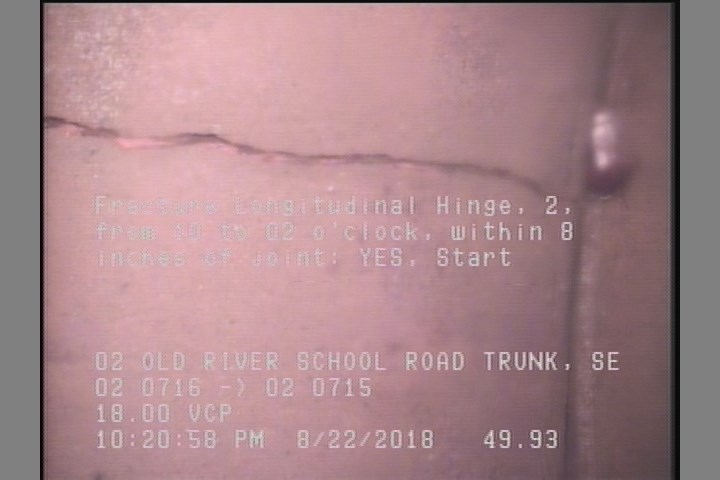

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Start

    49.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Start

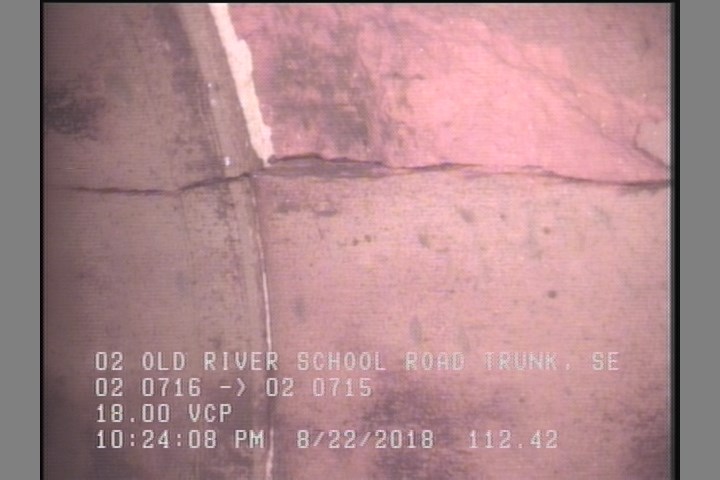

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Start

    112.4 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Start

All inspections of P03267Work order 723869

Observations (18)

DistanceCodeObservation
151.4TFC—
145.9FL—
234.7MGOCAPPED LATERAL12 O'CLOCK @ MH
36.4TFC—
234.7MGOCONNECTION AT MH 9 O'CLOCK
88.8FL—
0MWM—
234.7AMH02 0715
46.7FL—
234.7MGOROACHES IN MH
112.4FL—
0MGOROACHES IN MH
0MWL—
154.4TFC—
0MGOCONNECTION AT MH 9 O'CLOCK
33.3TFC—
49.9FL—
0AMH02 0716

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2018-08-22T14:09:48-07:00
