Wastewater/Activity/PacpInspection/1.0Sep 4, 2018, 11:50 AM
Section#4_08 0464_08 0463__942018__I0060.mp4
- Date
- 09/04/2018
- W/O
- 0717855
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00026
- PipeID
- P00520
- Time
- 4:50 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0060
- Sewer Name
- 08 216TH STREET TRUNK
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180904MDM_216TH_STREET_TRUNK
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 08 0464
- Downstream MH
- 08 0463
- Dir. of Survey
- Downstream
- Length Surveyed
- 245.4 ft.
- Total Length
- 245.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (5)

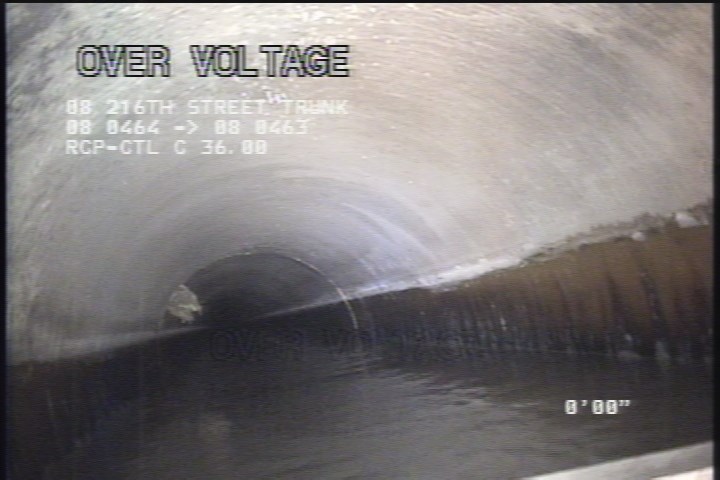

2 ft. - Lining Change, Other (enter details in Field 39) - HOBAS PIPE LINER START

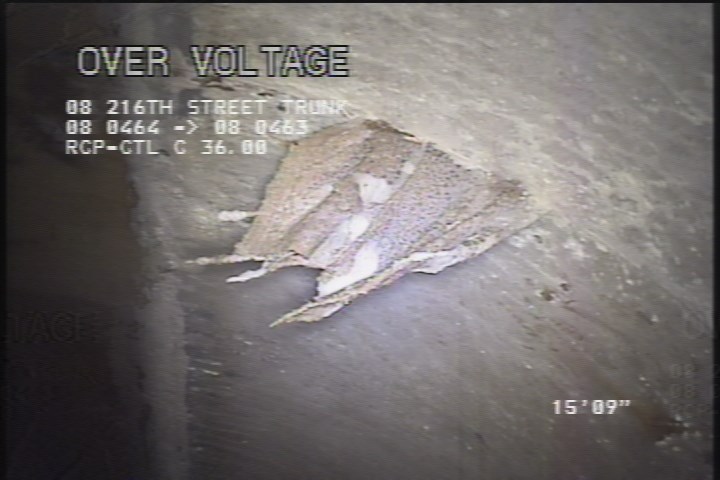

15.7 ft. - General Observation - PROTRUDING LINER MATERIAL 10:00

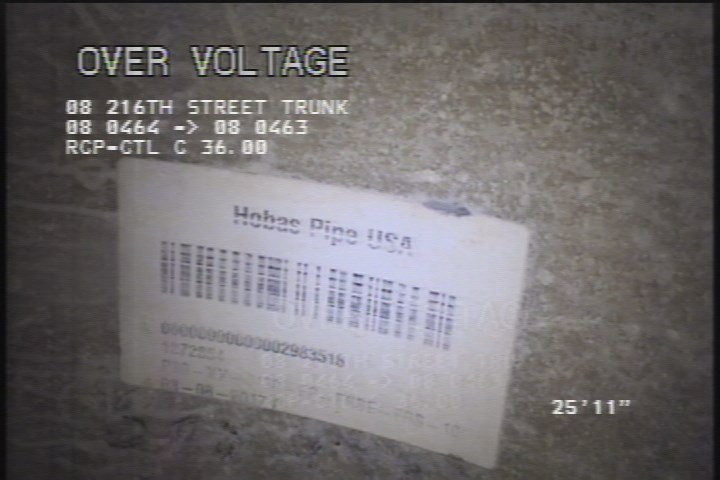

25.9 ft. - General Photograph

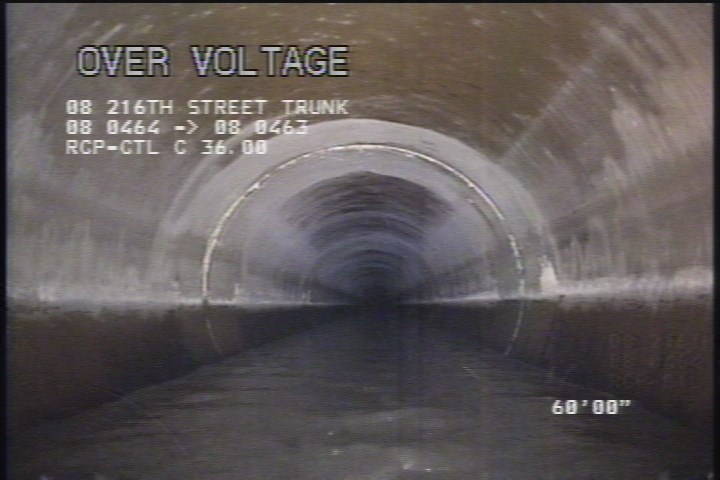

42.5 ft. - Water Mark, 20 %of cross sectional area

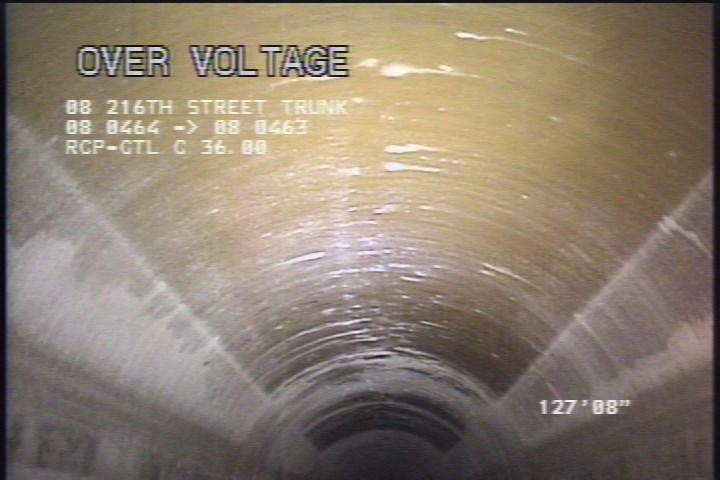

127.7 ft. - General Observation - HOBAS PIPE LINER
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 25.9 | MGP | — |
| 0 | MWL | — |
| 127.7 | MGO | HOBAS PIPE LINER |
| 0 | MGO | MH CONN 6:00 ACTIVE |
| 0 | MGO | MH CONN 9:00 STUB |
| 42.5 | MWM | — |
| 2 | MLC | HOBAS PIPE LINER START |
| 0 | AMH | 4:50AM |
| 233.9 | TB | ACTIVE |
| 0 | MWL | — |
| 15.7 | MGO | PROTRUDING LINER MATERIAL 10:00 |
| 42.5 | MWL | — |
| 245.4 | AMH | 5:10AM |
Properties (4)
- custom_field_three
- HOBAS PIPE LINER
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-09-04T04:50:00-07:00
