Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 16, 2018, 06:16 PM

  • Section#1_18 0558_18 0557__8162018__I0053.mp4

Date
08/16/2018
W/O
0723445
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00685
PipeID
P14407
Time
11:16 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0053
Sewer Name
18 LA MIRADA RELIEF TRUNK
City
SANTE FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
31
Purpose
Maintenance Related
Project
20180816DF_LA_MIRADA_RELIEF_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
18 0558
Downstream MH
18 0557
Dir. of Survey
Downstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 0558 to 18 0557
MH: 18 0558MH: 18 0557downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:45 AM0.1 ft. MWL - Water Level, 0 %of cross sectional area0.1 ft. MWM - Water Mark, 0 %of cross sectional area0.1 ft. MGO - General Observation - CONN 1 O'CLOCK @ MH2 ft. MGO - General Observation - MH 557 BULK HEADED (ZOOMED)2 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. MGP - General Photograph - DEBRIS/SLUDGE2 ft. AMH - Downstream Manhole, Survey Ends - 12:17 PM2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 80% MAG COAT

Observation photos (5)

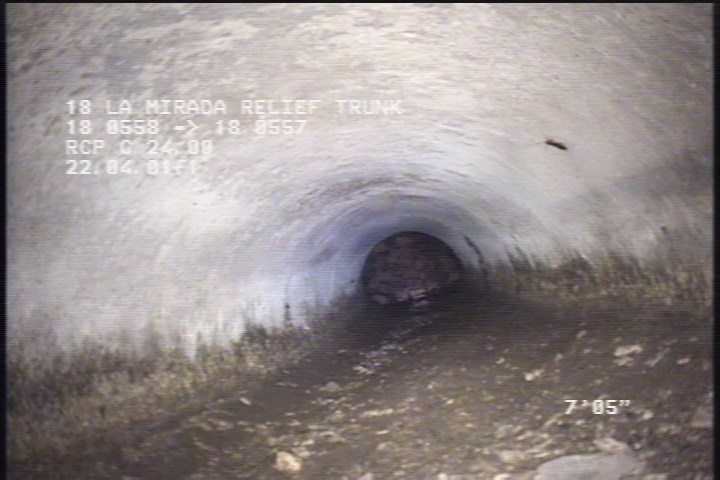

  • General Observation - CONN 1 O'CLOCK @ MH

    0.1 ft. - General Observation - CONN 1 O'CLOCK @ MH

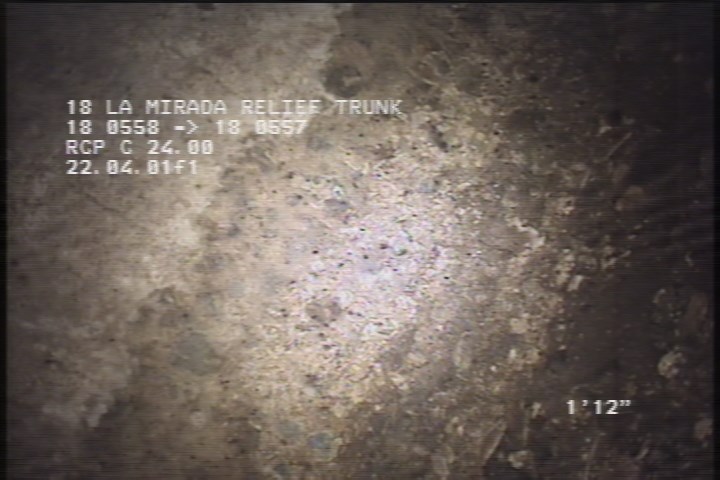

  • Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES

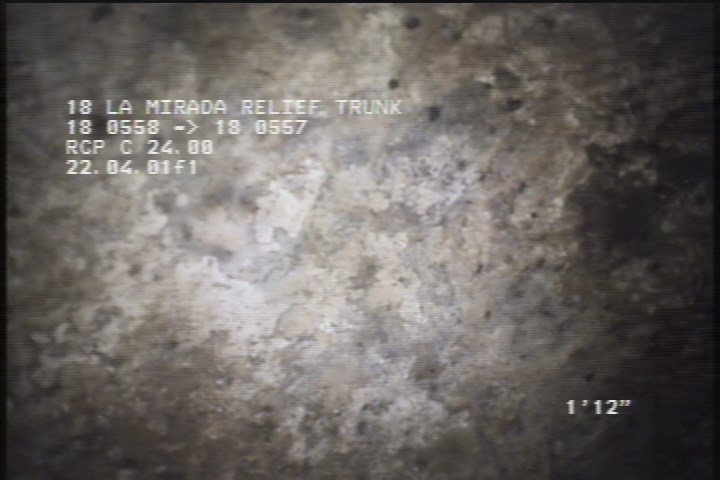

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

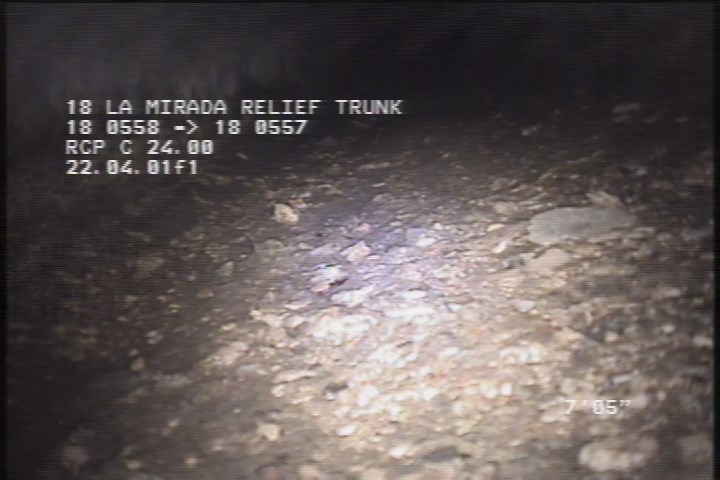

  • General Photograph - DEBRIS/SLUDGE

    2 ft. - General Photograph - DEBRIS/SLUDGE

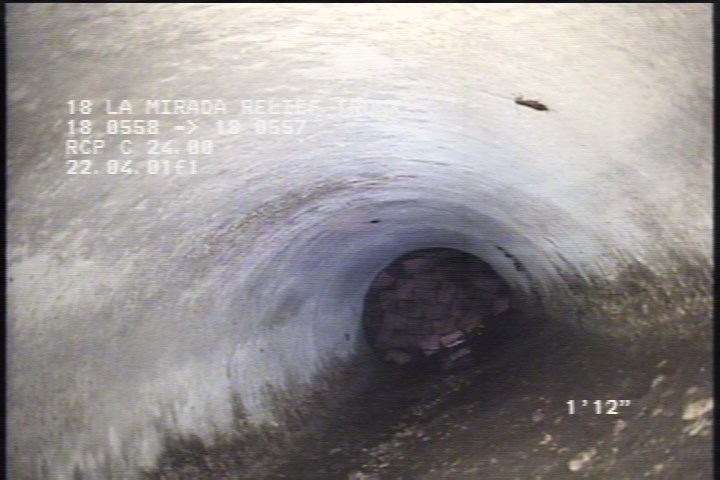

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 80% MAG COAT

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 80% MAG COAT

All inspections of P14407Work order 0723445

Observations (10)

DistanceCodeObservation
2MGOMH 557 BULK HEADED (ZOOMED)
2SAVC—
2SSS—
0AMH11:45 AM
2MGPDEBRIS/SLUDGE
0.1MWL—
0.1MWM—
2AMH12:17 PM
2SZ80% MAG COAT
0.1MGOCONN 1 O'CLOCK @ MH

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2018-08-16T11:16:56-07:00
