Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 21, 2017, 07:27 PM

  • 15 1037_15 1036 _03132017_042810.mp4

Date
02/21/2017
W/O
624546
Weather
Very Dry
Operator/Surveyor
JUAN B`
Sewer ID
Z00626
PipeID
P12798
Time
11:27 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
4319
Sewer Name
15 RUSH STREET TRUNK
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_624546_TV15125_MAR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 1037
Downstream MH
15 1036
Dir. of Survey
Downstream
Length Surveyed
329.9 ft.
Total Length
329.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2L00
O&M Rating
130
Overall Index
2
Overall Quick
—
Overall Rating
130
Pipe schematic from manhole 15 1037 to 15 1036
MH: 15 1037MH: 15 1036downstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 10370 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area2.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start23.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"49.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"77.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"83.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"111.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"123.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"167.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"221.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4"241.5 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"311.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"329.9 ft. MGO - General Observation - CONNECTION AT 3 O CLOCK329.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish329.9 ft. AMH - Downstream Manhole, Survey Ends - 15 1036

Observation photos (1)

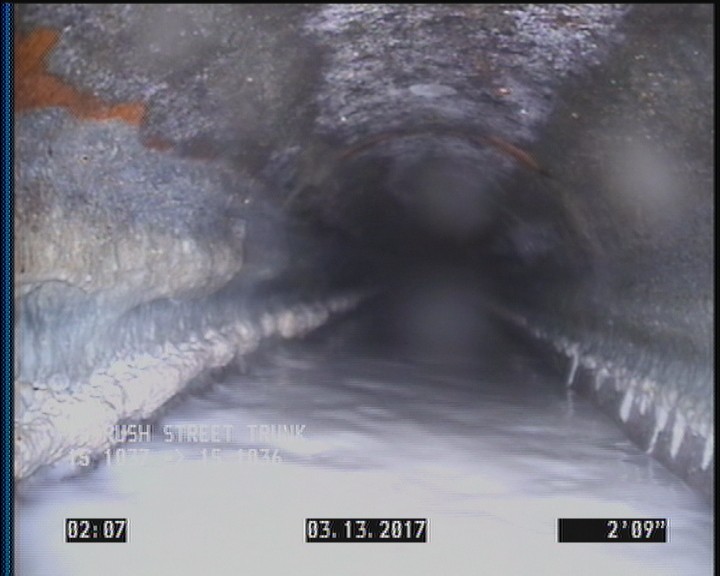

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P12798Work order 624546

Observations (17)

DistanceCodeObservation
329.9MGOCONNECTION AT 3 O CLOCK
329.9DAGS—
49.6TF—
23.9TF—
123.8TF—
77.8TF—
83.7TF—
0AMH15 1037
311.6TF—
0MWM—
167.4TF—
2.7DAGS—
221.4TF—
329.9AMH15 1036
0MWL—
241.5TF—
111.7TF—

Properties (5)

additional_info
SC318733
custom_field_two
4
customer
LACSD
datetime
2017-02-21T11:27:10-08:00
year_laid
31139
