Wastewater/Activity/PacpInspection/1.0Mar 27, 2017, 10:56 AM
18 0156_18 0155_20170327_053911.mp4
- Date
- 03/27/2017
- W/O
- 624437
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00695
- PipeID
- P13979
- Time
- 3:56 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- 4332
- Sewer Name
- 18 ORR AND DAY ROAD TRUNK
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_624437_TV18043_MAR2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 18 0155
- Downstream MH
- 18 0156
- Dir. of Survey
- Upstream
- Length Surveyed
- 389 ft.
- Total Length
- 389 ft.
- Structural Index
- 2
- Structural Quick
- 2N00
- Structural Rating
- 154
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 154
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 308
Observation photos (2)

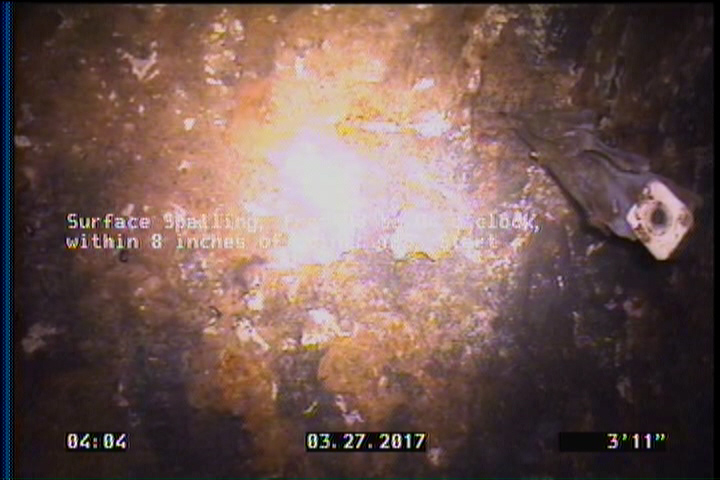

3.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

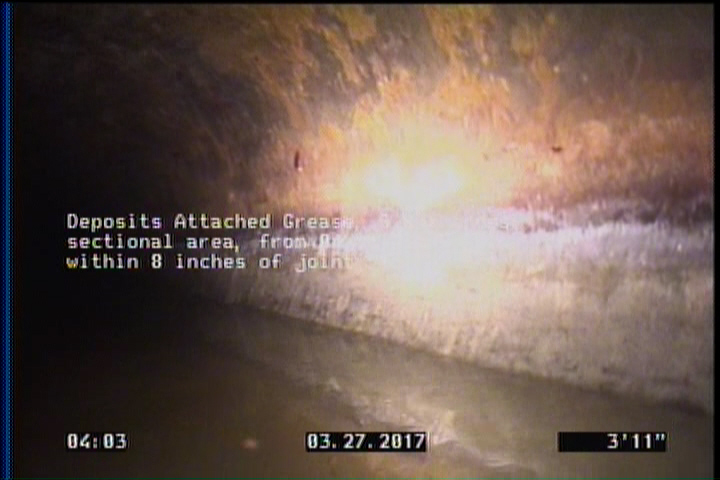

3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 389 | DAGS | — |
| 389 | SSS | — |
| 0 | MWM | — |
| 3.9 | SSS | — |
| 3.9 | DAGS | — |
| 0 | AMH | 18 0155 |
| 389 | AMH | 18 0156 |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC318747
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-03-27T03:56:31-07:00
