Wastewater/Activity/PacpInspection/1.0Mar 29, 2017, 07:34 AM
18 0147_18 0146 _20170329_023217.mp4
- Date
- 03/29/2017
- W/O
- 624437
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00695
- PipeID
- P13969
- Time
- 12:34 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- 4334
- Sewer Name
- 18 ORR AND DAY ROAD TRUNK
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- WO_624437_TV18043_MAR2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 18 0147
- Downstream MH
- 18 0146
- Dir. of Survey
- Downstream
- Length Surveyed
- 247 ft.
- Total Length
- 247 ft.
- Structural Index
- 2
- Structural Quick
- 2I00
- Structural Rating
- 98
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 98
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 196
Observation photos (2)

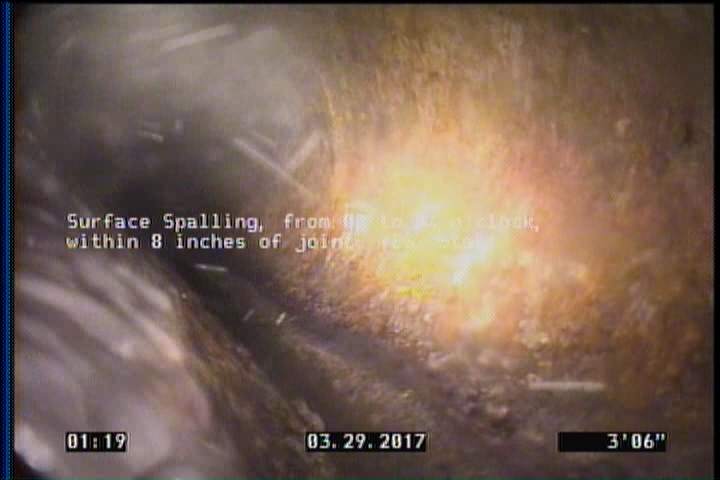

3.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

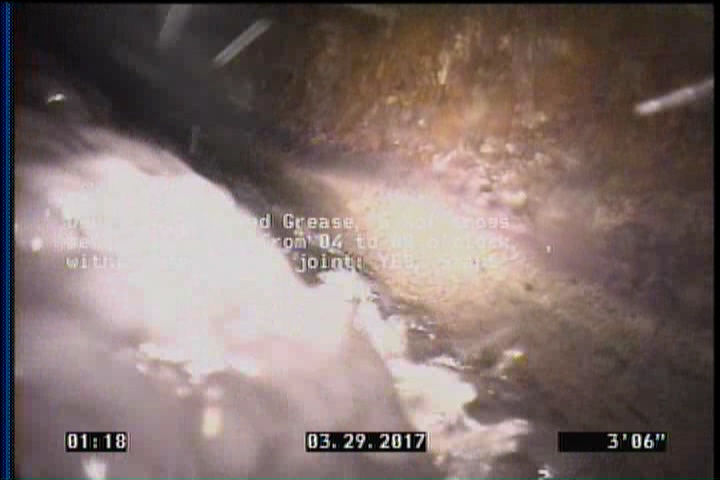

3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 3.5 | SSS | — |
| 160.3 | TF | — |
| 118.8 | TF | — |
| 247 | AMH | 18 0146 |
| 247 | SSS | — |
| 93 | TF | — |
| 247 | DAGS | — |
| 247 | MGO | CONNECTION AT 9 OC |
| 0 | MWM | — |
| 3.5 | DAGS | — |
| 0 | AMH | 18 0147 |
| 215.6 | TF | — |
Properties (4)
- additional_info
- SC318749
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-03-29T00:34:19-07:00
