Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 9, 2018, 04:48 AM

  • 02 1464_02 1463 _08082018_220853.mp4

Date
08/08/2018
W/O
718118
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00309
PipeID
P03908
Time
9:48 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5974
Sewer Name
02 UNION PACIFIC TRUNK
City
commerce
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
17
Purpose
Routine Assessment
Project
WO_718118_TV02355_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 1464
Downstream MH
02 1463
Dir. of Survey
Downstream
Length Surveyed
309.9 ft.
Total Length
309.9 ft.
Structural Index
2
Structural Quick
322G
Structural Rating
84
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
84
Pipe schematic from manhole 02 1464 to 02 1463
MH: 02 1464MH: 02 1463downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 02 14640 ft. MWM - Water Mark, 15 %of cross sectional area39.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start81.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"83.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"105.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"108.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"118.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES134.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"138 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"141.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish156 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"158.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"177.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"180.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"184.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start184.1 ft. CM - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES205.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"207.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"231.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"235.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"244.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish256.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"258.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"265.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start279.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"283.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"298.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish303.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"306.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"309.9 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK309.9 ft. AMH - Downstream Manhole, Survey Ends - 02 1463

Observation photos (5)

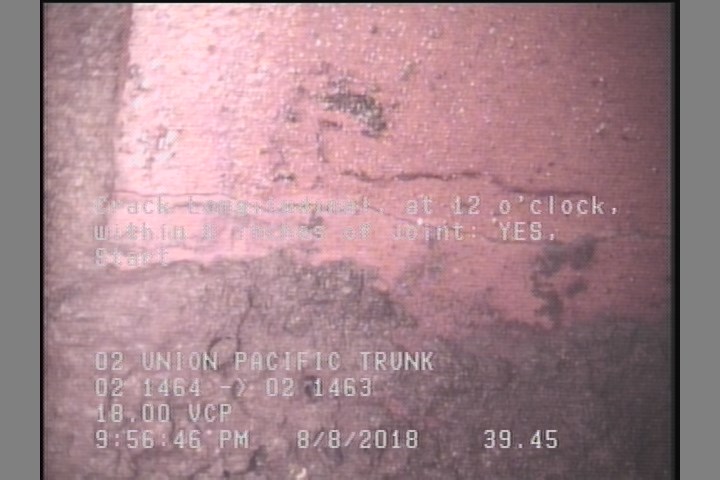

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    39.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

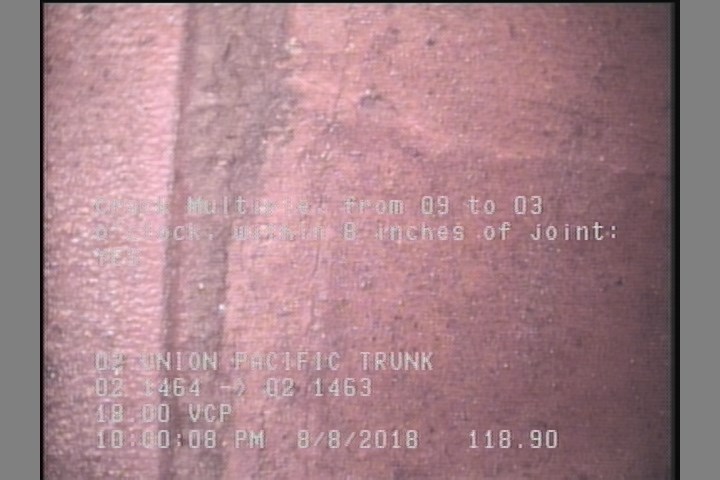

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    118.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    184.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

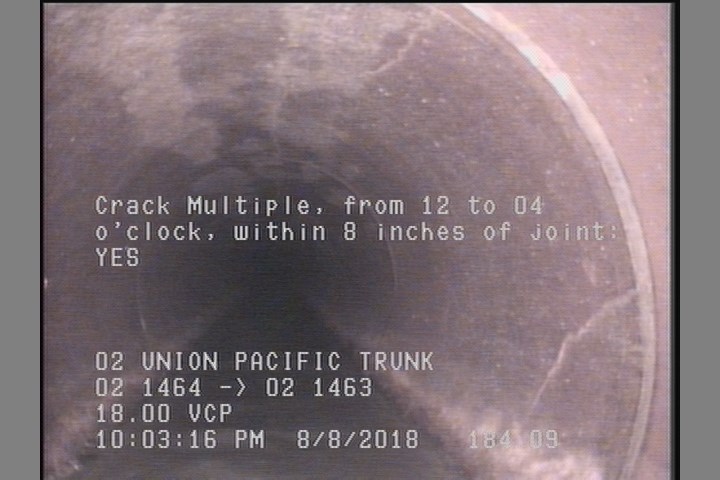

  • Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

    184.1 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

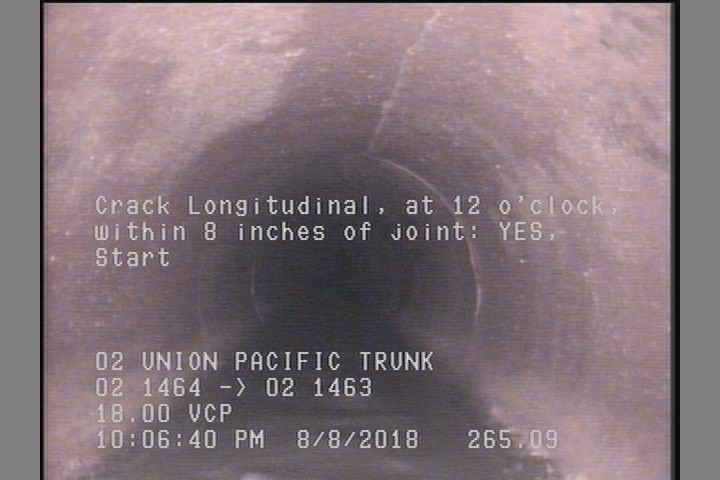

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    265.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P03908Work order 718118

Observations (34)

DistanceCodeObservation
265.1CL—
309.9MGOCONNECTION AT MH 3 O'CLOCK
207.9TFC—
156TFC—
0MWL—
81.3TFC—
298.2CL—
141.5CL—
108.1TFC—
0MGOCONNECTION AT MH 9 O'CLOCK
205.5TFC—
0AMH02 1464
258.3TFC—
231.6TFC—
306.6TFC—
39.5CL—
235.2TF—
105.5TFC—
184.1CL—
138TFC—
158.8TFC—
0MWM—
283.1TFC—
134.9TFC—
83.7TF—
256.2TFC—
303.5TFC—
309.9AMH02 1463
180.8TFC—
177.7TFC—
118.9CM—
279.3TF—
184.1CM—
244.9CL—

Properties (4)

additional_info
SC364738
custom_field_two
3
customer
LACSD
datetime
2018-08-08T21:48:47-07:00
