Wastewater/Activity/PacpInspection/1.0Aug 9, 2018, 10:02 AM
02 2003_02 2002 _09082018_030836.mp4
- Date
- 08/09/2018
- W/O
- 717849
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00260
- PipeID
- P04358
- Time
- 3:02 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5977
- Sewer Name
- 02 EAST COMPTON BOULEVARD RELIEF TRUNK #2
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_717849_TV02345_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 2003
- Downstream MH
- 02 2002
- Dir. of Survey
- Downstream
- Length Surveyed
- 52.9 ft.
- Total Length
- 52.9 ft.
- Structural Index
- 4
- Structural Quick
- 4722
- Structural Rating
- 32
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 32
Observation photos (4)

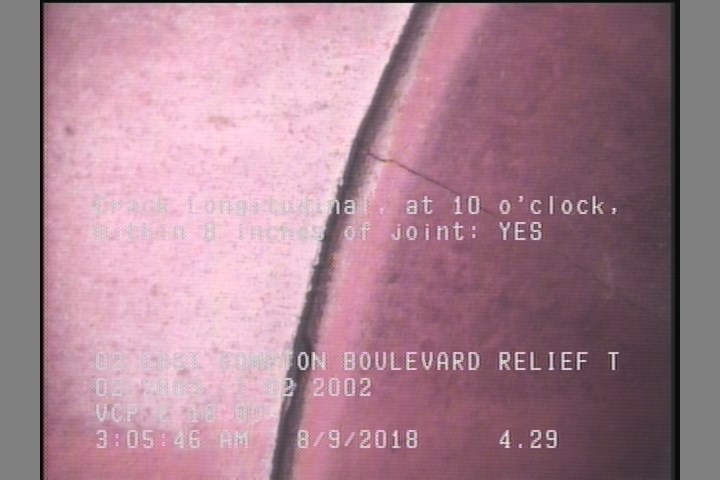

4.3 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

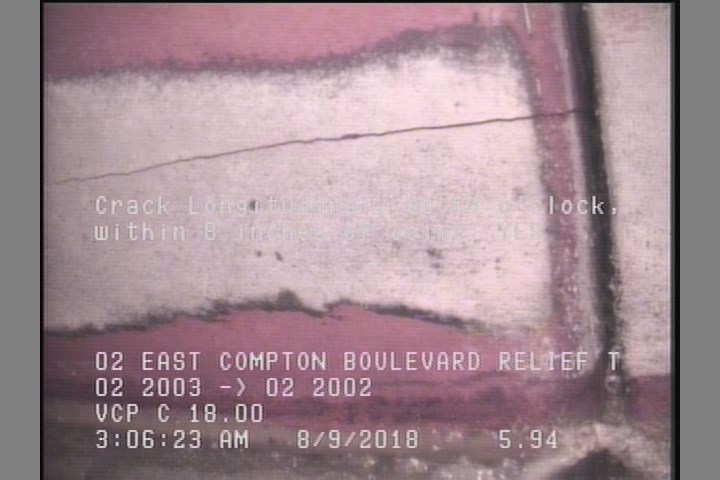

5.9 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

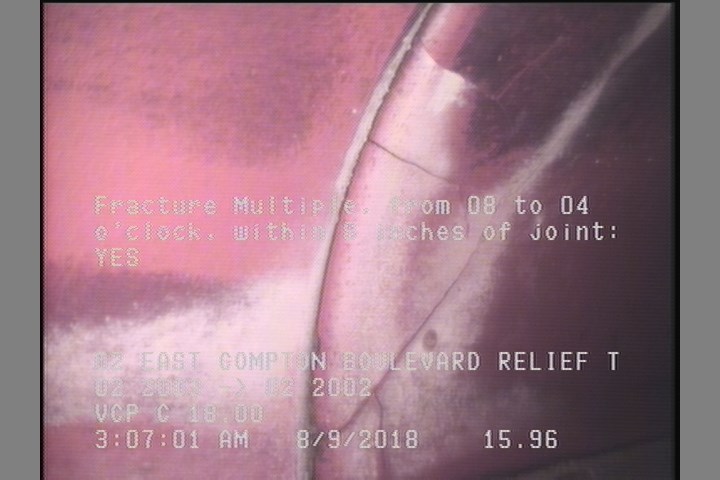

16 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

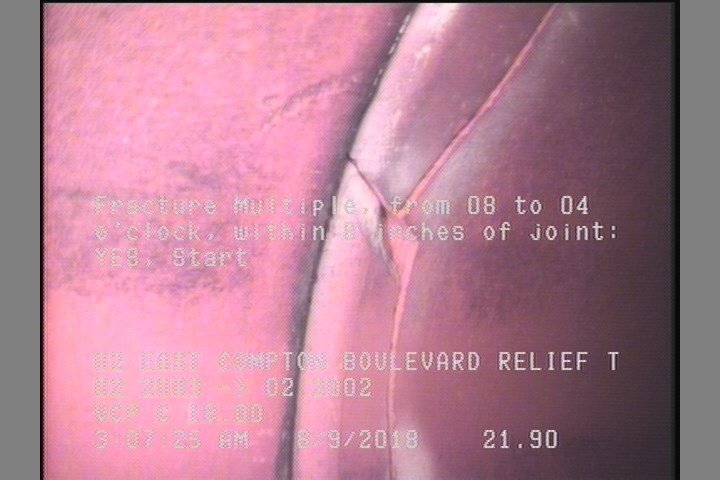

21.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 52.9 | FM | — |
| 5.9 | CL | — |
| 0 | MWM | — |
| 16 | FM | — |
| 4.3 | CL | — |
| 52.9 | AMH | 02 2002 |
| 21.9 | FM | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 02 2003 |
Properties (5)
- additional_info
- SC364741
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-09T03:02:31-07:00
- year_laid
- 27557
