Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 9, 2018, 09:22 AM

  • F 0099_F 0097_09082018_023619.mp4

Date
08/09/2018
W/O
717723
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00041
PipeID
P10229
Time
2:22 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5976
Sewer Name
F JOINT OUTFALL F - UNIT 5
City
NORWALK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
WO_717723_TV02408_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
F 0099
Downstream MH
F 0097
Dir. of Survey
Downstream
Length Surveyed
267.3 ft.
Total Length
267.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
312G
O&M Rating
83
Overall Index
2
Overall Quick
—
Overall Rating
86
Pipe schematic from manhole F 0099 to F 0097
MH: F 0099MH: F 0097downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - F 009922 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"27.4 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES32.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"32.1 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: YES71.4 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start85.8 ft. MGO - General Observation - VOID85.8 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN/ LARGE VOID134.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"192.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"216.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"263.9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish267.3 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK267.3 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK267.3 ft. AMH - Downstream Manhole, Survey Ends - F 0097

Observation photos (5)

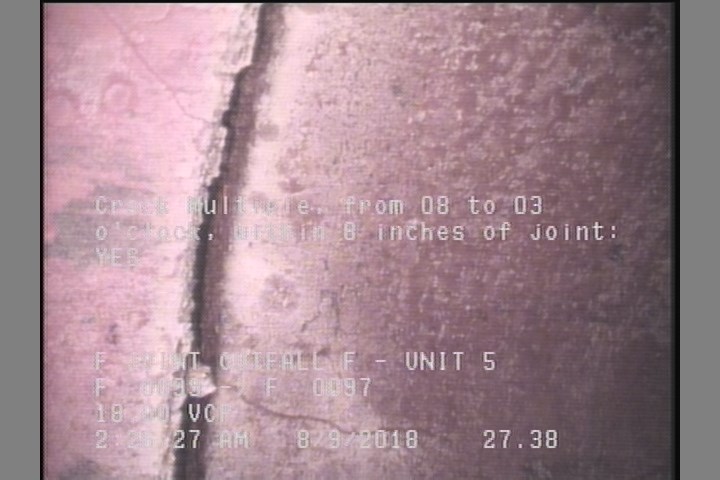

  • Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

    27.4 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

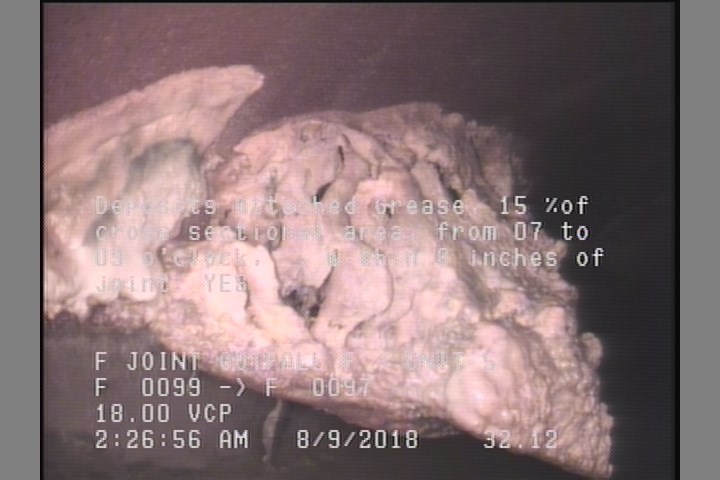

  • Deposits Attached Grease, 15 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: YES

    32.1 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: YES

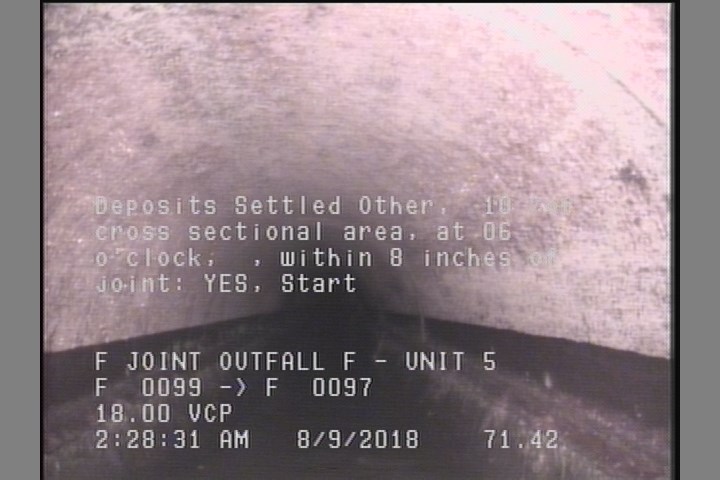

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    71.4 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

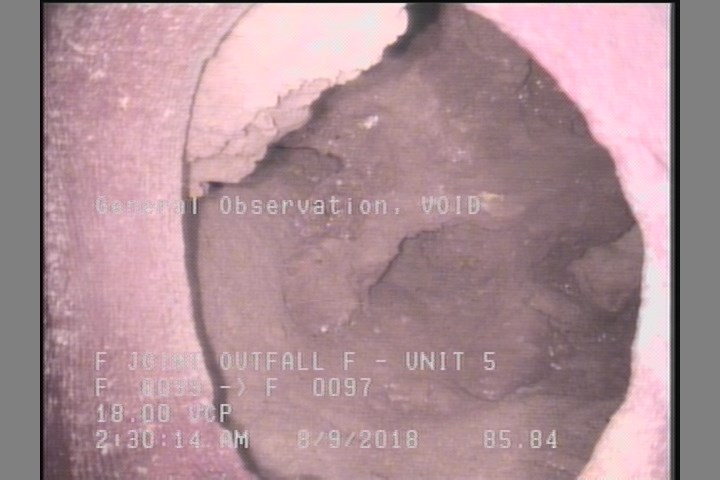

  • General Observation - VOID

    85.8 ft. - General Observation - VOID

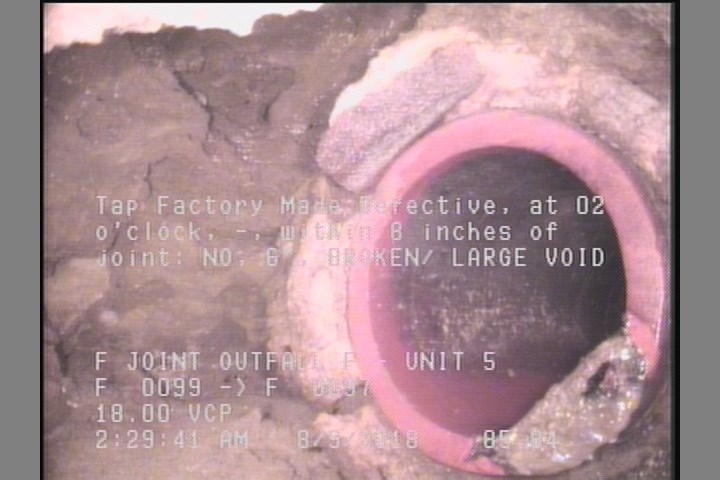

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN/ LARGE VOID

    85.8 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN/ LARGE VOID

All inspections of P10229Work order 717723

Observations (17)

DistanceCodeObservation
267.3MGOCONNECTION AT MH 6 O'CLOCK
32.1TB—
0MWM—
134.8TFC—
0MWL—
32.1DAGS—
216.7TFC—
22TB—
263.9DSZ—
85.8MGOVOID
27.4CM—
192.1TFC—
267.3MGOCONNECTION AT MH 3 O'CLOCK
267.3AMHF 0097
85.8TFDBROKEN/ LARGE VOID
0AMHF 0099
71.4DSZ—

Properties (4)

additional_info
SC364740
custom_field_two
3
customer
LACSD
datetime
2018-08-09T02:22:17-07:00
