Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 2, 2018, 10:47 AM

  • 01 0248_01 0247_02082018_035815.mp4

Date
08/02/2018
W/O
717715
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00218
PipeID
P01293
Time
3:47 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5963
Sewer Name
01 SOUTH PARK AVENUE TRUNK
City
LOS ANGELES
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_717715_TV01205_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0248
Downstream MH
01 0247
Dir. of Survey
Downstream
Length Surveyed
210.4 ft.
Total Length
210.4 ft.
Structural Index
3
Structural Quick
4B3D
Structural Rating
131
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
131
Pipe schematic from manhole 01 0248 to 01 0247
MH: 01 0248MH: 01 0247downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 02483.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO8.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"14.2 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES26.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start139.2 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES145.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start145.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish210.4 ft. AMH - Downstream Manhole, Survey Ends - 01 0247210.4 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH210.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

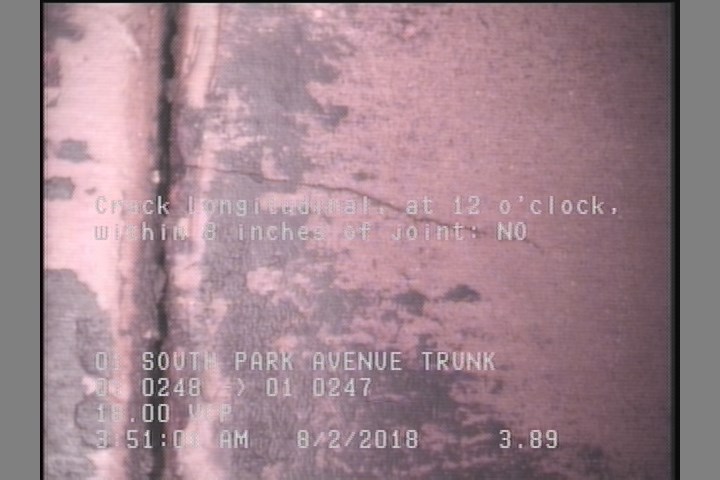

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO

    3.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO

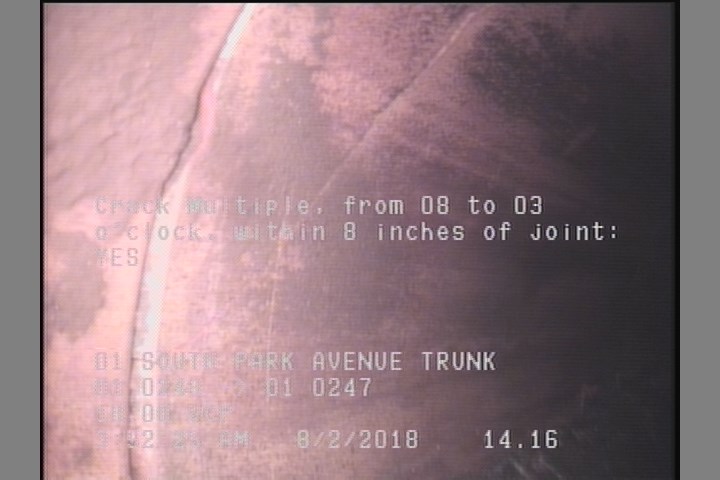

  • Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

    14.2 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

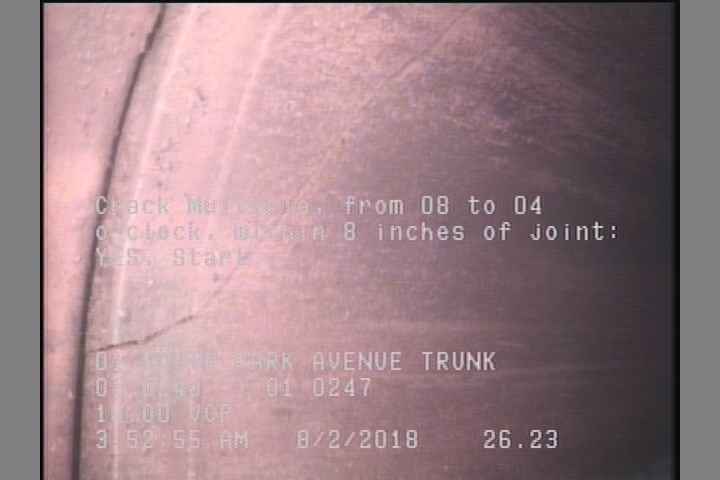

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    26.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES

    139.2 ft. - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES

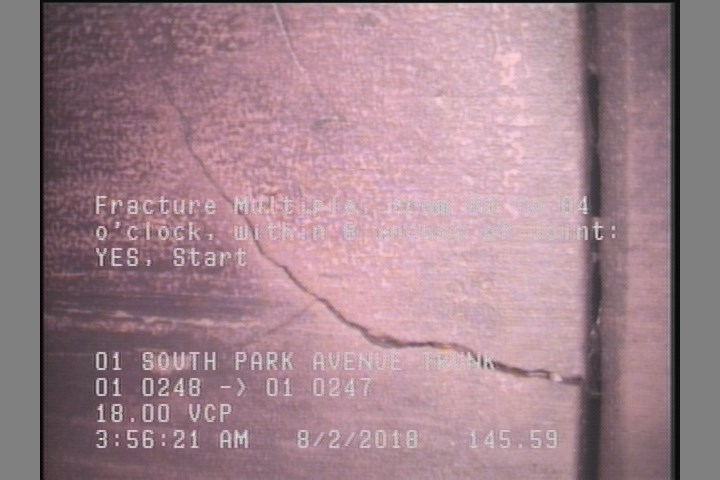

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    145.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01293Work order 717715

Observations (14)

DistanceCodeObservation
26.2CM—
0MGOCONNECTION AT MH 9 O'CLOCK
145.6FM—
0MWM—
210.4AMH01 0247
8.4TF—
139.2FC—
3.9CL—
14.2CM—
210.4MGOCAPPED LATERAL 9 O'CLOCK @ MH
145.6CM—
210.4FM—
0MWL—
0AMH01 0248

Properties (4)

additional_info
SC364726
custom_field_two
3
customer
LACSD
datetime
2018-08-02T03:47:37-07:00
