Wastewater/Activity/PacpInspection/1.0Aug 6, 2018, 08:02 AM
01 0257_01 0256_06082018_011037.mp4
- Date
- 08/06/2018
- W/O
- 717715
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00218
- PipeID
- P02156
- Time
- 1:02 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5966
- Sewer Name
- 01 SOUTH PARK AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_717715_TV01205_AUG2018
- Sewer Type
- Siphon
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 0256
- Downstream MH
- 01 0257
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

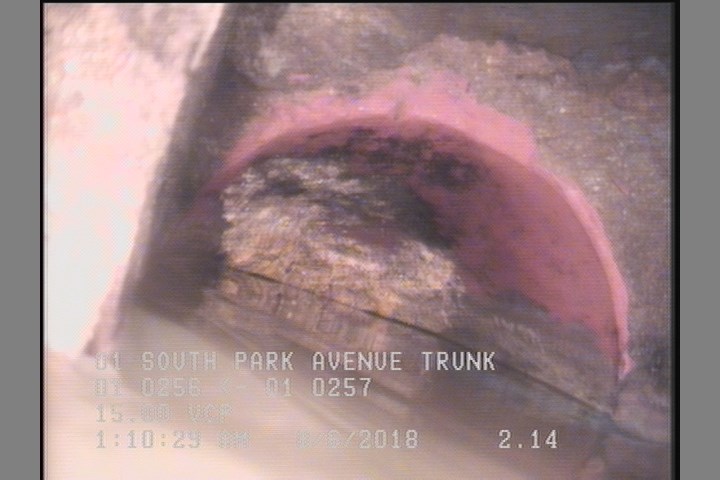

2.1 ft. - Survey Abandoned - UP LEG OF THE D/S SIPHON

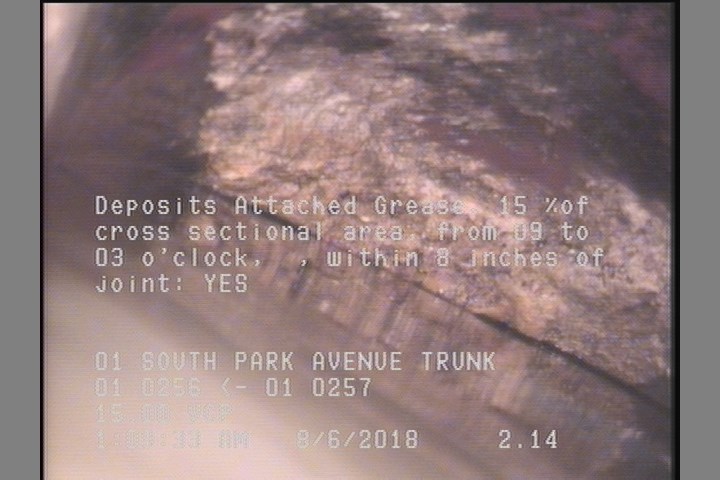

2.1 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | UP LEG OF THE D/S SIPHON |
| 0 | MWL | — |
| 0 | MWM | — |
| 2.1 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 01 0256 |
Properties (4)
- additional_info
- SC364729
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-08-06T01:02:01-07:00
