Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 24, 2018, 11:14 AM

  • B 0612_B 0611_24072018_042730.mp4

Date
07/24/2018
W/O
718359
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00105
PipeID
P09184
Time
4:14 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5879
Sewer Name
B JOINT OUTFALL B - UNIT 8B
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
16
Purpose
Routine Assessment
Project
WO_718359_TV15227_AUG2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
B 0612
Downstream MH
B 0611
Dir. of Survey
Downstream
Length Surveyed
370.2 ft.
Total Length
370.2 ft.
Structural Index
2
Structural Quick
3D2M
Structural Rating
210
O&M Index
2
O&M Quick
2X00
O&M Rating
246
Overall Index
2
Overall Quick
—
Overall Rating
456
Pipe schematic from manhole B 0612 to B 0611
MH: B 0612MH: B 0611downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 06122 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start26.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start125 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS149.7 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"249.5 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start270.6 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"343.7 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"370.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish370.1 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish370.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish370.1 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish370.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK370.2 ft. MGO - General Observation - ROACHES IN MH370.2 ft. AMH - Downstream Manhole, Survey Ends - B 0611

Observation photos (4)

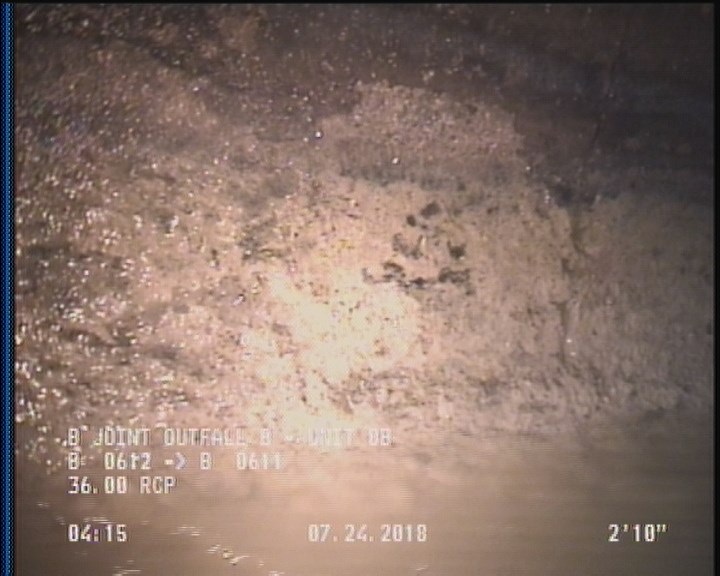

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

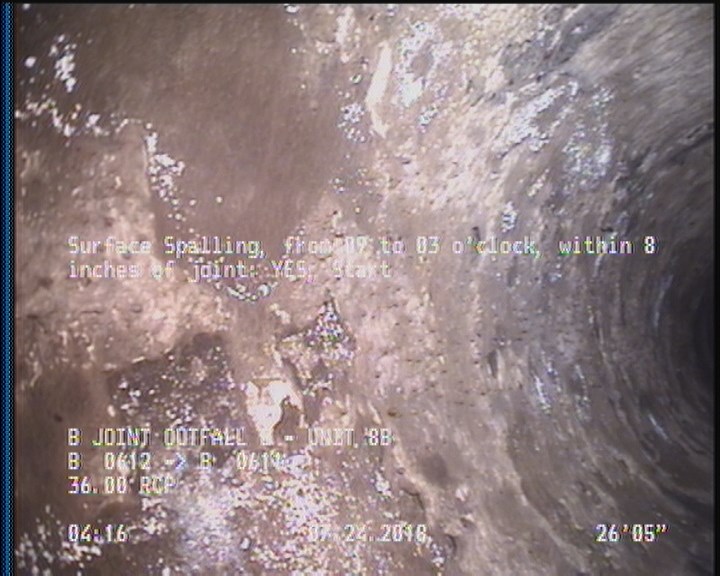

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    26.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

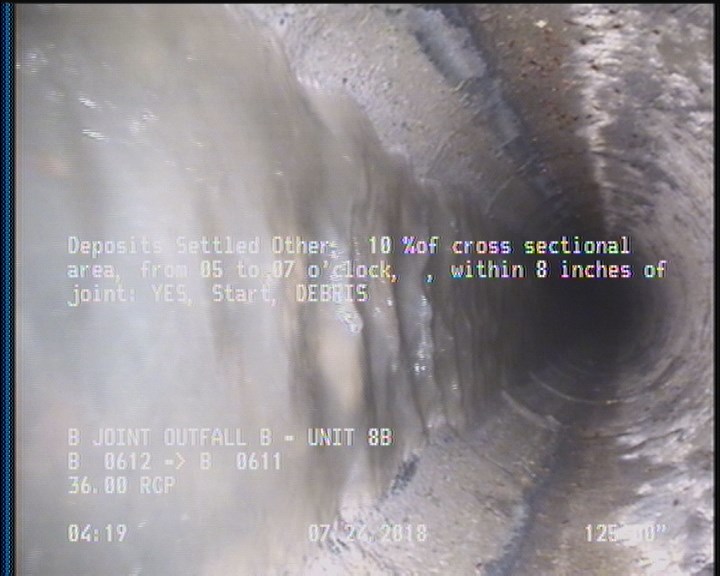

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

    125 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

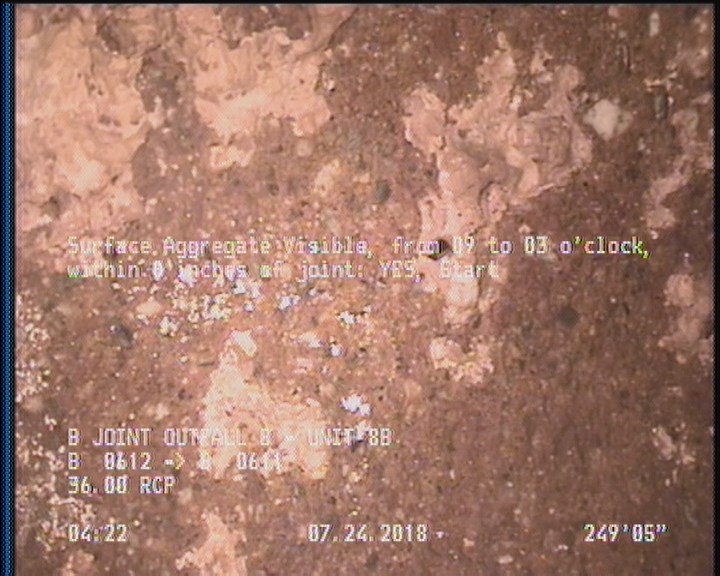

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    249.5 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P09184Work order 718359

Observations (17)

DistanceCodeObservation
370.1DSZ—
2DAGS—
0MWL—
270.6TBA—
125DSZDEBRIS
26.4SSS—
0MWM—
249.5SAV—
343.7TBA—
370.2MGOACTIVE CONNECTION AT MH 3 O'CLOCK
370.1SAV—
0AMHB 0612
370.2MGOROACHES IN MH
149.7TBA—
370.2AMHB 0611
370.1DAGS—
370.1SSS—

Properties (4)

additional_info
SC359747
custom_field_two
2
customer
LACSD
datetime
2018-07-24T04:14:18-07:00
