Wastewater/Activity/PacpInspection/1.0Jul 24, 2018, 11:02 AM
B 0613_B 0612 _24072018_041409.mp4
- Date
- 07/24/2018
- W/O
- 718359
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00105
- PipeID
- P09185
- Time
- 4:02 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5879
- Sewer Name
- B JOINT OUTFALL B - UNIT 8B
- City
- TEMPLE CITY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_718359_TV15227_AUG2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 0613
- Downstream MH
- B 0612
- Dir. of Survey
- Downstream
- Length Surveyed
- 370 ft.
- Total Length
- 370 ft.
- Structural Index
- 3
- Structural Quick
- 3N2F
- Structural Rating
- 291
- O&M Index
- 2
- O&M Quick
- 312N
- O&M Rating
- 149
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 440
Observation photos (3)

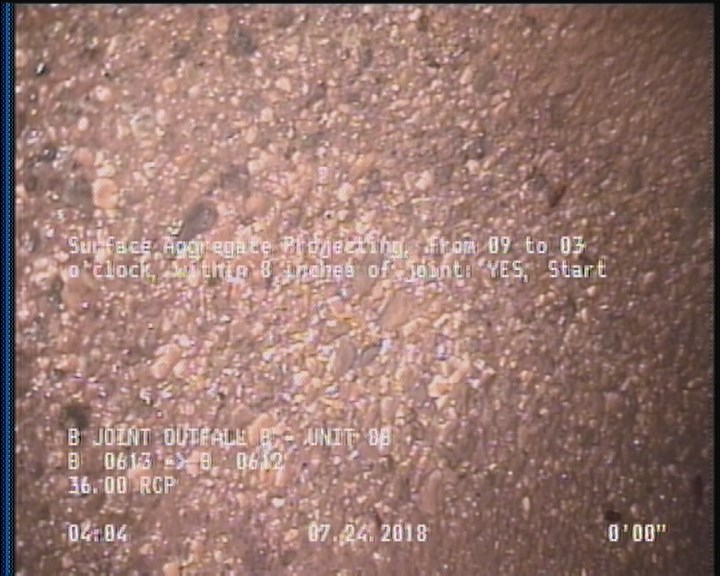

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

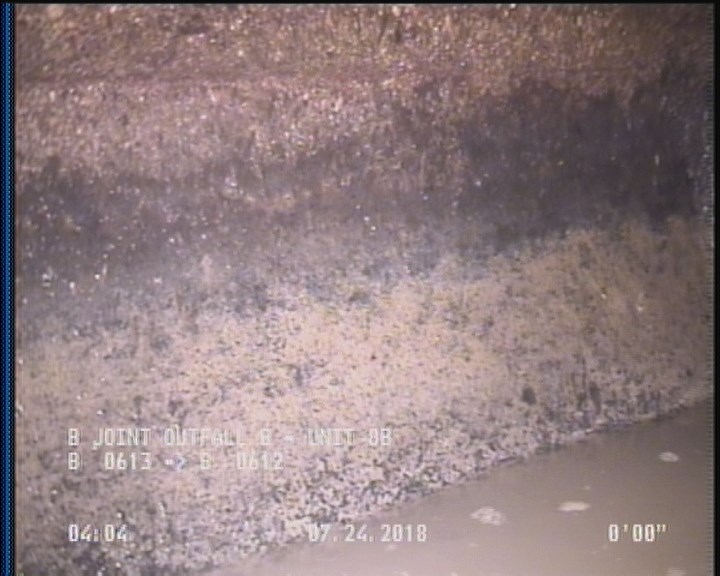

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

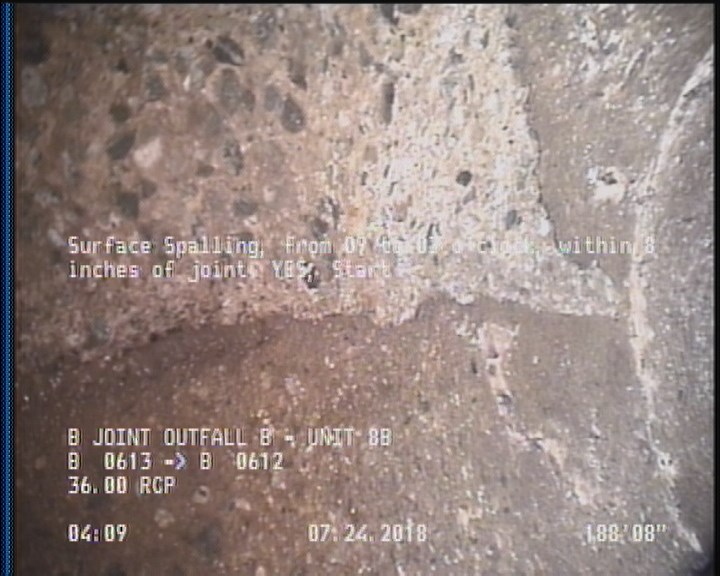

188.7 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAP | — |
| 368.5 | DAGS | — |
| 0 | MWM | — |
| 163.4 | TBA | — |
| 13.4 | DSZ | DEBRIS |
| 370 | MGO | ROACHES IN MH |
| 0 | AMH | B 0613 |
| 370 | AMH | B 0612 |
| 368.5 | SAP | — |
| 0 | MWL | — |
| 188.7 | SSS | — |
| 368.5 | SSS | — |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC359747
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-24T04:02:51-07:00
