Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 9, 2018, 08:39 AM

  • 18 0658_18 0657 _09082018_014936.mp4

Date
08/09/2018
W/O
718121
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00696
PipeID
P14507
Time
1:39 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5975
Sewer Name
18 PHOEBE AVENUE TRUNK
City
LA MIRADA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
36
Purpose
Routine Assessment
Project
WO_718121_TV18169_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
18 0658
Downstream MH
18 0657
Dir. of Survey
Downstream
Length Surveyed
299.7 ft.
Total Length
299.7 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 18 0658 to 18 0657
MH: 18 0658MH: 18 0657downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 06586.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"12.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"102.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"107.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"131.2 ft. RPP - Repair Patch, from 08 to 08 o'clock, within 8 inches of joint: YES, Start155.6 ft. RPP - Repair Patch, from 08 to 08 o'clock, within 8 inches of joint: YES, Finish203.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"208.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"211.9 ft. FL - Fracture Longitudinal, at 07 o'clock, within 8 inches of joint: YES299.7 ft. AMH - Downstream Manhole, Survey Ends - 18 0657

Observation photos (2)

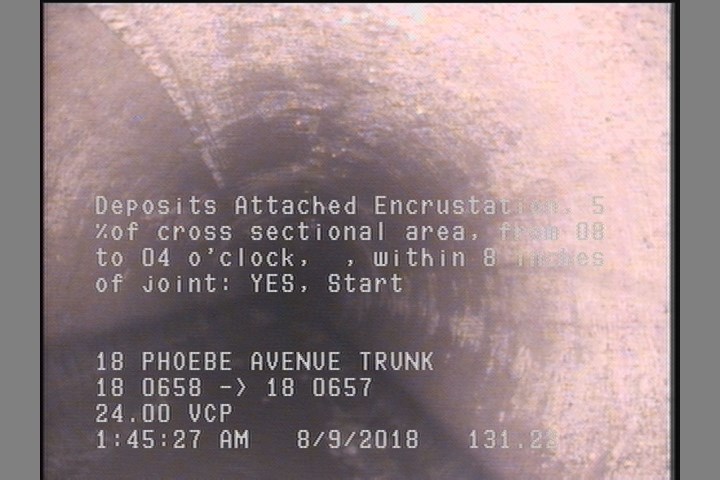

  • Repair Patch, from 08 to 08 o'clock, within 8 inches of joint: YES, Start

    131.2 ft. - Repair Patch, from 08 to 08 o'clock, within 8 inches of joint: YES, Start

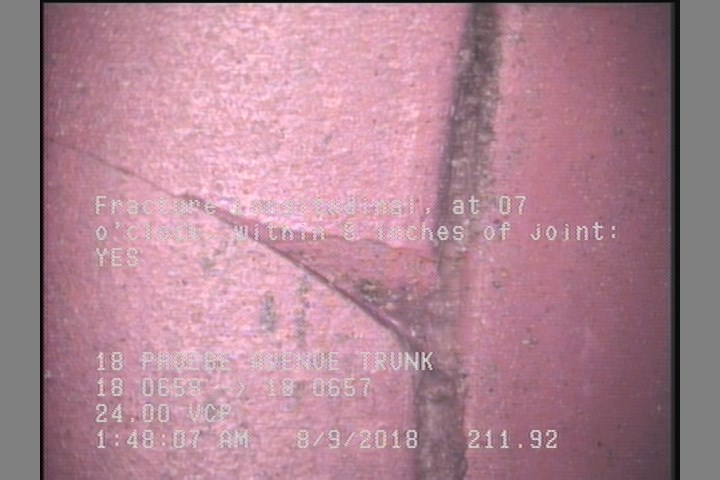

  • Fracture Longitudinal, at 07 o'clock, within 8 inches of joint: YES

    211.9 ft. - Fracture Longitudinal, at 07 o'clock, within 8 inches of joint: YES

All inspections of P14507Work order 718121

Observations (13)

DistanceCodeObservation
107.9TF—
211.9FL—
6.9TF—
0MWL—
0MWM—
102.7TFC—
0AMH18 0658
299.7AMH18 0657
131.2RPP—
208.7TFC—
203.3TFC—
155.6RPP—
12.1TFC—

Properties (4)

additional_info
SC364739
custom_field_two
3
customer
LACSD
datetime
2018-08-09T01:39:53-07:00
